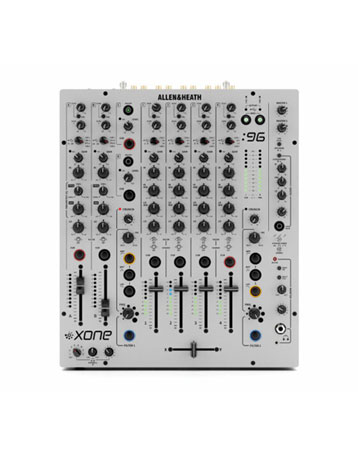

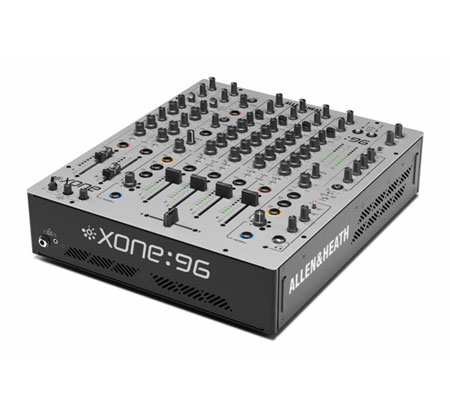

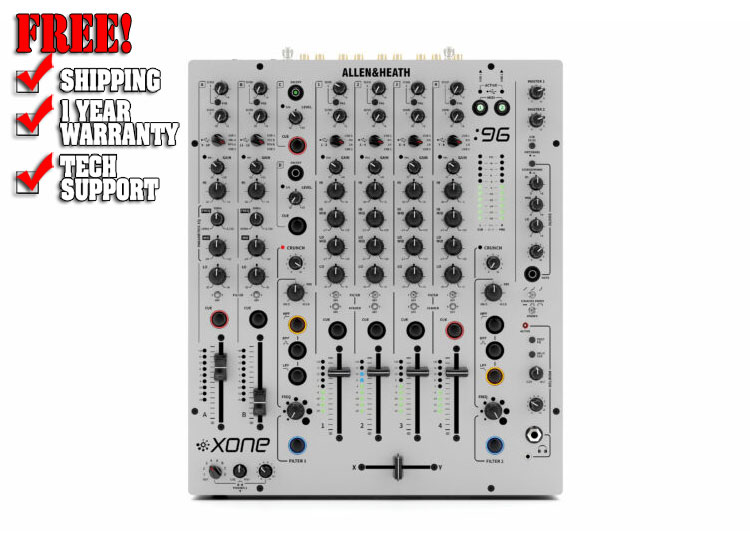

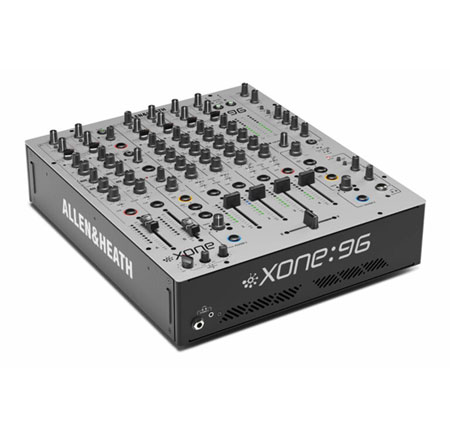

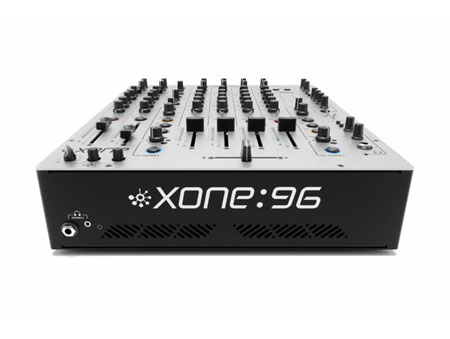

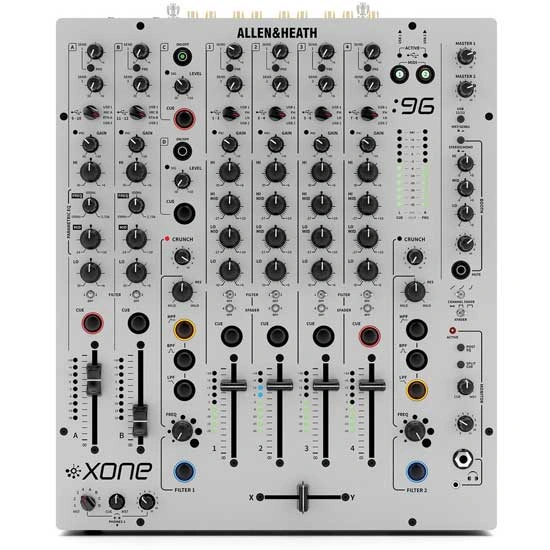

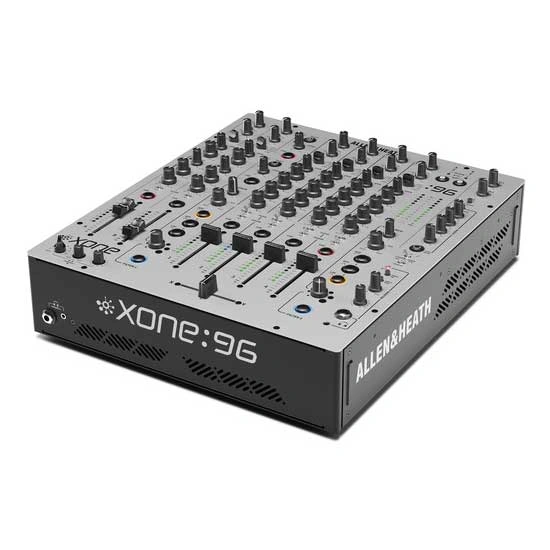

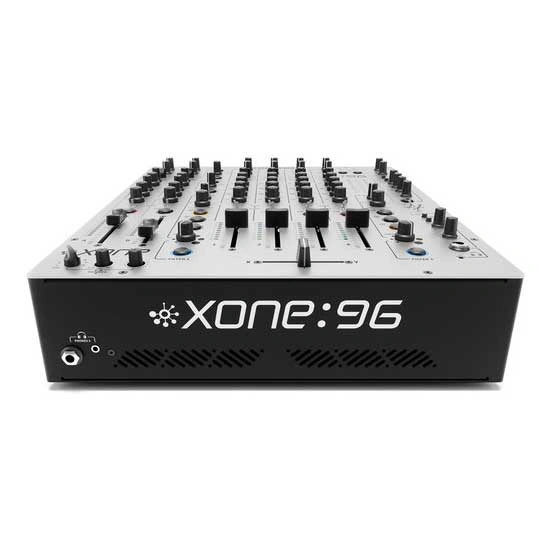

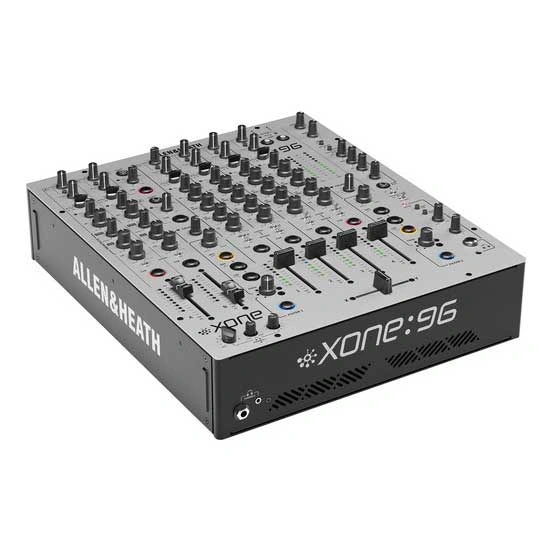

Allen & Heath Xone:96 Analog DJ Mixer with Audio Interface

Description:

The Allen & Heath Xone:96 is a professional 6+2 channel analogue DJ mixer designed for club DJs, touring performers, producers and demanding performance setups. Combining the legendary analogue sound of the Xone series with advanced digital connectivity, the Xone:96 provides powerful mixing, routing and performance capabilities for both traditional and computer-based DJ systems.

At the heart of the Xone:96 are four stereo input channels featuring Allen & Heath's precision 4-band EQ, giving DJs detailed control over their mixes. Two additional stereo channels feature a new 3-band parametric EQ, while two auxiliary stereo return channels provide additional flexibility for external effects and other equipment.

The mixer features dual Xone:VCF voltage-controlled filters with selectable high-pass, band-pass and low-pass response. Each filter includes adjustable frequency and resonance controls, along with CRUNCH, a controlled harmonic distortion effect that adds extra character and energy to the sound. The filters can be assigned to the main input channels for creative performance mixing.

For digital DJ setups, the Xone:96 includes two independent 24-channel USB soundcards, each providing 6 stereo inputs and 6 stereo outputs. Operating at 32-bit/96kHz, the integrated USB interfaces provide high-quality audio connectivity between the mixer, computers and DJ software. The soundcards also support DVS control and are Traktor Scratch certified.

The Xone:96 is designed for complex DJ performances and back-to-back sets. Two independent headphone cue systems allow two DJs to monitor independently, while dedicated booth outputs with 3-band EQ provide precise control over the monitoring system.

External effects and instruments can easily be integrated using the mixer's two stereo sends, four stereo returns and dedicated master insert. Send 1 can be switched between Line and Hi-Z level, making it suitable for connecting a wide range of external effects equipment, including guitar pedals and other instrument-level devices.

The Xone:96 also provides MIDI and X:Link connectivity for integrating controllers and external MIDI equipment. X:Link allows compatible Xone:K controllers to connect directly to the mixer, helping save USB ports on a computer.

Built for demanding professional use, the Xone:96 features custom-designed 60mm linear VCA channel faders and an Innofader Mini crossfader with adjustable curve settings. Its familiar Xone layout and robust construction make it a reliable centerpiece for club booths, touring rigs, studios and advanced DJ setups.

Whether you are mixing vinyl, CDJs, DVS, software decks, external effects or hybrid instruments, the Allen & Heath Xone:96 delivers a powerful combination of analogue sound, hands-on control and professional digital connectivity.

Allen & Heath Xone:96 Features

• 6+2 channel analogue DJ mixer
• Four stereo input channels with precision 4-band EQ
• Two stereo input channels with 3-band parametric EQ
• Two auxiliary stereo return channels
• Dual Xone:VCF voltage-controlled filters
• High-pass, band-pass and low-pass filter modes
• Adjustable filter frequency and resonance
• CRUNCH controlled harmonic distortion
• Dual independent 24-channel USB soundcards
• 32-bit/96kHz USB audio processing
• 6 stereo USB inputs and 6 stereo USB outputs per soundcard
• Traktor Scratch certified
• DVS support for compatible DJ software
• Two independent headphone cue systems
• Two dedicated stereo FX sends
• Four stereo return channels
• Dedicated master insert
• Send 1 switchable between Line and Hi-Z level
• MIDI input and output via USB and 5-pin DIN
• X:Link RJ45 connection for compatible Xone controllers
• Custom-designed 60mm linear VCA channel faders
• Innofader Mini crossfader
• Three crossfader curve settings
• Three channel fader curve settings
• Dedicated booth output with 3-band EQ
• Balanced Master 1 and Master 2 outputs
• Balanced booth output
• Unbalanced RCA record output
• Internal auto-sensing power supply

Allen & Heath Xone:96 Specifications

• Product Type: Analogue DJ Mixer
• Channels: 6 + 2
• EQ: 4-band EQ on Channels 1-4
• Parametric EQ: 3-band parametric EQ on Channels A and B
• USB Soundcards: 2 x 24-channel USB soundcards
• USB I/O: 12 inputs / 12 outputs per soundcard

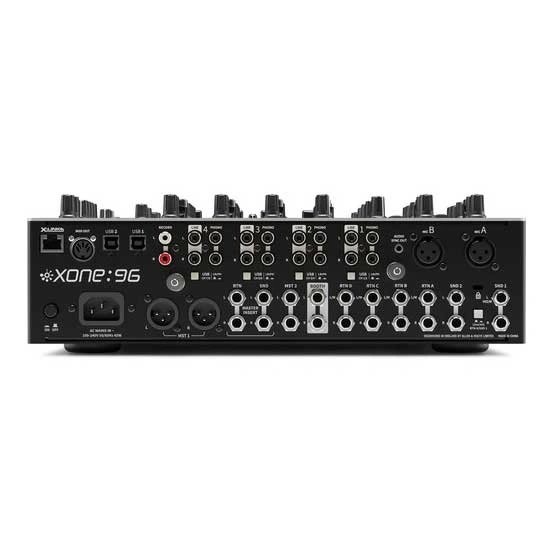

• USB Format: USB 2.0 Type-B
• USB Resolution: 32-bit / 96kHz
• USB MIDI: 2 x MIDI In and 2 x MIDI Out

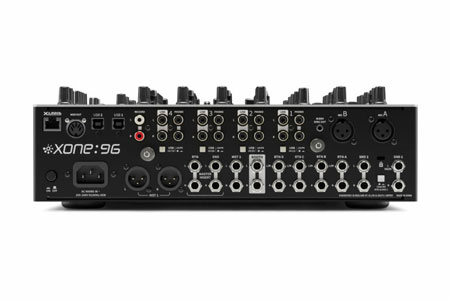

• Phono Inputs: 4 x RCA
• Line Inputs: 4 x RCA
• Stereo Return Inputs: 4 x 1/4-inch TRS
• Microphone Inputs: 2 x XLR
• Main Output 1: 1 x balanced XLR
• Main Output 2: 1 x balanced 1/4-inch TRS
• Booth Output: 1 x balanced 1/4-inch TRS
• Record Output: 1 x unbalanced RCA
• Master Insert: 2 x 1/4-inch TRS
• FX Sends: 2 x 1/4-inch TRS
• FX Returns: 4 x 1/4-inch TRS
• Xone:VCF Filters: 2 stereo analogue filters
• Filter Types: HPF / BPF / LPF
• Filter Controls: Frequency / Resonance / Crunch
• Channel Faders: 60mm linear VCA
• Crossfader: Innofader Mini
• Channel Fader Curves: 3 types
• Crossfader Curves: 3 types
• MIDI: MIDI CC and MIDI Note On/Off
• X-Link: RJ45 Ethernet
• Power Supply: Internal auto-sensing switch-mode power supply
• AC Input: 100-240V AC, 50/60Hz
• Maximum Power Consumption: 45W
• Dimensions: 336 x 410 x 109mm (W x D x H)
• Weight: 7kg

Most Popular Accessories & Related Items

<

Allen & Heath CQ-12T

$899.99

Allen & Heath CQ-18T

$1199.99

Allen & Heath CQ-20B

$999.99

Allen & Heath Qu-7

$3999.99

Allen & Heath Qu-7D

$4399.99

Allen & Heath Qu-6

$2999.99

Allen & Heath Qu-6D

$3399.99

Allen & Heath Qu-5

$2399.99

Allen & Heath Qu-5D

$2399.99

>

Allen & Heath Xone:96 FAQs

What is the Allen & Heath Xone:96?

The Allen & Heath Xone:96 is a professional 6+2 channel analogue DJ mixer designed for clubs, DJs, live performances, studios and advanced DJ setups.

How many channels does the Xone:96 have?

The Xone:96 has 6+2 channels, including four stereo channels with 4-band EQ, two stereo channels with 3-band parametric EQ and two auxiliary stereo return channels.

Does the Xone:96 have a USB soundcard?

Yes. The Xone:96 features two independent 24-channel USB soundcards with 32-bit/96kHz audio and 12 inputs and 12 outputs per soundcard.

Does the Xone:96 support DVS?

Yes. The Xone:96 supports DVS control with compatible DJ software and is Traktor Scratch certified.

Does the Xone:96 have built-in filters?

Yes. It features two Xone:VCF analogue filters with high-pass, band-pass and low-pass modes, adjustable frequency and resonance, plus CRUNCH harmonic distortion.

Does the Xone:96 have an effects loop?

Yes. The mixer provides two stereo sends, four stereo returns and a dedicated master insert for connecting external effects and other audio equipment.

What type of crossfader does the Xone:96 use?

The Xone:96 comes equipped with an Innofader Mini crossfader and provides three selectable crossfader curve settings.
