Allen & Heath CQ-12T 12-Channel Digital Mixer with Touchscreen

Description:

The Allen & Heath CQ-12T is an ultra-compact digital mixer designed for live bands, rehearsals, home recording, streaming, small gigs, speech applications, and corporate AV. Combining 96kHz digital audio processing, intuitive touchscreen control, powerful processing tools, and flexible connectivity, the CQ-12T delivers professional mixing capabilities in a compact and portable desktop format.

The CQ-12T provides 13 inputs to mix, including 10 mono/linkable channels and 3 stereo channels. Its analogue connectivity includes 5 XLR mic/line inputs, 5 XLR/TRS Combi mic/line inputs, and a dedicated stereo line input, providing flexible connections for microphones, instruments, playback devices, and other audio sources.

Designed to make mixing faster and easier, every input channel can operate in Quick Channel or Complete Channel mode. Quick Channel provides simplified, application-specific controls for fast setup, while Complete Channel gives experienced engineers detailed access to processing parameters. Gain Assistant helps quickly establish suitable input levels and continues monitoring during a performance, while Feedback Assistant can automatically identify and reduce problem frequencies using up to 16 filters per output.

For effects processing, the CQ-12T features two Multi-FX engines with high-quality reverb, delay, and modulation effects. Four DCAs allow multiple channels, outputs, and effects to be controlled from a single fader, while four Mute Groups make it easy to mute or unmute groups of channels simultaneously.

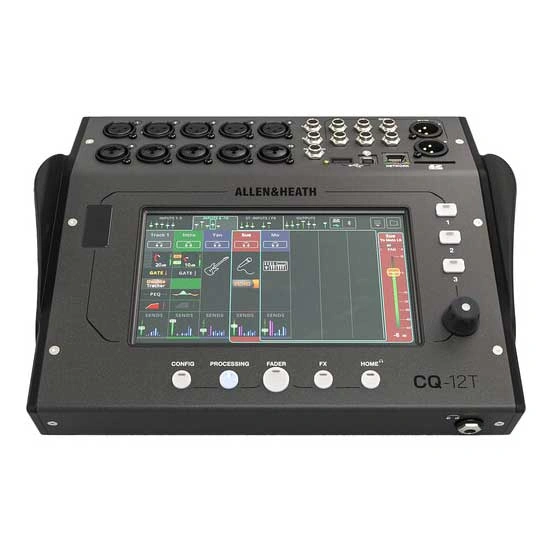

The CQ-12T features a 7-inch capacitive touchscreen with dedicated rotary control and three configurable SoftKeys for quick access to frequently used functions. The mixer can also be connected to a network and controlled remotely using the free CQ MixPad app for Windows, macOS, iOS, and Android devices.

Recording and playback are built into the CQ-12T. Its 16x16 USB-B audio interface supports multichannel recording, playback, and streaming at 48kHz or 96kHz, while the SD card slot provides multichannel recording and playback without requiring a computer. USB-A supports stereo recording and playback, and built-in Bluetooth provides convenient wireless stereo audio playback from compatible devices.

With two XLR Main outputs and six TRS monitor outputs, the CQ-12T provides flexible routing for front-of-house and monitor applications. An integrated Automatic Mic Mixer (AMM) is available across the input channels, making the mixer particularly useful for conferences, podcasts, presentations, debates, small theatre productions, and other speech-focused applications.

Compact, powerful, and easy to operate, the Allen & Heath CQ-12T is an excellent choice for musicians, DJs, performers, content creators, recording enthusiasts, and audio professionals who need professional digital mixing capabilities in a portable format.

Allen & Heath CQ-12T Features

• 13 inputs to mix with 10 mono/linkable and 3 stereo channels
• 96kHz input/output processing for high-quality digital audio
• 5 XLR mic/line inputs
• 5 XLR/TRS Combi mic/line inputs
• Stereo line input with 2 TRS connections
• 2 XLR Main outputs for stereo Main LR
• 6 TRS monitor outputs
• 2 Multi-FX engines with reverb, delay, and modulation effects
• Quick Channel mode for fast and simplified processing
• Complete Channel mode for detailed processing control
• Gain Assistant for fast and automatic gain setup
• Feedback Assistant with up to 16 filters per output
• 4 DCAs for multi-channel level control
• 4 Mute Groups for simultaneous channel muting
• Automatic Mic Mixer for speech and multi-microphone applications
• 7-inch capacitive touchscreen with dedicated rotary control
• 3 configurable SoftKeys
• Built-in Bluetooth stereo playback
• 16x16 USB-B audio interface for multichannel recording and playback
• SD card multichannel recording and playback at 48kHz/96kHz
• USB-A stereo recording and playback
• CQ MixPad remote control app for Windows, macOS, iOS, and Android
• RJ45 network connection
• Configurable single/dual footswitch connection
• Optional rack-mount kit available

Allen & Heath CQ-12T Specifications

• Product Type: Digital Mixer
• Inputs to Mix: 13 inputs (10 mono/linkable + 3 stereo)
• Mic/Line Inputs: 5 x XLR + 5 x XLR/TRS Combi
• Stereo Line Input: 2 x TRS
• Main Outputs: 2 x XLR
• Monitor Outputs: 6 x TRS
• Processing: 96kHz input/output processing
• Touchscreen: 7-inch capacitive touchscreen
• Multi-FX Engines: 2
• DCA Groups: 4
• Mute Groups: 4
• Feedback Assistant: Up to 16 filters per output
• Automatic Mic Mixer: Yes
• Bluetooth: Built-in Bluetooth stereo playback
• USB Audio Interface: 16 x 16 USB-B
• USB Recording/Playback: USB-A stereo recording and playback
• SD Card: Multichannel recording and playback at 48kHz/96kHz
• Network Connection: RJ45 Ethernet
• Remote Control: CQ MixPad app for Windows, macOS, iOS, and Android
• SoftKeys: 3 configurable SoftKeys
• Footswitch Connection: Configurable single/dual footswitch
• Rack Mounting: Optional rack-mount kit available

Most Popular Accessories & Related Items

<

Allen & Heath CQ-18T

$1199.99

Allen & Heath CQ-20B

$999.99

Allen & Heath Qu-7

$3999.99

Allen & Heath Qu-7D

$4399.99

Allen & Heath Qu-6

$2999.99

Allen & Heath Qu-6D

$3399.99

Allen & Heath Qu-5

$2399.99

Allen & Heath Qu-5D

$2399.99

>

Allen & Heath CQ-12T FAQs

What is the Allen & Heath CQ-12T?

The Allen & Heath CQ-12T is a compact digital mixer designed for live sound, recording, streaming, DJs, bands, and other audio applications.

How many inputs does the CQ-12T have?

The CQ-12T has 13 inputs to mix, including 10 mono/linkable and 3 stereo channels.

Does the CQ-12T have Bluetooth?

Yes, the CQ-12T has built-in Bluetooth for wireless stereo audio playback.

Does the CQ-12T have a touchscreen?

Yes, it features a 7-inch capacitive touchscreen for easy control and setup.

Can the CQ-12T record audio?

Yes, it supports multichannel recording and playback through SD card and USB.

Does the CQ-12T have built-in effects?

Yes, it includes two Multi-FX engines with effects such as reverb, delay, and modulation.

Can I control the CQ-12T remotely?

Yes, the mixer can be controlled remotely using the CQ MixPad app on compatible devices.
