Allen & Heath Qu-6D 38-Channel Digital Mixer With Dante

Description:

The Allen & Heath Qu-6D 38-Channel Digital Mixer combines professional 96kHz digital audio processing, flexible routing, hands-on control and integrated Dante networking in a powerful compact console. Built around the XCVI 96kHz processing core, the Qu-6D provides 38 inputs to mix, 24 outputs, 12 mixes, 4 matrix mixes and 6 stereo FX engines for professional live sound, AV, installation, studio and broadcast applications.

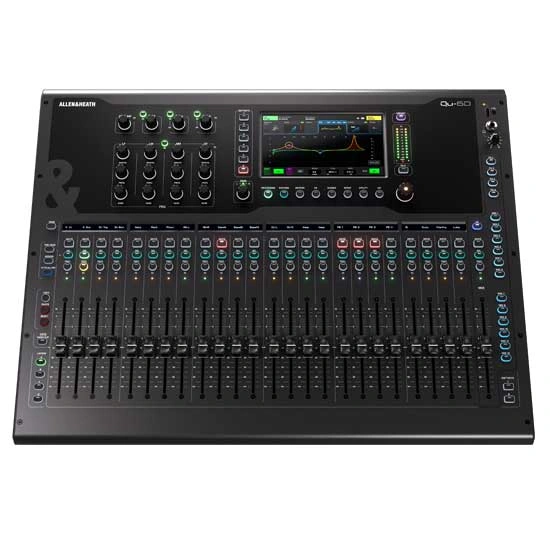

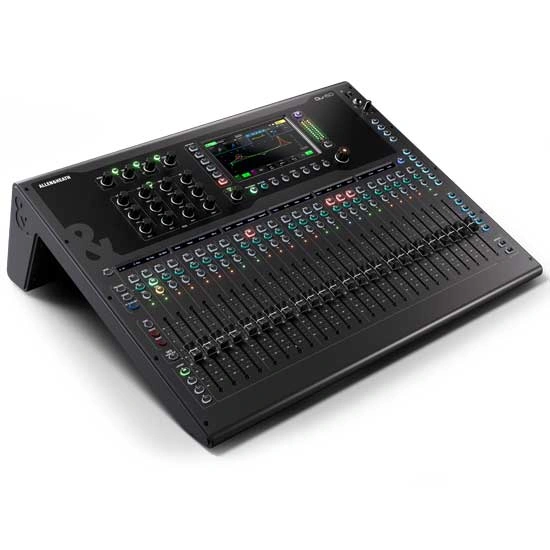

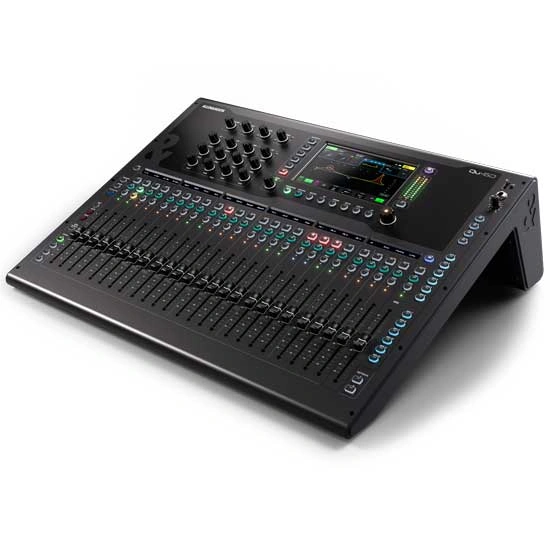

The Qu-6D features 25 x 100mm motorised faders across four customisable channel strip layers, along with a 7-inch capacitive touchscreen for intuitive control. Each channel also features a display and chromatic channel meter for quick identification and level monitoring.

For professional audio networking, the Qu-6D includes a dedicated 16x16 Dante interface supporting 48kHz and 96kHz operation. The locking EtherCON Dante connection provides integration with Dante-enabled audio equipment and networked production systems.

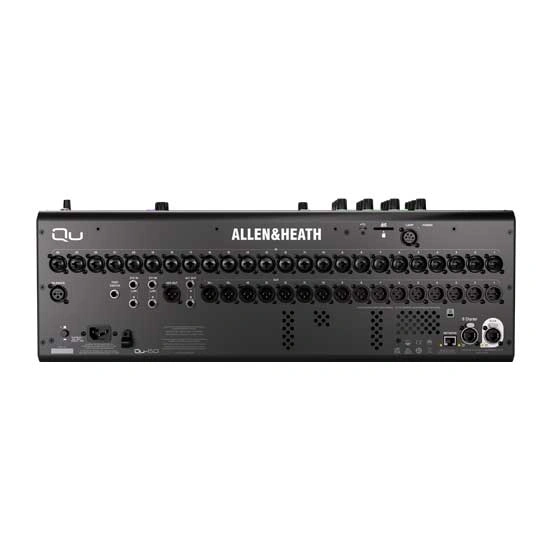

The Qu-6D provides extensive local I/O with 24 XLR/Jack Combi mic/line inputs, 16 XLR outputs, two stereo line inputs, an XLR talkback input, two TRS outputs, AES3 stereo digital output and a stereo headphone output. A 128x128 SLink port provides connectivity to compatible Everything I/O expanders and supported Allen & Heath systems.

For recording and playback, the Qu-6D includes a 32x32 USB-C audio interface, multichannel SD card recording and playback, and USB-A stereo recording and playback. The SD card interface supports up to 16 channels at 96kHz or 32 channels at 48kHz.

The Qu-6D is also DEEP Processing ready and includes Gain Assistant and Feedback Assistant tools for faster setup and easier live mixing. Six built-in Multi-FX engines with dedicated stereo returns provide versatile effects processing for professional productions.

Key Features

• 38 Inputs To Mix: 32 Mono/Linkable + 3 Stereo
• 24 Outputs
• 96kHz XCVI Processing Core
• 16x16 Dante Interface At 48/96kHz
• Dedicated Locking Dante EtherCON Port
• 25 x 100mm Motorised Faders
• 4 Customisable Channel Strip Layers
• 24 XLR/Jack Combi Mic/Line Inputs
• 16 XLR Outputs
• 2 Stereo Line Inputs
• 1 XLR Talkback Input
• 7-Inch Capacitive Touchscreen
• 8 SoftKeys
• 6 Stereo Multi-FX Engines
• 12 Mixes
• 4 Mono/Linkable Matrix Mixes
• 128x128 Intelligent SLink Port
• 32x32 USB-C Audio Interface
• SD Card Multichannel Recording And Playback
• USB-A Stereo Recording And Playback
• DEEP Processing Ready
• Gain Assistant
• Feedback Assistant
• 8 DCA Groups
• 8 Mute Groups
• Remote Control Via Windows, macOS, iOS And Android
• AES3 Stereo Digital Output
• Stereo Headphone Output
• 12V Lamp Socket

Technical Specifications

Processing & Mixing

• Processing Core: 96kHz XCVI Core
• Inputs To Mix: 38
• Input Configuration: 32 Mono/Linkable + 3 Stereo
• Mixes: 12
• Aux/Group Mixes: 6 Mono/Linkable + 6 Stereo
• Matrix Mixes: 4 Mono/Linkable
• Main Output: Stereo Main LR
• FX Engines: 6 Stereo Multi-FX Engines
• DEEP Processing: Ready
• Processing Latency: Less Than 0.7ms, Local Mic Input To Main LR

Inputs & Outputs

• Mic/Line Inputs: 24 x XLR/Jack Combi
• Stereo Line Inputs: 2 x Stereo, Each With 2 x TRS
• Talkback: 1 x XLR
• XLR Outputs: 16
• TRS Outputs: 2
• Digital Output: 1 x AES3 Stereo
• Headphone Output: Stereo
• SLink: 128x128 Intelligent SLink Port
• Dante: 16x16 At 48/96kHz
• Dante Connection: Dedicated Locking EtherCON Port

Control

• Touchscreen: 7-Inch Capacitive
• Resolution: 800 x 480
• Faders: 25 x 100mm Motorised
• Fader Layers: 4 Customisable Layers
• SoftKeys: 8
• Mute Groups: 8
• DCA Groups: 8
• Channel Metering: Configurable Chromatic Channel Meter LEDs
• Remote Control: Windows / macOS / iOS / Android
• Network: TCP/IP Ethernet
• Footswitch: Single Or Dual, Momentary Or Latching

Recording & Playback

• USB-C Audio Interface: 32x32 Multichannel
• USB-C Audio: 32 Channels Send / 32 Channels Return
• USB-A: Stereo Audio Recording/Playback And Data Transfer
• SD Recording: 16 Channels At 96kHz / 32 Channels At 48kHz
• SD Playback: 16 Channels At 96kHz / 32 Channels At 48kHz
• Audio Format: WAV, 24-Bit For Multitrack

Dante Networking

• Dante Channels: 16 Input / 16 Output
• Dante Sample Rates: 48kHz / 96kHz
• Dante Connection: Dedicated Locking EtherCON Port
• Dante Routing: Fully Patchable
• Dante Clocking: Assignable As Audio Clock Source

Audio Performance

• Sample Rate: 96kHz
• Dynamic Range: 110dB
• Frequency Response: +0/-0.5dB, 20Hz-20kHz
• Headroom: +18dB
• Internal Operating Level: 0dBu
• THD+N: 0.005%, -87dB
• Maximum XLR Output: +22dBu
• Phantom Power: +48V

Physical & General

• Dimensions: 609 x 476 x 213mm
• Dimensions: 24 x 18.7 x 8.4 Inches
• Unpacked Weight: 13.5kg / 29.8lbs
• Packed Weight: 16.5kg / 36.4lbs
• Power Supply: 100-240V AC, 50/60Hz
• Maximum Power Consumption: 90W
• Operating Temperature: 0°C To 40°C
• Network Connection: RJ45
• Lamp Socket: 12V

Most Popular Accessories & Related Items

<

Allen & Heath Qu-5

$2399.99

Allen & Heath Qu-5D

$2399.99

Allen & Heath Qu-6

$2999.99

Allen & Heath SQ5+

$4999.99

Allen & Heath SQ6+

$5999.99

Allen & Heath SQ7+

$6999.99

>

Frequently Asked Questions About The Allen & Heath Qu-5D

How many channels does the Allen & Heath Qu-6D have?

The Allen & Heath Qu-6D provides 38 inputs to mix, with 32 mono/linkable inputs and 3 stereo inputs, plus 24 outputs.

Does the Allen & Heath Qu-6D have Dante?

Yes. The Qu-6D includes a dedicated 16x16 Dante interface supporting 48kHz and 96kHz audio networking.

How many faders does the Allen & Heath Qu-6D have?

The Qu-6D features 25 x 100mm motorised faders across four customisable channel strip layers.

Is the Allen & Heath Qu-6D a 96kHz mixer?

Yes. The Qu-6D features a 96kHz XCVI processing core for high-quality digital audio and low-latency performance.

Does the Allen & Heath Qu-6D have USB-C?

Yes. It includes a 32x32 USB-C audio interface for multichannel recording and playback.

Does the Allen & Heath Qu-6D support SD recording?

Yes. The Qu-6D supports up to 16-channel recording at 96kHz or 32-channel recording at 48kHz through SD card.

How many inputs does the Qu-6D have?

The Qu-6D has 24 XLR/Jack Combi mic/line input sockets, plus two stereo line inputs and a dedicated XLR talkback input.

Is the Allen & Heath Qu-6D suitable for live sound?

Yes. Its 38 inputs, 24 outputs, 25 motorised faders, 96kHz processing, Dante networking and flexible routing make it ideal for professional live sound.

Can the Qu-6D be expanded?

Yes. The Qu-6D features a 128x128 SLink port for compatible Allen & Heath Everything I/O expansion and system connections.
