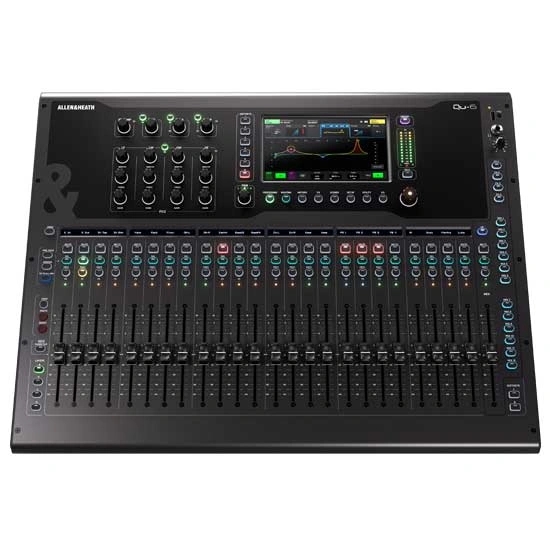

Allen & Heath Qu-6 38-Channel Digital Mixer

Description:

The Allen & Heath Qu-6 38-Channel Digital Mixer combines professional 96kHz digital audio processing with powerful hands-on control, flexible routing and extensive connectivity. Built around Allen & Heath's XCVI 96kHz processing core, the Qu-6 provides 38 inputs to mix, 24 outputs, 12 mixes, 4 matrix mixes and 6 stereo FX engines, making it suitable for live sound, AV installations, theatres, houses of worship, broadcast, studio and corporate applications.

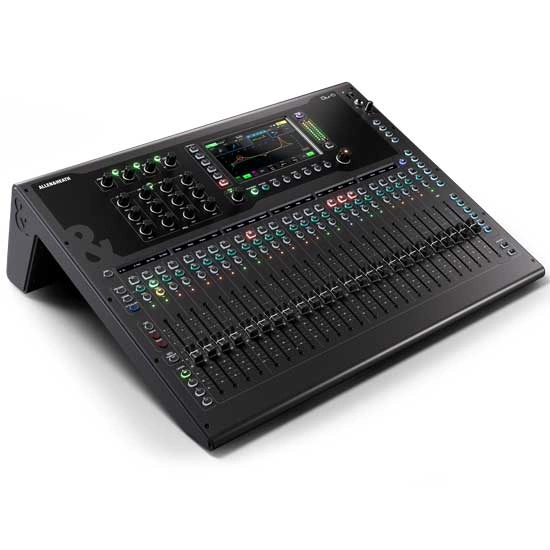

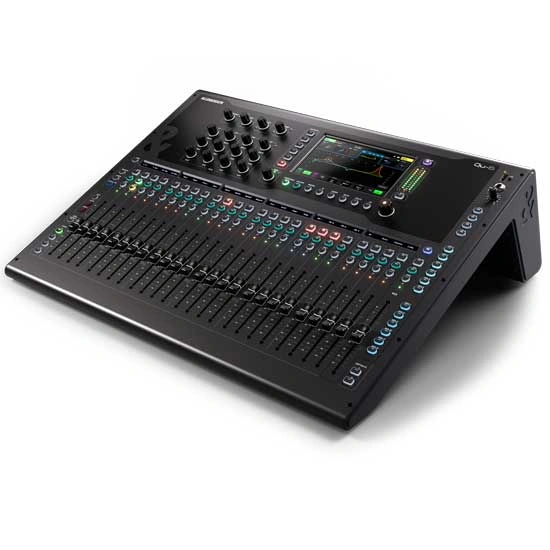

The Qu-6 features 25 x 100mm motorised faders across four customisable channel strip layers, giving engineers fast and intuitive access to channels, mixes, FX sends, returns and other mixing functions. A responsive 7-inch capacitive touchscreen, 8 assignable SoftKeys and configurable chromatic channel metering provide convenient control during live performances and productions.

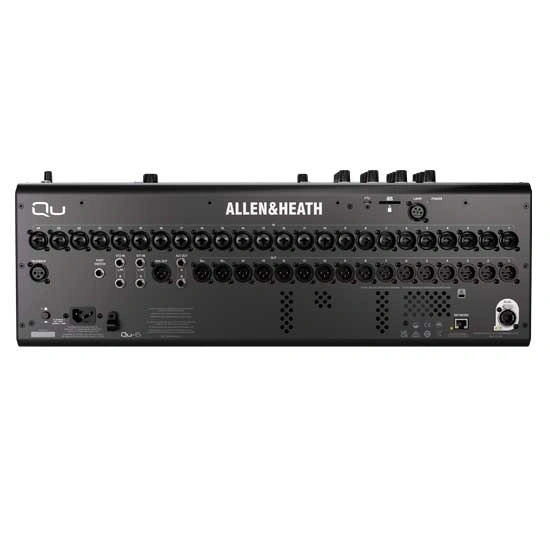

With 24 XLR/Jack Combi mic/line inputs, 16 XLR outputs, two stereo line inputs, an XLR talkback input, AES3 digital output and headphone output, the Qu-6 provides extensive local I/O in a compact console. Its 128x128 SLink port also provides connectivity to compatible Allen & Heath Everything I/O expanders and other supported systems.

The Qu-6 is designed for modern recording and playback workflows with an integrated 32x32 USB-C audio interface, multichannel SD card recording and playback, and stereo recording and playback through USB-A. The USB-C connection supports 32 channels of audio send and return at 48kHz or 96kHz.

The Qu-6 is also DEEP Processing ready and includes Gain Assistant and Feedback Assistant tools to simplify setup and help engineers manage input gain and unwanted feedback. Six built-in Multi-FX engines provide professional effects processing with dedicated stereo returns.

For applications requiring Dante networking, the Qu-6D variant adds a dedicated 16x16 Dante interface supporting 48kHz and 96kHz operation. The standard Qu-6 does not include the built-in Dante interface.

Key Features

• 38 Inputs to Mix: 32 Mono/Linkable + 3 Stereo
• 24 Outputs
• 96kHz XCVI Processing Core
• 25 x 100mm Motorised Faders
• 4 Customisable Channel Strip Layers
• 24 XLR/Jack Combi Mic/Line Input Sockets
• 16 XLR Output Sockets
• 2 Stereo Line Input Sockets
• 1 XLR Talkback Input
• 7-inch Capacitive Touchscreen
• 8 Assignable SoftKeys
• 6 Multi-FX Engines With Dedicated Stereo Returns
• 12 Mixes
• 4 Mono/Linkable Matrix Mixes
• Stereo Main LR Output
• 128x128 Intelligent SLink Port
• 32x32 USB-C Audio Interface
• SD Card Multichannel Recording and Playback
• USB-A Stereo Recording and Playback
• DEEP Processing Ready
• Gain Assistant
• Feedback Assistant
• 32-Channel Automatic Mic Mixer
• 31/61-Band Real Time Analyser
• 8 DCA Groups and 8 Mute Groups
• Remote Control via Windows, macOS, iOS and Android Apps
• AES3 Stereo Digital Output
• Stereo Headphone Output
• 12V Lamp Socket
• Configurable Single/Dual Footswitch Connection

Specifications

Processing & Mixing

• Processing Core: 96kHz XCVI Core
• Inputs to Mix: 38
• Input Configuration: 32 Mono/Linkable + 3 Stereo
• Mixes: 12
• Aux/Group Mixes: 6 Mono/Linkable + 6 Stereo
• Matrix Mixes: 4 Mono/Linkable
• Main Output: Stereo Main LR
• FX Engines: 6 Multi-FX Engines
• FX Returns: 6 Dedicated Stereo Returns
• DEEP Processing: Ready
• System: 38 Input, 28 Bus XCVI Core
• Processing Latency: Less Than 0.7ms, Local Mic Input to Main LR

Inputs & Outputs

• Mic/Line Inputs: 24 x XLR/Jack Combi
• Stereo Line Inputs: 2 x Stereo, Each With 2 x TRS
• Talkback Input: 1 x XLR
• XLR Outputs: 16
• TRS Outputs: 2
• Digital Output: 1 x AES3 Stereo
• Headphone Output: Stereo
• SLink: 128x128 Intelligent SLink Port
• Dante: Not Included on Qu-6; Available on Qu-6D

Control

• Touchscreen: 7-inch Capacitive
• Resolution: 800 x 480
• Faders: 25 x 100mm Motorised
• Fader Layers: 4 Customisable Layers
• SoftKeys: 8
• Mute Groups: 8
• DCA Groups: 8
• Channel Metering: Configurable Chromatic Channel Meter LEDs
• Remote Control: Windows / macOS / iOS / Android
• Network: TCP/IP Ethernet
• MIDI: USB-C and TCP/IP
• Footswitch: Single or Dual, Momentary or Latching

Recording & Playback

• USB-C Audio Interface: 32x32 Multichannel
• USB-C Send: 32 Channels at 48/96kHz, 24-bit
• USB-C Return: 32 Channels at 48/96kHz, 24-bit
• USB-A Stereo Recording: 2 Channels, WAV, 48/96kHz, 24-bit
• USB-A Playback: 1/2 Channels, WAV, 44.1/48/96kHz, 16/24-bit
• SD Recording: 16 Channels at 96kHz / 32 Channels at 48kHz
• SD Playback: 16 Channels at 96kHz / 32 Channels at 48kHz
• Audio Format: WAV, 24-bit for Multitrack
• SD Card: SDHC, Up to 32GB, UHS-I Class 10

Audio Performance

• Sample Rate: 96kHz
• Bit Depth: XCVI Custom Bit Depths, Up to 96-bit
• Dynamic Range: 110dB
• Frequency Response: +0/-0.5dB, 20Hz-20kHz
• Headroom: +18dB
• Internal Operating Level: 0dBu
• THD+N: 0.005%, -87dB
• Maximum XLR Output: +22dBu
• Phantom Power: +48V
• Latency: Less Than 0.7ms, Local Mic Input to Main LR

Input Processing

• Trim: -24dB to +24dB
• High Pass Filter: 20Hz-2kHz, 12/18/24dB Per Octave
• Gate: Patchable Sidechain
• Insert: Fully Patchable
• PEQ: 4-Band Fully Parametric
• Compressor: Patchable Sidechain With DEEP Options
• Channel Delay: Up to 341ms

Mix Processing

• Insert: Fully Patchable
• Graphic EQ: 28-Band, 31Hz-16kHz
• Feedback Assistant: Up to 16 Filters Per Mix
• Feedback Detection: 8 Concurrent Detectors
• PEQ: 4-Band Fully Parametric
• Compressor: Fully Configurable
• Processing Delay: Up to 682ms

Networking & Expansion

• SLink Connection: Neutrik EtherCON / RJ45
• SLink dSnake Mode: 40 Input, 20 + 40 ME Output Channels at 48kHz
• SLink DX Mode: 32 Input / 32 Output Channels at 96kHz
• SLink GigaACE/GX: 128 Input / 128 Output Channels at 96kHz
• Inputs: Fully Patchable
• Outputs: Fully Patchable
• Clocking: Assignable as Audio Clock Source

Physical & General

• Dimensions: 609 x 476 x 213mm
• Dimensions: 24 x 18.7 x 8.4 inches
• Unpacked Weight: 13.5kg / 29.8lbs
• Packed Weight: 16.5kg / 36.4lbs
• Power Supply: 100-240V AC, 50/60Hz
• Maximum Power Consumption: 90W
• Operating Temperature: 0°C to 40°C
• Network Connection: RJ45
• Lamp Socket: 12V
