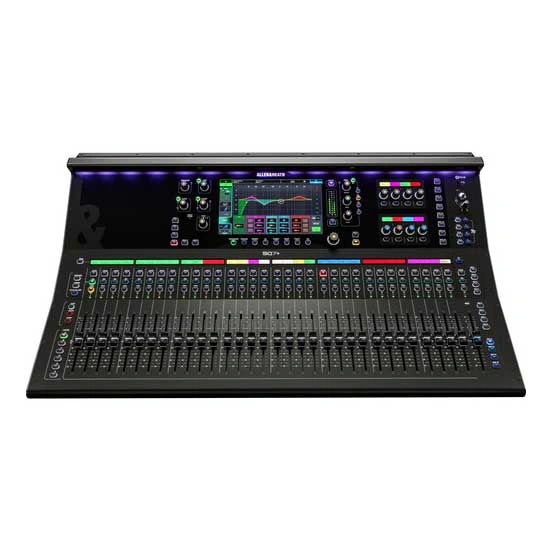

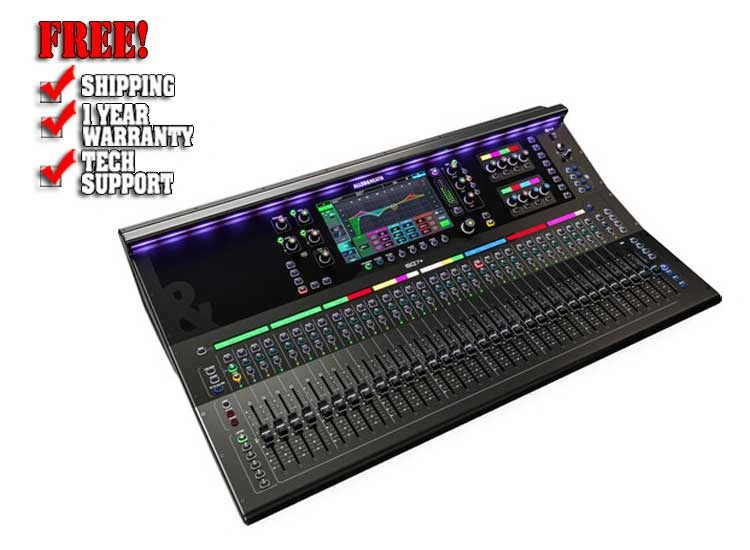

Allen & Heath SQ7+ 48-Channel Digital Mixer

Description:

The Allen & Heath SQ7+ is a professional 48-channel digital mixer designed for demanding live sound, touring, broadcast, recording, installations, events, and monitor mixing applications. As the largest mixer in the SQ+ range, the SQ7+ combines extensive hands-on control with a powerful 96kHz XCVI processing core, 33 motorized faders, a 9-inch touchscreen, and advanced RackUltra FX.

With 33 motorized 100mm faders, 16 assignable SoftKeys, and 8 assignable SoftRotaries, the SQ7+ provides extensive physical control for complex productions. Six customizable channel-strip layers allow engineers to organize inputs, mixes, effects, and other controls to suit their workflow.

Powerful 96kHz XCVI Processing

At the heart of the SQ7+ is Allen & Heath's 96kHz XCVI processing core, delivering high-resolution digital audio processing and ultra-low latency for professional mixing applications.

Each input channel provides a high-pass filter, gate with sidechain and filter, freely assignable insert point, 4-band parametric EQ with RTA, and Peak/RMS compressor. Mixes include parametric and 28-band graphic EQ along with compression.

DEEP Processing and RackUltra FX

The SQ7+ is DEEP Processing ready, allowing compatible processing models to run directly within the mixer without adding latency. This provides engineers with advanced processing options while maintaining the SQ+ platform's low-latency performance.

The mixer includes 8 RackExtra FX engines, each with a dedicated stereo return, plus 4 RackUltra FX engines with dedicated stereo sends and returns. RackUltra FX provides access to premium effects including reverbs, vocal tuning, pitch processing, distortion, and saturation.

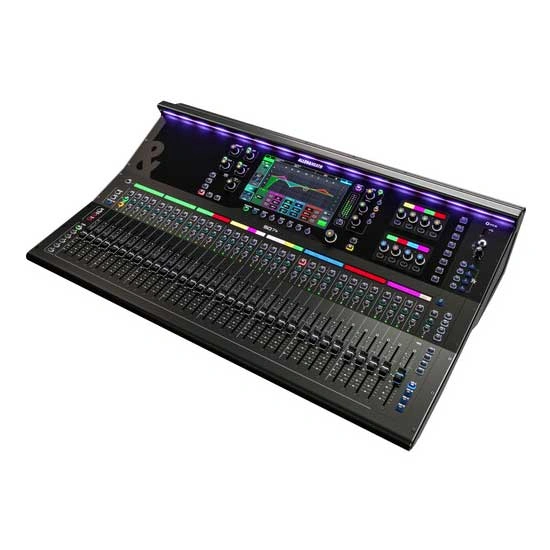

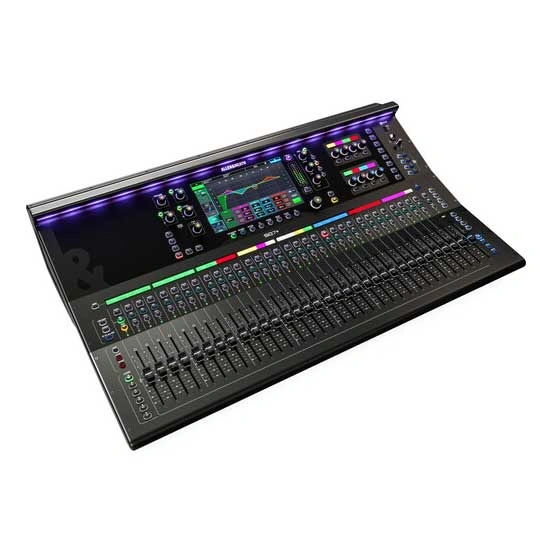

33 Motorized Faders and 9-Inch Touchscreen

The 33 motorized 100mm faders provide extensive hands-on control across six customizable channel-strip layers. Channels and mixes can be assigned to different strips, allowing engineers to create a personalized mixing environment for each production.

The SQ7+ features a responsive 9-inch capacitive touchscreen with Allen & Heath's dark GUI, providing clear access to routing, processing, metering, setup, and mixer functions.

32×32 USB Audio Interface

The built-in USB-B audio interface provides 32×32 multichannel USB audio at both 96kHz and 48kHz. This makes the SQ7+ suitable for multitrack recording, playback, livestreaming, and virtual soundcheck applications.

The integrated SQ-Drive also allows direct recording and playback using a USB drive without requiring a computer or DAW. SQ-Drive supports up to 16 channels at 96kHz or 32 channels at 48kHz, as well as stereo recording and playback.

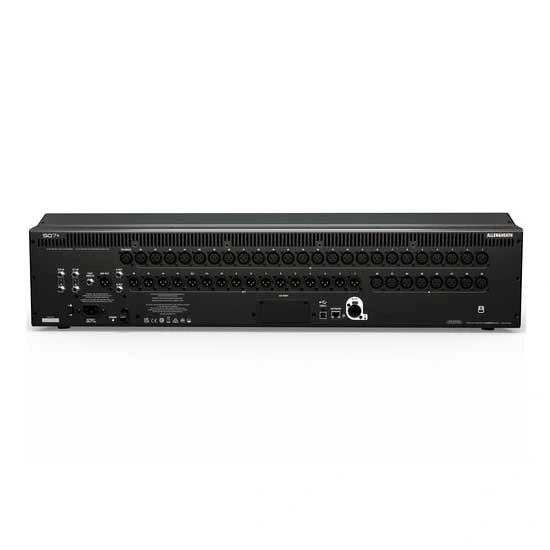

Flexible Connectivity and Expansion

The SQ7+ includes a 128×128 Intelligent SLink port for connecting Allen & Heath Everything I/O expanders, remote stage boxes, and compatible Allen & Heath consoles.

A dedicated I/O expansion slot supports optional SLink, Dante, Waves, and MADI cards, making the SQ7+ suitable for complex FOH and monitor systems, broadcast environments, installations, and professional audio networks.

32 XLR Mic/Line Inputs

The SQ7+ provides 32 XLR mic/line input sockets, giving engineers extensive local input capacity for larger live productions and installations. It also includes a dedicated XLR talkback input and stereo line inputs for additional audio sources.

Professional Live Sound Control

The SQ7+ is built for engineers who need maximum hands-on control. Its 33 motorized faders, 16 SoftKeys, 8 SoftRotaries, configurable channel strips, and 9-inch touchscreen provide a flexible interface for managing complex shows.

The console is suitable for FOH mixing, monitor mixing, touring productions, theaters, corporate events, houses of worship, broadcast, recording, and permanent installations.

Allen & Heath SQ7+ Key Features

• 48 input channels to mix
• 44-bus architecture
• 96kHz XCVI processing core
• 33 × 100mm motorized faders
• 9-inch capacitive touchscreen
• 16 assignable SoftKeys
• 8 assignable SoftRotaries
• 8 RackExtra FX engines
• 4 RackUltra FX engines
• DEEP Processing ready
• 12 stereo Aux/Group mixes + LR
• 6 mono/linkable Matrix mixes
• 128×128 Intelligent SLink port
• Optional Dante, Waves, MADI, and SLink expansion
• 32×32 USB audio interface
• USB recording and playback
• 32 XLR mic/line input sockets
• 16 XLR output sockets
• 3 stereo line input connections
• Dedicated XLR talkback input
• 2 TRS output connections
• AES3 stereo digital output
• Stereo headphone output
• Remote control through compatible Allen & Heath apps
• Configurable single or dual footswitch connection

Most Popular Accessories & Related Items

<

Allen & Heath SQ5+

$4999.99

Allen & Heath SQ6+

$5999.99

Headliner R4

$599.99

AlphaTheta DJM-V5

$2199.99

Pioneer DJ DJM-A9

$2899.99

Mackie Onyx 8

$424.99

>

---

Frequently Asked Questions About the Allen & Heath SQ7+

What is the Allen & Heath SQ7+?

The Allen & Heath SQ7+ is a professional 48-channel digital mixer designed for live sound, touring, recording, broadcast, installations, events, and monitor mixing. It features 33 motorized faders, a 9-inch touchscreen, 96kHz XCVI processing, DEEP Processing, and advanced RackUltra FX.

How many channels and faders does the Allen & Heath SQ7+ have?

The SQ7+ provides 48 input channels to mix and features 33 100mm motorized faders across six customizable channel-strip layers. It also has a 44-bus architecture for flexible routing and mixing.

What are the main features of the Allen & Heath SQ7+?

Key features include 48 input channels, 33 motorized faders, a 9-inch touchscreen, 96kHz XCVI processing, 16 assignable SoftKeys, 8 SoftRotaries, 8 RackExtra FX engines, 4 RackUltra FX engines, DEEP Processing support, and a 32×32 USB audio interface.

Does the Allen & Heath SQ7+ support USB recording?

Yes. The SQ7+ includes a 32×32 USB audio interface supporting 96kHz and 48kHz operation. It also features SQ-Drive for direct USB recording and playback, making it suitable for multitrack recording, streaming, playback, and virtual soundcheck applications.

Does the Allen & Heath SQ7+ support Dante?

Yes. Dante connectivity is available through an optional expansion card. The SQ7+ also supports optional Waves, MADI, and SLink networking options for professional audio systems.

Is the Allen & Heath SQ7+ suitable for live sound?

Yes. The SQ7+ is designed for professional live sound and is suitable for FOH and monitor mixing, touring productions, theaters, corporate events, broadcast, houses of worship, and permanent installations.

---
