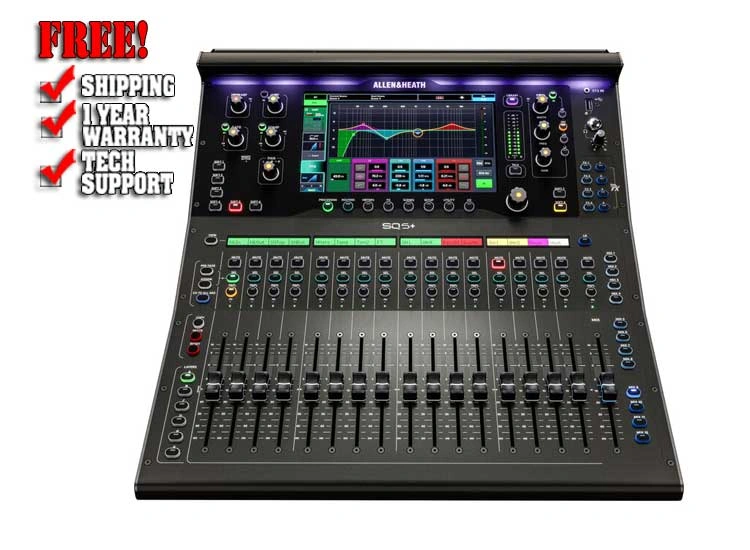

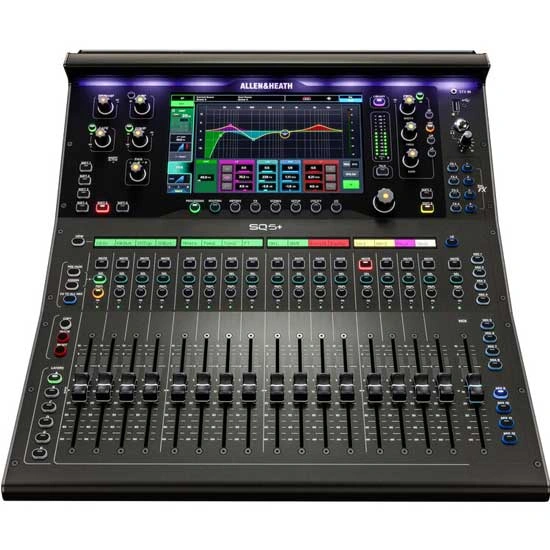

Allen & Heath SQ5+ 48-Channel Digital Mixer

Description:

The Allen & Heath SQ5+ is a compact, powerful 48-channel digital mixer designed for professional live sound, touring, installations, broadcast, events, recording, and monitor mixing. Combining a compact control surface with powerful 96kHz processing, the SQ5+ delivers extensive mixing, routing, processing, and connectivity capabilities in a space-efficient format.

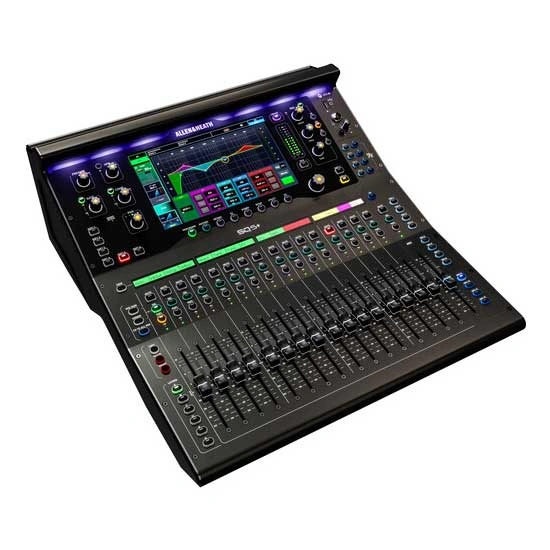

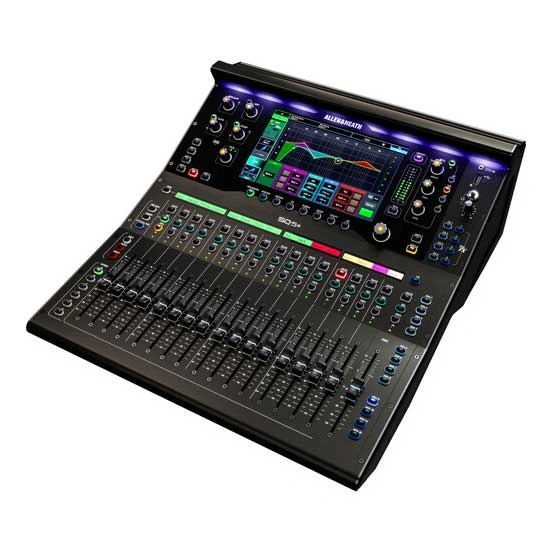

With 17 motorized 100mm faders, 8 assignable SoftKeys, and a responsive 9-inch touchscreen, the SQ5+ provides intuitive hands-on control while keeping essential mixing information easily accessible. Its compact, rack-mountable design makes it suitable for both mobile production and permanent installations.

Powerful 96kHz Processing

At the heart of the SQ5+ is Allen & Heath's 96kHz XCVI processing core, providing high-resolution digital audio processing for demanding professional applications.

Each input channel includes a high-pass filter, gate with sidechain and filter, insert point, 4-band parametric EQ with RTA, and Peak/RMS compressor. Mixes also feature parametric and 28-band graphic EQ plus compression.

DEEP Processing and RackUltra FX

The SQ5+ supports Allen & Heath DEEP Processing, allowing compatible processing models to run directly within the mixer without adding latency.

For effects, the console includes 8 RackExtra FX engines with dedicated stereo returns and 4 RackUltra FX engines with dedicated stereo sends and returns. RackUltra FX provides access to premium effects including reverbs, vocal tuning, pitch processing, distortion, and saturation.

32×32 USB Audio Interface

The built-in USB audio interface allows the SQ5+ to work as a powerful recording, streaming, and production interface.

It supports 32×32 USB audio at both 96kHz and 48kHz, making it suitable for multitrack recording, livestreaming, playback, and virtual soundcheck applications. The mixer is compatible with Mac and Windows systems.

Flexible Connectivity

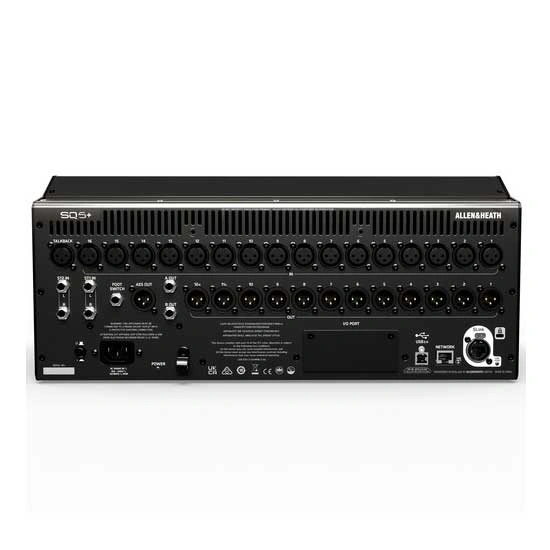

The SQ5+ includes a 128×128 Intelligent SLink port for connection to Allen & Heath Everything I/O products and other compatible Allen & Heath consoles.

An expansion slot supports optional networking cards for Dante, Waves, MADI, and additional SLink connectivity, making the SQ5+ suitable for more complex live sound, broadcast, installation, and audio-networking environments.

Compact Design for Live Sound and Installation

The SQ5+ combines professional digital mixing capabilities with a compact footprint. Its 17 motorized faders, 9-inch touchscreen, and configurable control surface make it suitable for FOH mixing, monitor mixing, corporate events, houses of worship, theaters, touring productions, and fixed installations.

The console can also be 19-inch rack mounted with the optional rack kit, providing additional flexibility for installation and mobile production systems.

Allen & Heath SQ5+ Key Features

• 48 input channels to mix
• 44-bus architecture
• 96kHz XCVI processing core
• 17 × 100mm motorized faders
• 9-inch touchscreen with dark GUI
• 8 assignable SoftKeys
• 8 RackExtra FX engines
• 4 RackUltra FX engines
• DEEP Processing ready
• 12 stereo Aux/Group mixes + LR
• 6 mono/linkable Matrix outputs
• 128×128 Intelligent SLink port
• Optional Dante, Waves, MADI, and SLink expansion
• 32×32 USB audio interface
• USB recording and playback
• 16 XLR mic/line inputs
• 12 XLR outputs
• AES3 stereo digital output
• Stereo headphone output
• Remote control through Allen & Heath apps
• Optional 19-inch rack mounting

Most Popular Accessories & Related Items

<

Allen & Heath SQ6+

$5999.99

Allen & Heath SQ7+

$6999.99

Headliner R4

$599.99

AlphaTheta DJM-V5

$2199.99

Pioneer DJ DJM-A9

$2899.99

Mackie Onyx 8

$424.99

>

Allen & Heath SQ5+ 48-Channel Digital Mixer FAQs

What is the Allen & Heath SQ5+?

The Allen & Heath SQ5+ is a professional 48-channel digital mixer designed for live sound, touring, recording, broadcast, installations, events, and monitor mixing. It features 17 motorized faders, a 9-inch touchscreen, 96kHz XCVI processing, DEEP Processing, and advanced effects.

How many channels does the Allen & Heath SQ5+ have?

The Allen & Heath SQ5+ provides 48 input channels to mix with a 44-bus architecture. It also features 17 motorized 100mm faders for hands-on control of inputs, mixes, and other assigned channels.

What are the main features of the Allen & Heath SQ5+?

Key features include 48 input channels, 17 motorized faders, a 9-inch touchscreen, 96kHz XCVI processing, DEEP Processing support, 8 RackExtra FX engines, 4 RackUltra FX engines, a 32×32 USB audio interface, and 128×128 SLink connectivity.

Does the Allen & Heath SQ5+ support USB recording?

Yes. The SQ5+ includes a 32×32 USB audio interface with support for 96kHz and 48kHz operation. It can be used for multitrack recording, playback, streaming, and virtual soundcheck applications.

Does the Allen & Heath SQ5+ support Dante?

Yes. Dante connectivity is available through an optional expansion card. The SQ5+ also supports optional Waves, MADI, and additional SLink networking options for professional audio systems.

Is the Allen & Heath SQ5+ suitable for live sound?

Yes. The SQ5+ is designed for professional live sound applications and is suitable for FOH and monitor mixing, touring productions, theaters, corporate events, houses of worship, broadcast, and permanent installations.
