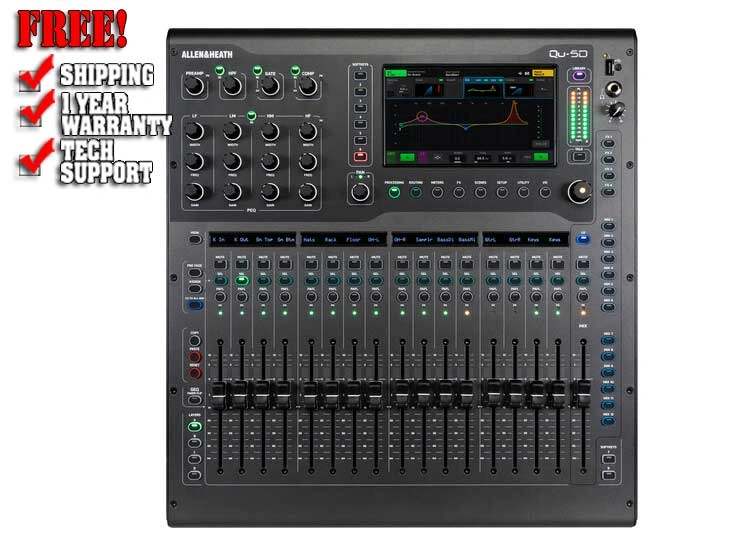

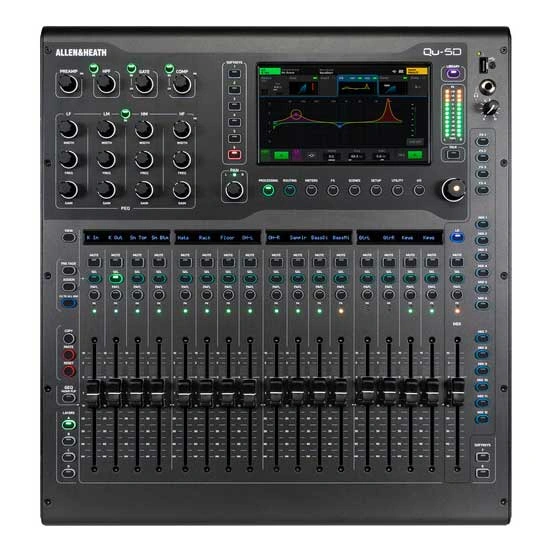

Allen & Heath Qu-5D 38-Channel Digital Mixer With Dante

Description:

The Allen & Heath Qu-5D 38-Channel Digital Mixer combines professional 96kHz digital mixing, intuitive hands-on control and advanced Dante networking in a compact console. Built around Allen & Heath's XCVI processing core, the Qu-5D provides 38 inputs to mix, 24 outputs, 12 mixes, 4 matrix mixes and 6 stereo FX engines, making it an excellent choice for live sound, touring, installations, corporate events, theatres, houses of worship and recording applications.

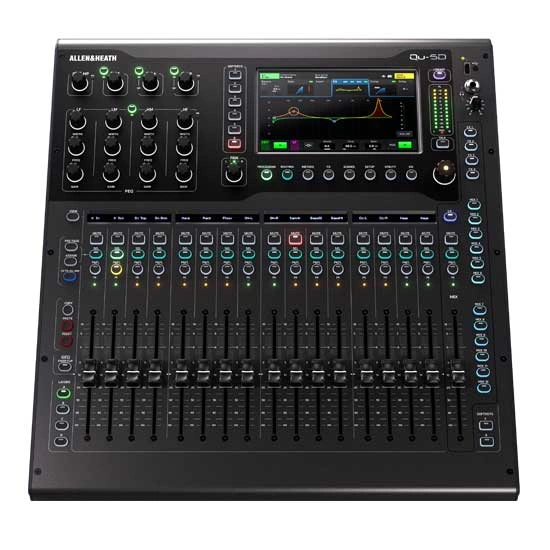

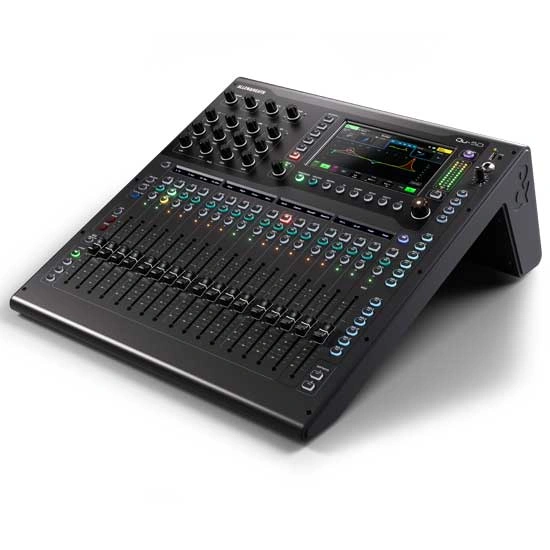

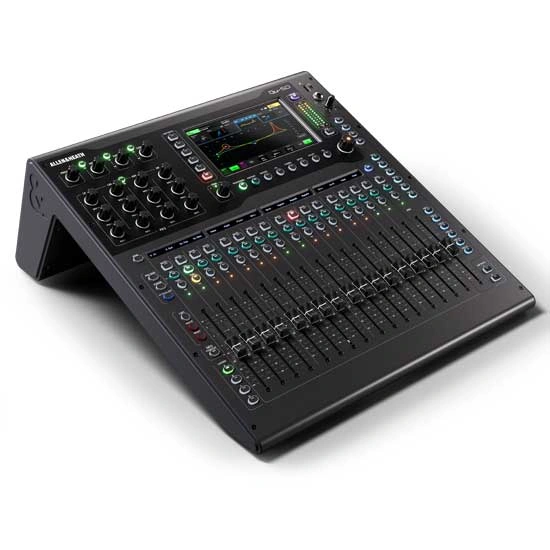

The Qu-5D features 17 x 100mm motorised faders across four customisable layers and a 7-inch capacitive touchscreen for intuitive control of mixing, routing, processing and system settings. Its redesigned workflow provides fast hands-on access for both experienced engineers and users new to digital mixing.

A major advantage of the Qu-5D is its integrated 16x16 Dante interface, providing 48kHz or 96kHz Dante audio networking through a dedicated etherCON port. The Dante connection can be used with Dante-enabled equipment and networks for flexible multichannel audio distribution and system integration.

For recording and computer-based production, the Qu-5D includes a 32x32 USB-C audio interface for multichannel recording and playback, while the SD card interface supports multitrack recording and playback. USB-A also provides stereo recording and playback.

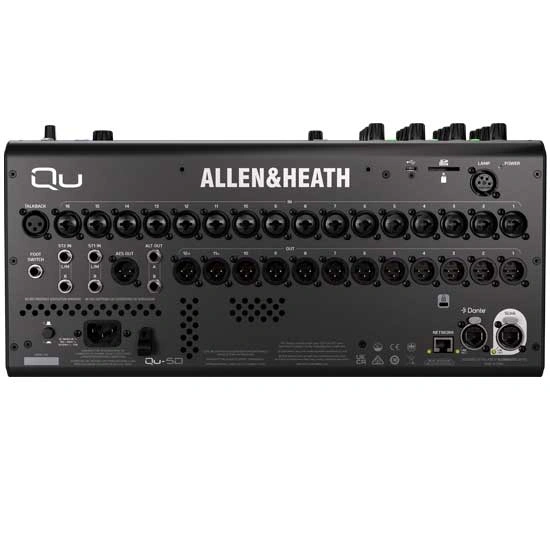

The Qu-5D also features a 128x128 SLink port for connection to compatible Allen & Heath Everything I/O expanders and system devices. With 16 XLR/Jack combo inputs, 12 XLR outputs, stereo line inputs, AES3 digital output, Dante, SLink and professional processing tools, the Qu-5D delivers a flexible solution for modern professional audio systems.

Key Features

• 38 inputs to mix: 32 Mono/Linkable + 3 Stereo
• 24 outputs
• 96kHz XCVI processing core
• 16x16 Dante interface at 48/96kHz
• Dedicated Dante etherCON port
• 128x128 SLink port for Everything I/O expansion
• 17 x 100mm motorised faders
• 4 customisable channel strip layers
• 16 XLR/Jack Combi mic/line inputs
• 12 XLR outputs
• 2 stereo line input sockets
• 7-inch capacitive touchscreen
• 8 assignable SoftKeys
• 6 stereo Multi-FX engines with dedicated stereo returns
• 12 mixes
• 4 mono/linkable matrix mixes
• Gain Assistant
• Feedback Assistant
• 32x32 USB-C multichannel audio interface
• SD card multitrack recording and playback
• USB-A stereo recording and playback
• DEEP Processing ready
• Remote control via Windows, macOS, iOS and Android apps
• AES3 stereo digital output
• Stereo headphone output
• 19-inch rack mountable with optional rack kit

Technical Specifications

Processing & Mixing

• Processing Core: 96kHz XCVI Core
• Inputs to Mix: 38
• Input Configuration: 32 Mono/Linkable + 3 Stereo
• Mixes: 12
• Aux/Group Mixes: 6 Mono/Linkable + 6 Stereo
• Matrix Mixes: 4 Mono/Linkable
• Main Output: Stereo Main LR
• FX Engines: 6 Stereo Multi-FX Engines
• DEEP Processing: Ready
• Processing Latency: Less than 0.7ms, Local Mic Input to Main L/R

Inputs & Outputs

• Mic/Line Inputs: 16 x XLR/Jack Combi
• Stereo Line Inputs: 2 x Stereo, each with 2 x TRS
• Talkback: 1 x XLR
• XLR Outputs: 12
• TRS Outputs: 2
• Digital Output: 1 x AES3 Stereo
• Headphone Output: Stereo
• SLink: 128x128 Intelligent SLink Port
• Dante: 16x16 at 48/96kHz
• Dante Connection: Dedicated etherCON Port

Control

• Touchscreen: 7-inch Capacitive
• Resolution: 800 x 480
• Faders: 17 x 100mm Motorised
• Fader Layers: 4 Customisable Layers
• SoftKeys: 8
• Mute Groups: 8
• DCA Groups: 8
• Channel Metering: Configurable Chromatic Channel Meter LEDs
• Remote Control: Windows / macOS / iOS / Android
• Network: TCP/IP Ethernet
• Footswitch: Single or Dual, Momentary or Latching

Recording & Playback

• USB-C Audio Interface: 32x32 Multichannel
• USB-C Send: 32 Channels at 48/96kHz, 24-bit
• USB-C Return: 32 Channels at 48/96kHz, 24-bit
• USB-A: Stereo Audio Recording/Playback and Data
• SD Recording: 16 Channels at 96kHz / 32 Channels at 48kHz
• SD Playback: 16 Channels at 96kHz / 32 Channels at 48kHz
• Audio Format: WAV, 24-bit for multitrack
• SD Card: SDHC, up to 32GB, UHS-I Class 10

Audio Performance

• Sample Rate: 96kHz
• Dynamic Range: 110dB
• Frequency Response: +0/-0.5dB, 20Hz-20kHz
• Headroom: +18dB
• Internal Operating Level: 0dBu
• THD+N: 0.005%, -87dB
• Maximum XLR Output: +22dBu
• Phantom Power: +48V

Dante Networking

• Dante Channels: 16 Input / 16 Output
• Dante Sample Rates: 48kHz / 96kHz
• Connection: Dedicated Dante etherCON Port
• Routing: Fully Patchable Inputs and Outputs
• Clocking: Assignable as Audio Clock Source
• Sample Rate Conversion: 48kHz to 96kHz and 96kHz to 48kHz

Physical & General

• Rack Mounting: 19-inch, Optional Rack Kit
• Power Supply: 100-240V AC, 50/60Hz
• Maximum Power Consumption: 75W
• Operating Temperature: 0°C to 40°C
• Network Connection: RJ45
• Lamp Socket: 12V

Most Popular Accessories & Related Items

<

Allen & Heath Qu-5

$2399.99

Allen & Heath Qu-6

$2999.99

Allen & Heath Qu-6D

$3399.99

Allen & Heath SQ5+

$4999.99

Allen & Heath SQ6+

$5999.99

Allen & Heath SQ7+

$6999.99

>

Frequently Asked Questions About The Allen & Heath Qu-5D

How many channels does the Allen & Heath Qu-5D have?

The Qu-5D provides 38 inputs to mix, with 32 mono/linkable inputs and 3 stereo inputs, plus 24 outputs.

Does the Allen & Heath Qu-5D have Dante?

Yes. The Qu-5D includes a dedicated 16x16 Dante interface supporting 48kHz and 96kHz audio.

How many faders does the Qu-5D have?

The Qu-5D features 17 x 100mm motorised faders across four customisable layers.

Does the Qu-5D have USB-C?

Yes. It features a 32x32 USB-C audio interface for multichannel recording and playback.

Does the Qu-5D support SD recording?

Yes. The Qu-5D supports up to 16-channel recording at 96kHz or 32-channel recording at 48kHz via SD card.

Is the Allen & Heath Qu-5D suitable for live sound?

Yes. Its 38 inputs, 24 outputs, motorised faders, 96kHz processing, Dante networking and flexible routing make it suitable for professional live sound.

Can the Qu-5D be rack mounted?

Yes. The Qu-5D can be rack mounted in a 19-inch rack using the optional rack-mount kit.
