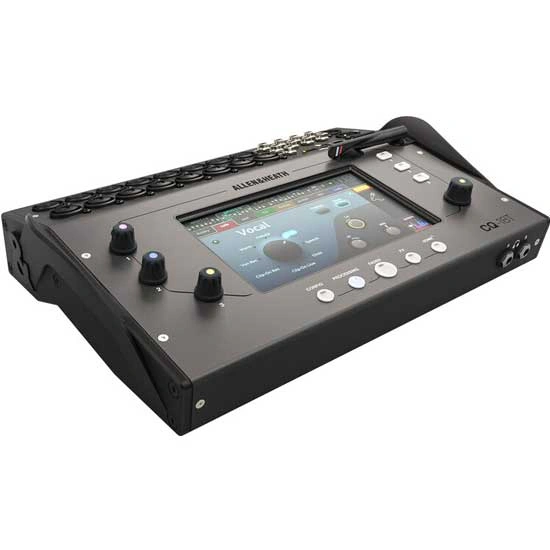

Allen & Heath CQ-18T 18-Input Digital Mixer With Wi-Fi

Description:

The Allen & Heath CQ-18T is an ultra-compact digital mixer designed for live bands, rehearsal spaces, home recording, streaming, speech applications and corporate AV. Combining 96kHz digital processing, intuitive touchscreen control and built-in dual-band Wi-Fi, the CQ-18T delivers professional mixing capabilities in a compact desktop format.

The CQ-18T provides 19 inputs to mix, including 16 mono/linkable channels and 3 stereo channels. Its analogue connectivity includes 8 XLR mic/line inputs, 8 XLR/TRS Combi mic/line inputs and a dedicated stereo line input, giving musicians and engineers flexible options for connecting microphones, instruments and other audio sources.

Designed for fast and intuitive operation, every input channel can be switched between Quick Channel and Complete Channel modes. Quick Channel processing provides simple, application-specific controls for fast setup, while Complete Channel mode provides detailed control over EQ, dynamics and other processing parameters.

The Gain Assistant helps quickly establish suitable input gain levels and continues monitoring during a performance. The Feedback Assistant automatically detects and suppresses problem frequencies using up to 16 filters per output, helping engineers achieve stable monitor mixes with less setup time.

The CQ-18T includes 4 Multi-FX engines with a selection of reverb, delay and modulation effects. It also features 4 DCAs and 4 Mute Groups, making it easy to control groups of channels and quickly mute multiple sources during live performances.

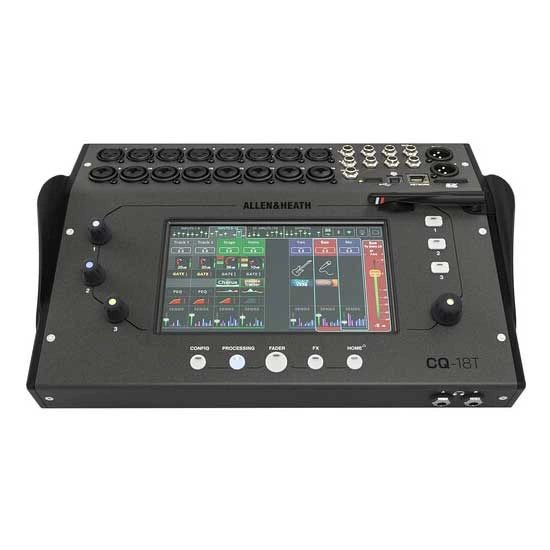

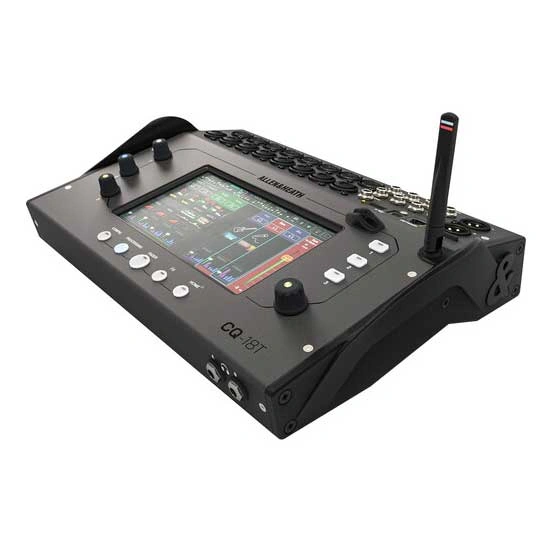

For hands-on control, the CQ-18T features a 7-inch capacitive touchscreen, touchscreen rotary control, 3 configurable SoftRotaries and 3 configurable SoftKeys. Built-in dual-band 2.4GHz/5GHz Wi-Fi allows wireless control using the free CQ MixPad app for Windows, macOS, iOS and Android.

The CQ-18T is also designed for multitrack recording and playback. Its 24x22 USB-B audio interface supports multichannel audio recording, playback and streaming, while the SD card slot supports up to 24x22 channels at 48kHz or 16x16 channels at 96kHz. USB-A provides stereo recording and playback, while Bluetooth provides convenient stereo audio playback from compatible devices.

With 2 XLR Main outputs, 6 TRS monitor outputs and 2 assignable headphone outputs, the CQ-18T provides flexible routing for front-of-house, monitor mixing and recording applications. Its compact design and optional rack-mount kit make the Allen & Heath CQ-18T an excellent choice for portable professional audio setups.

Allen & Heath CQ-18T Features

• 19 Inputs To Mix with 16 Mono/Linkable and 3 Stereo Channels
• 96kHz Input/Output Processing for High-Resolution Digital Audio
• 8 XLR Mic/Line Inputs
• 8 XLR/TRS Combi Mic/Line Inputs
• Stereo Line Input with 2 TRS Connections
• 2 XLR Main Outputs for Stereo Main LR
• 6 TRS Monitor Outputs for Flexible Monitor Mixing
• 2 Assignable TRS Headphone Outputs
• 4 Multi-FX Engines with Reverb, Delay and Modulation Effects
• Quick Channel Mode for Fast and Simplified Processing
• Complete Channel Mode for Detailed Processing Control
• Gain Assistant for Fast and Automatic Gain Setup
• Feedback Assistant with Up to 16 Filters Per Output
• 4 DCAs for Convenient Multi-Channel Level Control
• 4 Mute Groups for Simultaneous Channel Muting
• Automatic Mic Mixer for Speech and Multi-Microphone Applications
• 7-Inch Capacitive Touchscreen with Touchscreen Rotary Control
• 3 Configurable SoftRotaries
• 3 Configurable SoftKeys
• Built-In Dual-Band Wi-Fi with 2.4GHz and 5GHz Operation
• 24x22 USB-B Audio Interface for Multichannel Recording and Playback
• SD Card Multichannel Recording and Playback
• USB-A Stereo Recording and Playback
• Bluetooth Stereo Playback with Dedicated Input Channel
• Dual Footswitch Connection
• RJ45 Network Connection
• CQ MixPad App Control for Windows, macOS, iOS and Android
• Optional Rack-Mount Kit for 19-Inch Rack Installation

Allen & Heath CQ-18T Specifications

Mixing & Processing

• Inputs To Mix: 19
• Input Configuration: 16 Mono/Linkable + 3 Stereo
• Processing: 96kHz Input/Output Processing
• Main Output: Stereo Main LR
• Aux Outputs: 6
• Aux Configuration: Linkable Up To 3 Stereo
• FX Engines: 4 Multi-FX Engines
• DCAs: 4
• Mute Groups: 4
• Automatic Mic Mixer: Available On All Input Channels
• Feedback Assistant: Up To 16 Filters Per Output

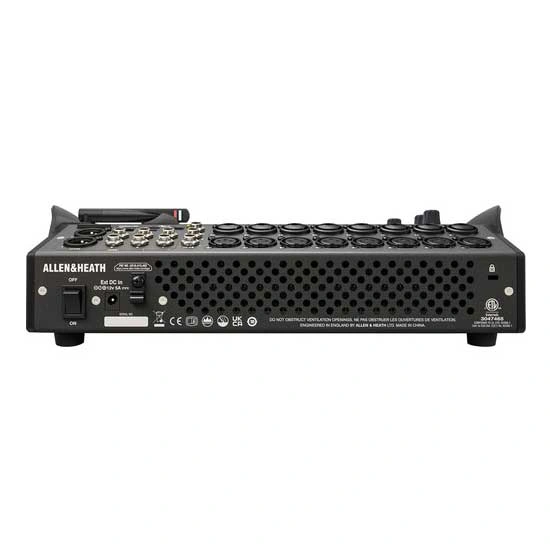

Inputs & Outputs

• Mic/Line Inputs: 8 x XLR
• Combi Inputs: 8 x XLR/TRS
• Stereo Line Input: 1 x Stereo, 2 x TRS
• Main Outputs: 2 x XLR
• Monitor Outputs: 6 x TRS
• Headphone Outputs: 2 x Assignable Stereo TRS
• Footswitch: Single/Dual Connection

USB & Recording

• USB-B Audio Interface: 24x22
• USB-B Sample Rates: 48kHz / 96kHz
• SD Recording: 24x22 At 48kHz / 16x16 At 96kHz
• SD Playback: 24x22 At 48kHz / 16x16 At 96kHz
• USB-A: Stereo Audio Recording, Playback And Data
• Bluetooth: Stereo Playback With Dedicated Input Channel
• SD Card: SDHC, Up To 32GB, UHS-I Class 10

Wireless & Network

• Built-In Wi-Fi: Dual-Band 2.4GHz / 5GHz AC
• Wi-Fi Mode: CQ As Host
• Network Connection: RJ45
• Network Mode: CQ As Client
• Remote Control: CQ MixPad App
• Supported Platforms: Windows / macOS / iOS / Android

Audio Performance

• Sample Rate: 96kHz
• Frequency Response: +0/-0.5dB, 20Hz-20kHz
• Headroom: +18dB
• Internal Operating Level: 0dBu
• Maximum XLR Output: +22dBu
• Latency: Less Than 0.7ms
• Phantom Power: +48V

Input Processing

• Channels: 16 Mono, Stereo Linkable + 3 Stereo
• HPF: 20Hz-2kHz
• Gate: Self-Keyed
• PEQ: 4-Band Fully Parametric With RTA Option
• Compressor: Self-Keyed, RMS/Peak
• Insert Point: Internal FX Unit

Output Processing

• GEQ: 20-Band, 31Hz-16kHz
• PEQ: 4-Band Fully Parametric
• Feedback Assistant: Automatic Feedback Suppression
• Filters: Up To 16 Total
• Compressor: Fully Configurable
• Limiter: Fast/Slow
• Delay: Up To 682ms

Control & Interface

• Display: 7-Inch Capacitive Touchscreen
• Touchscreen Control: Associated Rotary Encoder
• Screen Keys: 5
• SoftRotaries: 3 Configurable
• SoftKeys: 3 Configurable
• Headphone Outputs: 2 Assignable
• Footswitch: Single/Dual

Physical & General

• Power: 12V DC External Power Supply
• Power Supply: 100-240V AC, 50/60Hz Worldwide PSU
• Network: RJ45 Fast Ethernet
• Rack Mounting: Optional Rack-Ear Kit
• Control Apps: CQ MixPad For Windows, macOS, iOS And Android

Most Popular Accessories & Related Items

<

Allen & Heath CQ-20B

$999.99

Allen & Heath Qu-7

$3999.99

Allen & Heath Qu-7D

$4399.99

Allen & Heath Qu-6

$2999.99

Allen & Heath Qu-6D

$3399.99

Allen & Heath Qu-5

$2399.99

Allen & Heath Qu-5D

$2399.99

>

Frequently Asked Questions About The Allen & Heath CQ-18T

How many channels does the Allen & Heath CQ-18T have?

The Allen & Heath CQ-18T provides 19 inputs to mix, including 16 mono/linkable inputs and 3 stereo channels. It features 8 XLR mic/line inputs, 8 XLR/TRS Combi inputs and a dedicated stereo line input.

Does the Allen & Heath CQ-18T have Wi-Fi?

Yes. The CQ-18T features built-in dual-band 2.4GHz and 5GHz Wi-Fi, allowing wireless control through the CQ MixPad app without requiring a separate external wireless access point.

Does the Allen & Heath CQ-18T have USB?

Yes. The CQ-18T includes a 24x22 USB-B audio interface for multichannel recording, playback and streaming. It also provides USB-A for stereo audio recording and playback.

How many outputs does the Allen & Heath CQ-18T have?

The CQ-18T features 2 XLR Main outputs and 6 TRS monitor outputs, plus 2 assignable stereo headphone outputs. The six monitor outputs can be linked to create up to three stereo monitor mixes.

Does the Allen & Heath CQ-18T have built-in effects?

Yes. The Allen & Heath CQ-18T includes 4 built-in Multi-FX engines with reverb, delay and modulation effects. It also includes Gain Assistant, Feedback Assistant, 4 DCAs, 4 Mute Groups and an Automatic Mic Mixer.
