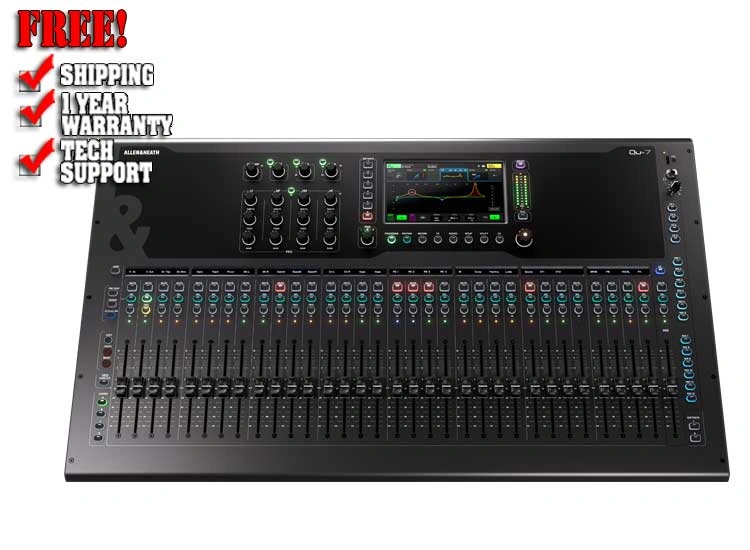

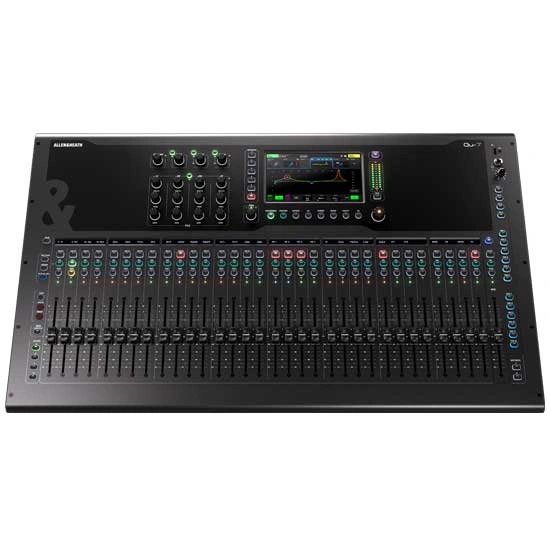

Allen & Heath Qu-7 38-Channel Digital Mixer

Description:

The Allen & Heath Qu-7 is a professional 38-input digital mixer designed for live sound, touring, theatre, houses of worship, corporate events, broadcast and other demanding audio applications. Featuring a powerful 96kHz XCVI processing core, the Qu-7 delivers high-quality digital audio with flexible routing, extensive I/O and intuitive hands-on control.

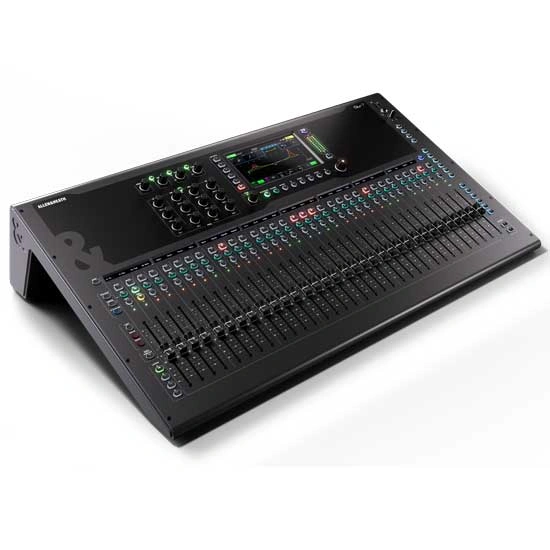

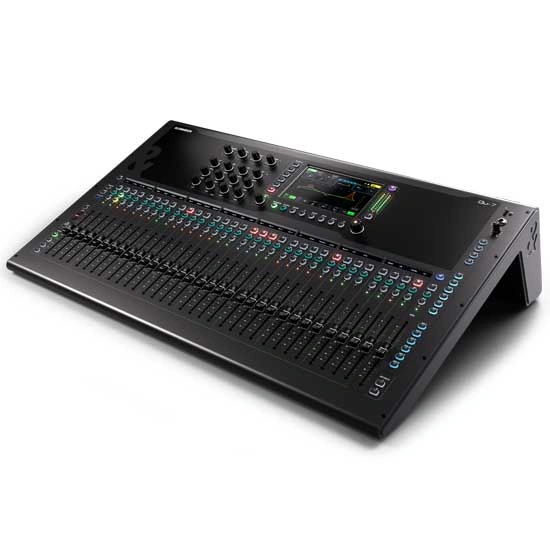

Built for fast and efficient mixing, the Qu-7 features 33 x 100mm motorised faders across four customisable layers, giving engineers quick access to input channels, mixes, FX sends and returns. The 7-inch capacitive touchscreen, dedicated channel controls, configurable chromatic channel meters and eight assignable SoftKeys provide precise control and easy operation in live environments.

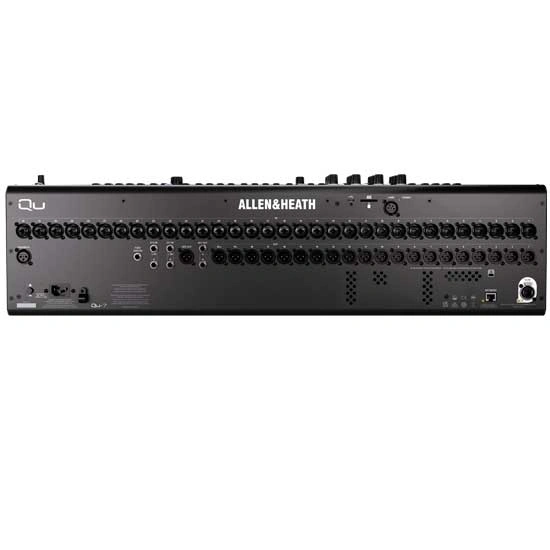

The Qu-7 provides 32 XLR/Jack Combi mic/line inputs, 20 XLR outputs and 2 TRS outputs, along with stereo line inputs, talkback input, AES3 digital output and a stereo headphone output. Its 128x128 Intelligent SLink connection allows the console to be expanded with compatible Allen & Heath Everything I/O devices.

For recording and playback, the Allen & Heath Qu-7 includes a 32x32 USB-C audio interface, USB-A stereo recording and playback, and multichannel SD card recording and playback. This makes the Qu-7 an excellent solution for multitrack recording, virtual soundcheck and computer-based audio production.

Six onboard Multi-FX engines provide high-quality effects processing, while Gain Assistant and Feedback Assistant help simplify setup and manage gain and feedback during live performances. The Qu-7 is also DEEP Processing ready, providing compatibility with advanced processing options.

Combining powerful 96kHz processing, extensive connectivity, motorised fader control, flexible routing and multichannel recording, the Allen & Heath Qu-7 digital mixer is a versatile professional mixing console for live sound and production environments.

Allen & Heath Qu-7 Features

• 38 Inputs to Mix with 32 mono/linkable channels and 3 stereo channels
• 24 Outputs for flexible routing and professional live sound applications
• 96kHz XCVI Processing Core for high-resolution digital audio
• 33 x 100mm Motorised Faders for smooth, hands-on mixing control
• 4 Customisable Fader Layers for quick access to channels, mixes and effects
• 32 XLR/Jack Combi Inputs for microphone and line-level sources
• 20 XLR Outputs for flexible monitor, main and auxiliary connections
• 2 Stereo Line Inputs with TRS connectivity
• 7-inch Capacitive Touchscreen for intuitive navigation and control
• 8 Assignable SoftKeys for customised workflow and quick access to functions
• 6 Multi-FX Engines with dedicated stereo returns
• 12 Mixes including 6 mono/linkable and 6 stereo Aux/Group mixes
• 4 Matrix Mixes for advanced signal routing and system control
• 128x128 Intelligent SLink Port for compatible Allen & Heath I/O expansion
• 32x32 USB-C Audio Interface for multichannel recording and playback
• Multichannel SD Card Recording and Playback for standalone recording workflows
• USB-A Stereo Recording and Playback for convenient audio capture and playback
• DEEP Processing Ready for advanced processing options
• Gain Assistant for quick and consistent input gain setup
• Feedback Assistant for fast feedback detection and management
• 32-Channel Automatic Mic Mixer for speech and multi-microphone applications
• AES3 Stereo Digital Output for digital audio connectivity
• Stereo Headphone Output for monitoring
• Configurable Chromatic Channel Meter LEDs for clear visual level monitoring
• Remote Control using compatible Windows, macOS, iOS and Android applications
• 12V Lamp Socket for console illumination in low-light environments
• Single or Dual Footswitch Connection with configurable operation

Allen & Heath Qu-7 Specifications

Mixing & Processing

• Processing Core: 96kHz XCVI Core
• Inputs to Mix: 38
• Input Configuration: 32 Mono/Linkable + 3 Stereo
• Mixes: 12
• Aux/Group Mixes: 6 Mono/Linkable + 6 Stereo
• Matrix Mixes: 4 Mono/Linkable
• Main Output: Stereo Main LR
• FX Engines: 6 Multi-FX Engines
• FX Returns: 6 Dedicated Stereo Returns
• DEEP Processing: Ready
• System: 38 Input / 28 Bus XCVI Core
• Processing Latency: Less than 0.7ms, local mic input to Main LR

Inputs & Outputs

• Mic/Line Inputs: 32 x XLR/Jack Combi
• Stereo Line Inputs: 2 x Stereo, each with 2 x TRS
• Talkback Input: 1 x XLR
• XLR Outputs: 20
• TRS Outputs: 2
• Digital Output: 1 x AES3 Stereo
• Headphone Output: Stereo
• SLink: 128x128 Intelligent SLink Port

Control & Interface

• Touchscreen: 7-inch Capacitive Touchscreen
• Faders: 33 x 100mm Motorised Faders
• Fader Layers: 4 Customisable Layers
• SoftKeys: 8 Assignable
• Channel Metering: Configurable Chromatic Channel Meter LEDs
• Network: TCP/IP Ethernet
• Remote Control: Windows / macOS / iOS / Android
• Footswitch: Single or Dual, Momentary or Latching

Recording & Playback

• USB-C Audio Interface: 32x32 Multichannel
• USB-C Send: 32 Channels at 48/96kHz, 24-bit
• USB-C Return: 32 Channels at 48/96kHz, 24-bit
• USB-A Stereo Recording: 2 Channels, WAV, 48/96kHz, 24-bit
• USB-A Playback: 1/2 Channels, WAV, 44.1/48/96kHz, 16/24-bit
• SD Recording: 16 Channels at 96kHz / 32 Channels at 48kHz
• SD Playback: 16 Channels at 96kHz / 32 Channels at 48kHz
• Audio Format: WAV, 24-bit for Multitrack
• SD Card: SDHC, up to 32GB, UHS-I Class 10

Audio Performance

• Sample Rate: 96kHz
• Frequency Response: +0/-0.5dB, 20Hz-20kHz
• Headroom: +18dB
• Internal Operating Level: 0dBu
• THD+N: 0.002% at unity gain
• Maximum XLR Output: +22dBu
• Phantom Power: +48V
• Latency: Less than 0.7ms, local mic input to Main LR

Input Processing

• Trim: -24dB to +24dB
• High Pass Filter: 20Hz-2kHz, 12/18/24dB per octave
• Gate: Patchable Sidechain
• Insert: Fully Patchable
• PEQ: 4-Band Fully Parametric
• Compressor: Patchable Sidechain with DEEP Options
• Channel Delay: Up to 341ms

Mix Processing

• Insert: Fully Patchable
• Graphic EQ: 28-Band, 31Hz-16kHz
• Feedback Assistant: Up to 16 Filters per Mix
• Feedback Detection: 8 Concurrent Detectors
• PEQ: 4-Band Fully Parametric
• Compressor: Fully Configurable
• Processing Delay: Up to 682ms

Networking & Expansion

• SLink Connection: Neutrik EtherCON / RJ45
• SLink dSnake Mode: 40 Input, 20 + 40 ME Output Channels at 48kHz
• SLink DX Mode: 32 Input / 32 Output Channels at 96kHz
• SLink GigaACE/GX: 128 Input / 128 Output Channels at 96kHz
• Inputs: Fully Patchable
• Outputs: Fully Patchable
• Clocking: Assignable as Audio Clock Source

Physical & General

• Dimensions: 609 x 476 x 213mm
• Dimensions: 24 x 18.7 x 8.4 inches
• Weight: 13.5kg / 29.8lbs
• Power: IEC Mains Connection with Worldwide PSU
• Network: RJ45
• Lamp Socket: 12V

Most Popular Accessories & Related Items

<

Allen & Heath Qu-7D

$4399.99

Allen & Heath Qu-5

$2399.99

Allen & Heath Qu-5D

$2399.99

Allen & Heath Qu-6

$2999.99

Allen & Heath Qu-6D

$3399.99

>

Frequently Asked Questions About The Allen & Heath Qu-7

How many channels does the Allen & Heath Qu-7 have?

The Allen & Heath Qu-7 provides 38 inputs to mix, including 32 mono/linkable channels and 3 stereo channels. It also features 32 XLR/Jack Combi mic/line input sockets.

How many faders does the Allen & Heath Qu-7 have?

The Qu-7 features 33 x 100mm motorised faders across 4 customisable channel strip layers, providing quick and hands-on control of inputs, mixes, FX and other functions.

Does the Allen & Heath Qu-7 have USB-C?

Yes. The Qu-7 includes a 32x32 USB-C audio interface for multichannel recording and playback at 48kHz or 96kHz, making it suitable for computer-based recording and production.

How many outputs does the Allen & Heath Qu-7 have?

The Allen & Heath Qu-7 features 20 XLR output sockets and 2 TRS output sockets, plus an AES3 stereo digital output and stereo headphone output. The mixer provides 24 outputs in total.

Does the Allen & Heath Qu-7 have Dante?

The standard Allen & Heath Qu-7 does not include Dante. The Qu-7D variant adds a dedicated 16x16 Dante interface supporting 48kHz and 96kHz operation for integration with Dante-enabled audio systems.
