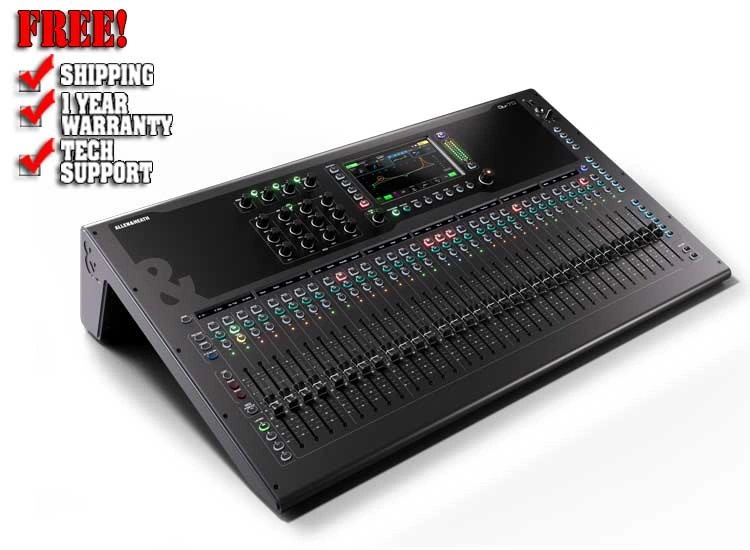

Allen & Heath Qu-7D 38-Channel Digital Mixer With Dante

Description:

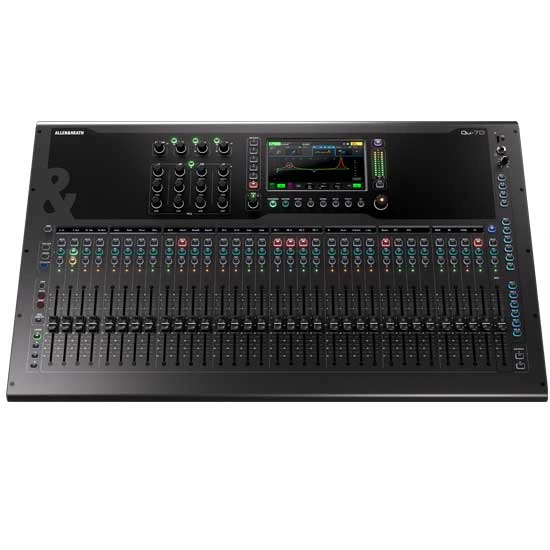

The Allen & Heath Qu-7D is a professional 38-input digital mixer with built-in Dante connectivity, designed for live sound, touring, theatre, houses of worship, corporate events, broadcast, installations and professional AV applications. Powered by a high-performance 96kHz XCVI processing core, the Qu-7D combines premium audio performance with flexible routing, extensive I/O and intuitive hands-on control.

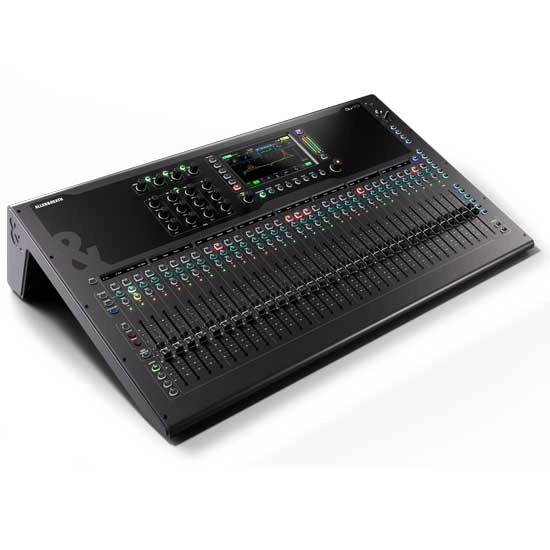

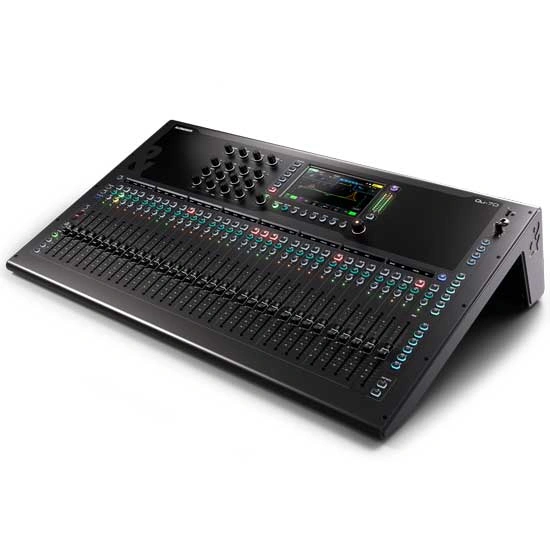

The Qu-7D features 33 x 100mm motorised faders across four customisable channel strip layers, giving engineers fast access to input channels, mixes, FX sends, FX returns and other important mixing functions. A 7-inch capacitive touchscreen, dedicated channel controls, configurable chromatic channel meters and eight assignable SoftKeys provide an efficient and intuitive workflow for live mixing.

With 32 XLR/Jack Combi mic/line inputs, 20 XLR outputs, two TRS outputs, two stereo line inputs, an XLR talkback input and AES3 stereo digital output, the Allen & Heath Qu-7D provides extensive connectivity for professional audio systems. The integrated 128x128 Intelligent SLink port also allows connection to compatible Allen & Heath Everything I/O expanders.

A major advantage of the Qu-7D is its integrated 16x16 Dante interface, supporting 48kHz and 96kHz operation. The dedicated locking EtherCon Dante connection allows the mixer to integrate with Dante-enabled audio equipment and larger networked audio systems without requiring an additional external Dante interface.

For recording and playback, the Qu-7D includes a 32x32 USB-C audio interface, USB-A stereo recording and playback, and SD card multichannel recording and playback. These features make the Qu-7D suitable for multitrack recording, virtual soundcheck, DAW production and live recording workflows.

The Qu-7D also includes 6 Multi-FX engines with dedicated stereo returns, Gain Assistant and Feedback Assistant, while its DEEP Processing-ready architecture provides access to advanced compatible processing options. The combination of 96kHz processing, Dante networking, flexible I/O, motorised faders and multichannel recording makes the Allen & Heath Qu-7D a powerful digital mixing console for professional live sound and installed audio applications.

Allen & Heath Qu-7D Features

• 38 Inputs to Mix with 32 mono/linkable channels and 3 stereo channels
• 24 Outputs for flexible professional audio routing
• 96kHz XCVI Processing Core for high-resolution digital audio
• 16x16 Dante Interface with 48kHz and 96kHz operation
• Dedicated Locking EtherCon Dante Port for networked audio connectivity
• 33 x 100mm Motorised Faders for hands-on mixing control
• 4 Customisable Channel Strip Layers for flexible workflow
• 32 XLR/Jack Combi Inputs for microphone and line-level sources
• 20 XLR Outputs for main, monitor and auxiliary connections
• 2 Stereo Line Inputs with TRS connectivity
• 7-inch Capacitive Touchscreen for intuitive operation
• 8 Assignable SoftKeys for customised control
• 6 Multi-FX Engines with dedicated stereo return channels
• 12 Mixes including mono/linkable and stereo Aux/Group mixes
• 4 Mono/Linkable Matrix Mixes
• 128x128 Intelligent SLink Port for Everything I/O expansion
• 32x32 USB-C Audio Interface for multichannel recording and playback
• SD Card Multichannel Recording and Playback
• USB-A Stereo Recording and Playback
• DEEP Processing Ready for advanced processing options
• Gain Assistant for easier input gain setup
• Feedback Assistant for feedback detection and management
• 32-Channel Automatic Mic Mixer
• AES3 Stereo Digital Output
• Stereo Headphone Output
• Remote Control via Windows, macOS, iOS and Android apps
• Configurable Chromatic Channel Meter LEDs
• Configurable Single/Dual Footswitch Connection
• 12V Lamp Socket

Allen & Heath Qu-7D Specifications

Mixing & Processing

• Processing Core: 96kHz XCVI Core
• Inputs to Mix: 38
• Input Configuration: 32 Mono/Linkable + 3 Stereo
• Mixes: 12
• Aux/Group Mixes: 6 Mono/Linkable + 6 Stereo
• FX Sends: 4
• Matrix Mixes: 4 Mono/Linkable
• Main Output: Stereo Main LR
• FX Engines: 6 Multi-FX Engines
• FX Returns: 6 Dedicated Stereo Returns
• DEEP Processing: Ready
• Processing Latency: Less than 0.7ms

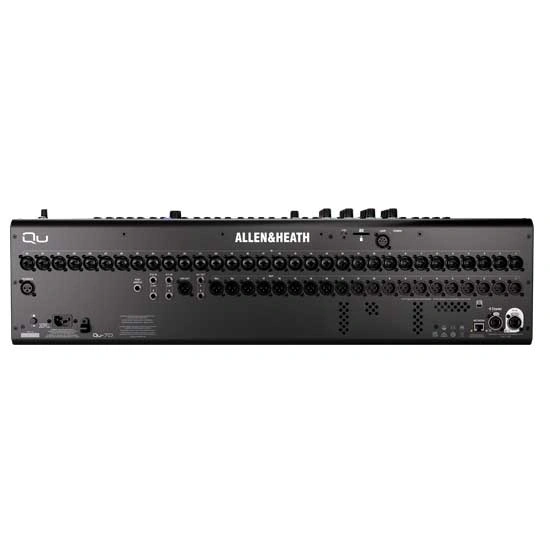

Inputs & Outputs

• Mic/Line Inputs: 32 x XLR/Jack Combi
• Stereo Line Inputs: 2 x Stereo, each with 2 x TRS
• Talkback Input: 1 x XLR
• XLR Outputs: 20
• TRS Outputs: 2
• Digital Output: 1 x AES3 Stereo
• Headphone Output: Stereo
• SLink: 128x128 Intelligent SLink Port

Dante Networking

• Dante Interface: 16x16
• Dante Sample Rates: 48kHz / 96kHz
• Dante Connection: Dedicated Locking EtherCon Port
• Dante Networking: Compatible with Dante-enabled audio equipment and networks

Control & Interface

• Touchscreen: 7-inch Capacitive Touchscreen
• Faders: 33 x 100mm Motorised Faders
• Fader Layers: 4 Customisable Channel Strip Layers
• SoftKeys: 8 Assignable
• Channel Metering: Configurable Chromatic Channel Meter LEDs
• Network: RJ45 Ethernet
• Remote Control: Windows / macOS / iOS / Android
• Footswitch: Single or Dual, Momentary or Latching

Recording & Playback

• USB-C Audio Interface: 32x32 Multichannel
• USB-C Audio: 32x32 at 48/96kHz
• USB-A: Stereo Audio Recording and Playback
• SD Recording: 16 Channels at 96kHz / 32 Channels at 48kHz
• SD Playback: 16 Channels at 96kHz / 32 Channels at 48kHz
• Audio Format: WAV

Audio Performance

• Sample Rate: 96kHz
• Variable Bit Depth: Up to 96-bit
• Frequency Response: +0/-0.5dB, 20Hz-20kHz
• Headroom: +18dB
• Internal Operating Level: 0dBu
• THD+N: 0.002% at unity gain
• Maximum XLR Output: +22dBu
• Phantom Power: +48V
• Latency: Less than 0.7ms

Input Processing

• Trim: -24dB to +24dB
• High Pass Filter: 20Hz-2kHz, 12/18/24dB per octave
• Gate: Patchable Sidechain
• Insert: Fully Patchable
• PEQ: 4-Band Fully Parametric
• Compressor: Patchable Sidechain with DEEP Options
• Channel Delay: Up to 341ms

Mix Processing

• Insert: Fully Patchable
• Graphic EQ: 28-Band, 31Hz-16kHz
• Feedback Assistant: Up to 16 Filters per Mix
• Feedback Detection: 8 Concurrent Detectors
• PEQ: 4-Band Fully Parametric
• Compressor: Fully Configurable
• Processing Delay: Up to 682ms

Physical & General

• Dimensions: 609 x 476 x 213mm
• Dimensions: 24 x 18.7 x 8.4 inches
• Weight: 13.5kg / 29.8lbs
• Power: IEC Mains Connection with Worldwide PSU
• Network: RJ45
• Lamp Socket: 12V

Most Popular Accessories & Related Items

<

Allen & Heath Qu-7

$3999.99

Allen & Heath Qu-5

$2399.99

Allen & Heath Qu-5D

$2399.99

Allen & Heath Qu-6

$2999.99

Allen & Heath Qu-6D

$3399.99

>

Frequently Asked Questions About The Allen & Heath Qu-7D

How many channels does the Allen & Heath Qu-7D have?

The Allen & Heath Qu-7D provides 38 inputs to mix, including 32 mono/linkable channels and 3 stereo channels. It also features 32 XLR/Jack Combi mic/line input sockets.

How many faders does the Allen & Heath Qu-7D have?

The Qu-7D features 33 x 100mm motorised faders across 4 customisable channel strip layers, providing fast and hands-on control of inputs, mixes, FX and other functions.

Does the Allen & Heath Qu-7D have Dante?

Yes. The Allen & Heath Qu-7D includes a dedicated 16x16 Dante interface supporting 48kHz and 96kHz operation. Its locking EtherCon connection allows integration with Dante-enabled audio equipment and networked audio systems.

Does the Allen & Heath Qu-7D have USB-C?

Yes. The Qu-7D includes a 32x32 USB-C audio interface for multichannel recording and playback at 48kHz or 96kHz, making it suitable for DAW recording, production and virtual soundcheck applications.

How many outputs does the Allen & Heath Qu-7D have?

The Allen & Heath Qu-7D features 20 XLR output sockets and 2 TRS output sockets, plus an AES3 stereo digital output and stereo headphone output. The mixer provides 24 outputs in total.
