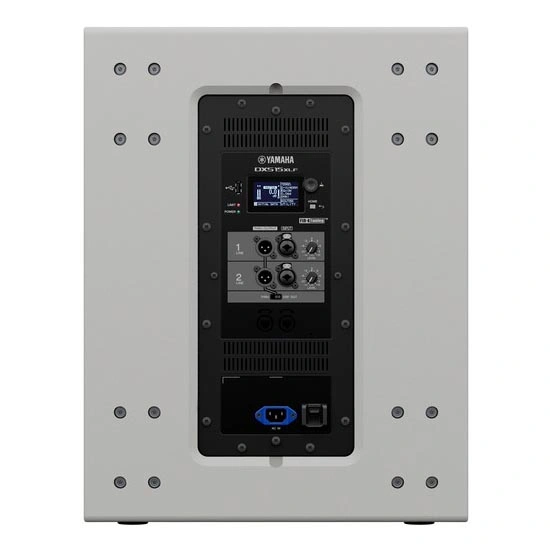

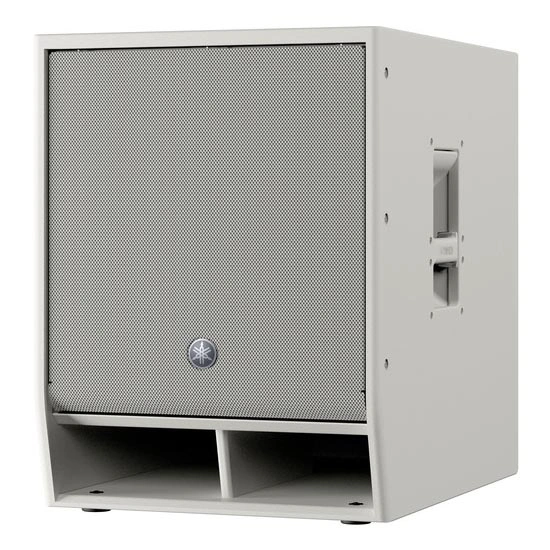

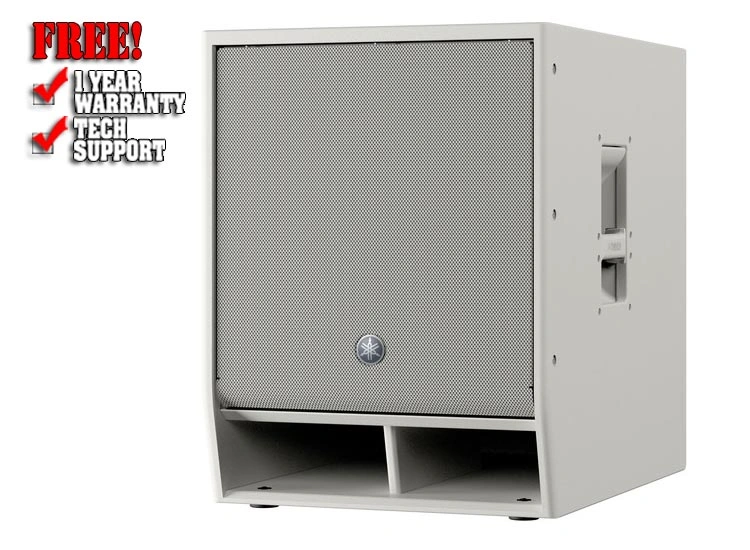

Yamaha DXS15XLF 15-inch 1600W Powered Subwoofer (White)

Description:

Perfectly suited for use with DZR full-range speakers, the DXS15XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.

Powerful DSP for flexible control

Like the full-range DZR models, the DXS XLF subwoofers are also driven by 96kHz high power DSP processors and utilize the dynamic EQ. Onboard D-XSUB LF processing gives you total management of your lower frequencies with NORMAL mode set for ideally balanced low-frequency response, while BOOST mode provides a tighter and more focused bass with some extra punch. XTENDED LF mode drops the low-end frequencies down even further for thunderous bottom end that delivers a low frequency extension unheard of from a cabinet of this size. Usually the higher the output, the more difficult it is to manage low frequency energy directivity, and significant stage-side sound pressure levels can seriously sabotage your monitoring, but with DXS XLF setups consisting of two or more subwoofers, selecting the Cardioid Mode effectively decreases the sound pressure on stage while increasing the bottom-end output directed towards the audience, resulting in a much cleaner stage monitoring environment. Without a doubt, your DZR full-range system will reach new performance heights when used with the pronounced, powerful lows of DXS XLF active subwoofers.

Dante-equipped for sophisticated capability with simple connectivity

Just like the DZR Series, each DXS XLF model comes in a Dante-equipped "D" version enabling smart system integration with Yamaha consoles and other Dante devices via the Dante I/O (2in/2out) which also features SRC (sample rate conversion) allowing 48kHz device compatibility. Patching is simplified considerably with Yamaha CL/QL digital mixing consoles from the I/O device display, while TF console users can select Quick Config for surprisingly fast, easy set up and operation of a sophisticated sound reinforcement system. Combining the Analog I/O with Dante I/O opens up countless routing and system configuration options, while the Dante break-IN and break-OUT function can add even more flexibility by acting as a simple I/O box. What's more, Yamaha's customizable control panel software "ProVisionare Control" for windows and "ProVisionare Touch" for iPad are also Dante compatible, adding more simple remote management of your sound reinforcement system.

Acoustics and utility

New Yamaha proprietary transducers with a durable die cast aluminum frame and 4" voice coil are crucial to achieving such impressive low frequency response, even at the highest output levels. A dual damper also helps to realize extraordinarily high linearity of the low frequencies by mitigating unwanted vibration during extreme output levels.

Durable, portable, and road-ready

DXS XLF enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come. Additionally, the new, easy-to-grip aluminum handle, optional SPW1 wheel kit, and SPCVR speaker covers provide additional safety, portability, and peace of mind when you're on the road.

Yamaha DXS15XLF 15-inch 1600W Powered Subwoofer (White) Features:

• Powered 15" subwoofer with 4" Voice Coil
• Maximum 136dB SPL and 33Hz-150Hz frequency range is ideal for today's sound engineering demands
• High power 1600W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-definition sound with super low latency
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• Equipped with D-XSUB processing and cardioid mode capability
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
• Durable Black or White finish

Yamaha DXS15XLF 15-inch 1600W Powered Subwoofer (White) Specifications:

• Speaker type : Powered Subwoofer, bass-reflex
• Frequency range (-10dB) : 33Hz - 150Hz
• Components
  • LF : 15" Cone, 4" Voice Coil, Ferrite magnet
• Sampling frequency rate Internal : 96kHz and FIR Filter
• A/D D/A Converters : 96kHz AD/DA
• Maximum output level (1m; on axis) : 136dB SPL *1
• Power rating
  • Dynamic : 1600W *2
  • Burst (20ms) : 1300W
  • Continuous : 1200W
• I/O Connectors
  • Analog I/O : Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
  • Others : USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC : IEC AC inlet x1 (V-Lock)
• Amplifier class : Class-D
• Cooling : Fan cooling, Variable speeds
• Power consumption : 40W (Idle), 180W (1/8)
• Handle : Aluminium die-cast, Side x2
• Dimensions
  • Width : 450 mm (17.7")
  • Height : 587 mm (23.1") (with rubber feet)
  • Depth : 600 mm (23.6")
• Net weight : 40.0kg (88.2lbs)
• Options : Cover: SPCVR-DXS15X, Caster: SPW-1
• Others : Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
• Pole socket : Ø35 mm (depth 80mm), M20 Threaded (depth 25mm)

Most Popular Accessories & Related Items

<

Yamaha DXS15XLF

$1311.99

Yamaha DXS18XLF

$1391.99

Yamaha DXS12mkII

$775.99

Yamaha DXS18

$1227.99

>

Frequently Asked Questions (FAQ)

What is the power output of the Yamaha DXS15XLF (White)?

The Yamaha DXS15XLF (White) delivers up to 1600W of Class-D power, ensuring deep, powerful bass performance for professional audio applications.

Is the Yamaha DXS15XLF (White) good for DJs and live events?

Yes, it is designed for DJs, live concerts, and event setups, offering strong low-frequency response and reliable high-output performance.

What size woofer is used in this subwoofer?

The Yamaha DXS15XLF (White) features a 15-inch high-performance woofer that delivers tight, punchy, and accurate bass.

Is there any performance difference between white and black models?

No, both the white and black versions have identical specifications and performance. The only difference is the color finish.

What type of amplifier does the Yamaha DXS15XLF use?

It uses a high-efficiency Class-D amplifier that provides powerful output while maintaining low heat and energy consumption.

Can it be used with professional PA systems?

Yes, it integrates seamlessly with professional PA systems and is widely used in studios, stages, and large event venues.
