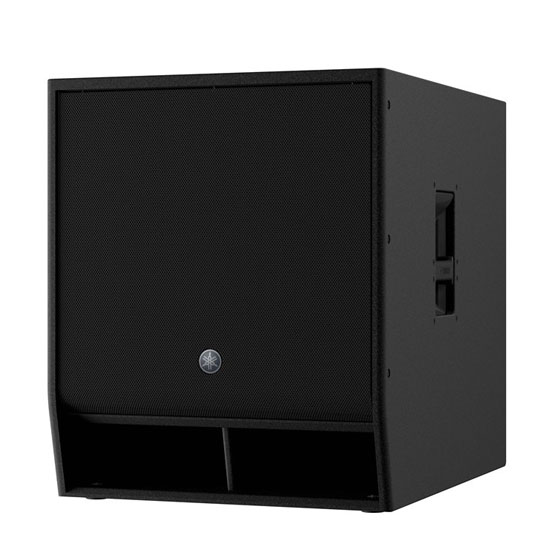

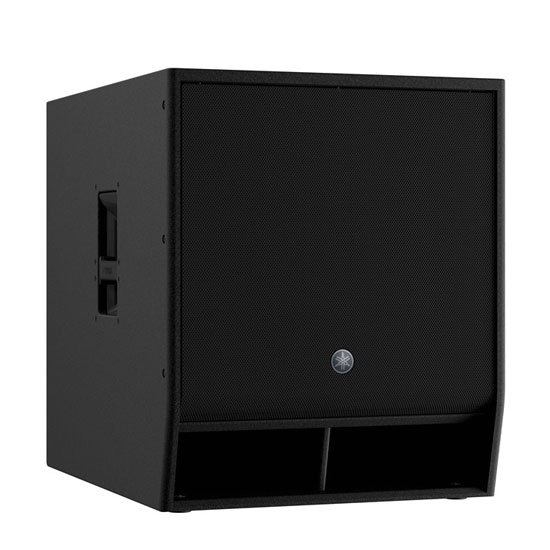

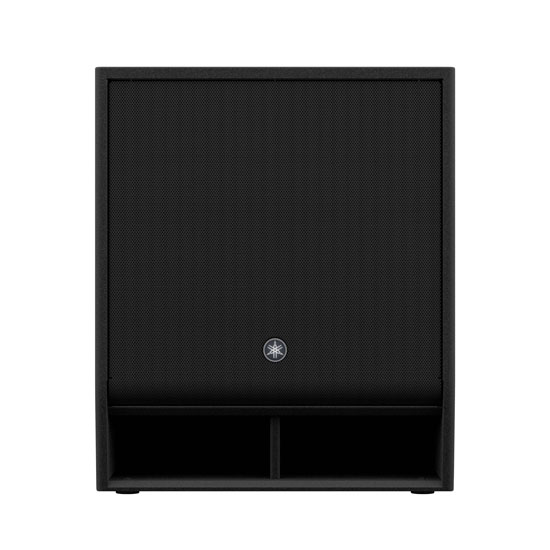

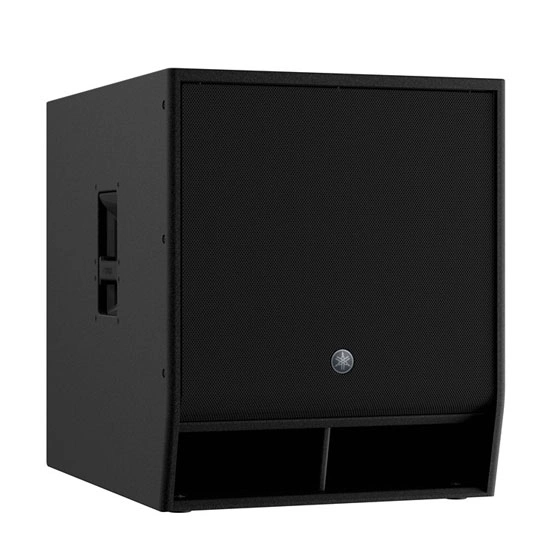

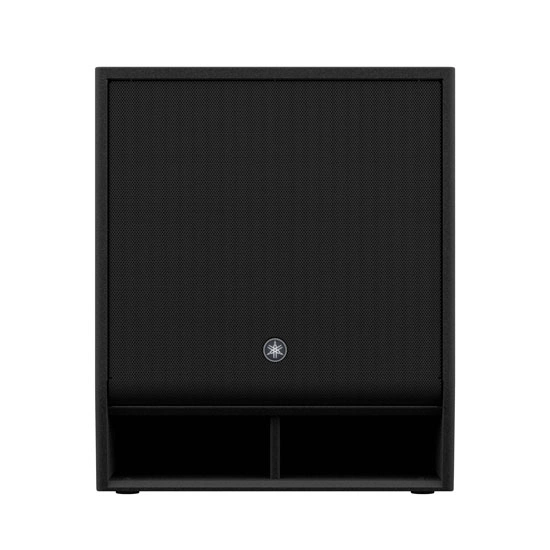

Yamaha DXS18XLF 1600W 18" Powered Subwoofer (Black)

Perfectly suited for use with DZR full-range speakers, the DXS18XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.

Features:

• Powered 18" subwoofer with 4" Voice Coil
• Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today's sound engineering demands
• High power 1600W Class-D amplifier module
• 96kHz DSP for true high-definition sound with super low latency
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• Equipped with D-XSUB processing and cardioid mode capability
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

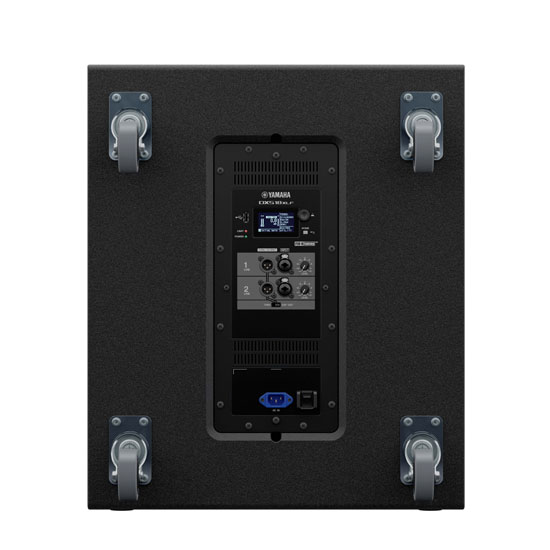

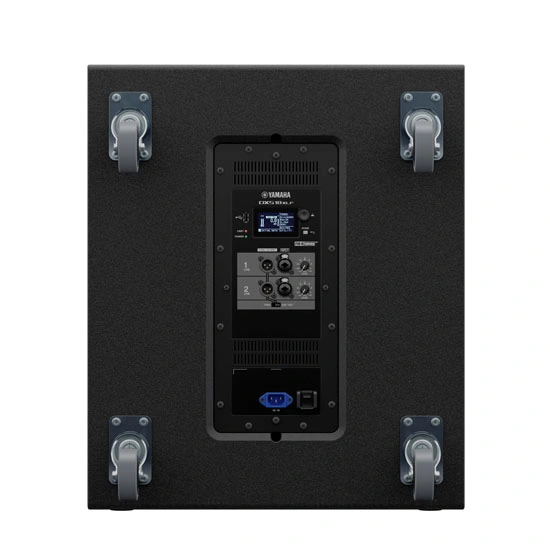

• Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
• Durable Black or White finish

Specifications:

• Speaker type : Powered Subwoofer, bass-reflex
• Frequency range (-10dB) : 30Hz - 150Hz

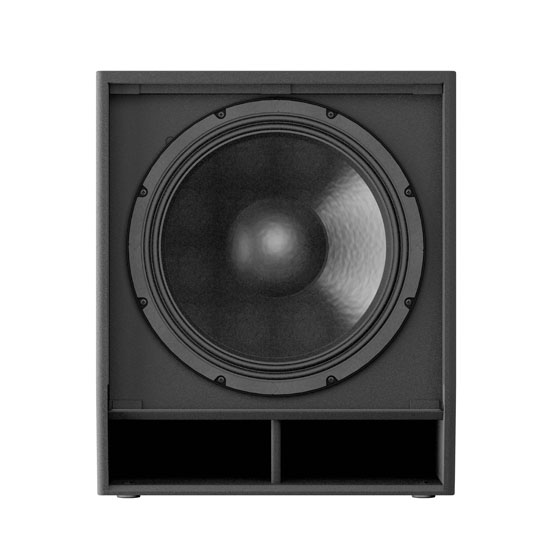

• Components LF : 18" Cone, 4" Voice Coil, Ferrite magnet
• Sampling frequency rate
  • Internal : 96kHz and FIR Filter
• A/D D/A Converters : 96kHz AD/DA
• Maximum output level (1m; on axis) : 136dB SPL *1
• Power rating
  • Power rating : 1600W *2
  • Burst (20ms) : 1300W
  • Continuous : 1200W

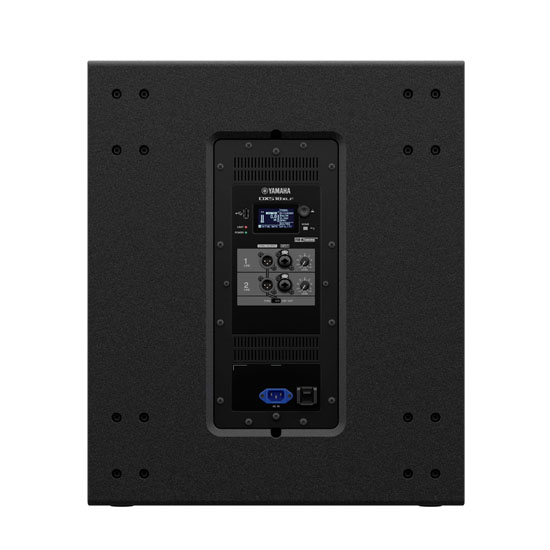

• I/O Connectors
  • Analog I/O : Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kO, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
  • Others : USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC : IEC AC inlet x1 (V-Lock)
• Amplifier class : Class-D
• Cooling : Fan cooling, Variable speeds
• Power consumption : 40W (Idle), 180W (1/8)
• Handle : Aluminium die-cast, Side x2
• Dimensions
• W : 550 mm (21.7")
• H : 657 mm (25.9") (with rubber feet)
• D : 720 mm (28.3")
• Net weight : 48.9kg (107.8lbs)
• Options : Cover: SPCVR-DXS18X, Caster: SPW-1
• Others : Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
• Pole socket : F35 mm (depth 80mm), M20 Threaded (depth 25mm)
