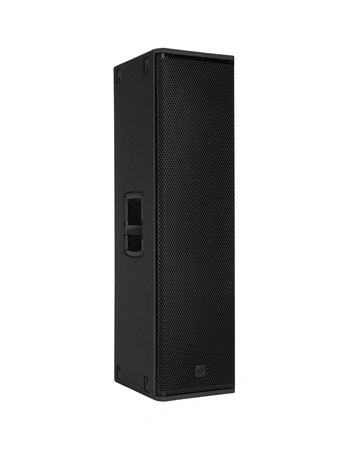

RCF NXW 44-A

ACTIVE TWO-WAY COLUMN SPEAKER

• Up to 135 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 50° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver

The NXW 44-A is a professional line-array column active loudspeaker, expertly engineered to deliver exceptional audio performance for bands, DJs, clubs, and rental companies. Combining premium transducers with a powerful 2-channel 2,100W Class-D amplifier, it delivers precise 100° x 25° coverage and an impressive maximum SPL of up to 135 dB, ensuring consistent, high-impact sound across the listening area.

Its advanced two-way design features three 10" neodymium woofers for extended low-frequency performance and a 3" high-frequency compression driver mounted on a precision waveguide, providing outstanding clarity and vocal intelligibility. With a frequency response extending down to 45 Hz, the NXW 44-A performs confidently as a stand-alone full-range speaker, while pairing it with subwoofers unlocks powerful, full-range output suitable for medium-sized concerts and professional DJ systems.

Designed for flexibility, the NXW 44-A can be flown, ground-stacked, or coupled with another NXW 44-A to extend vertical coverage and increase output for larger venues and wider audiences.

Advanced FiRPHASE and Bass Motion Control DSP technologies from RCF ensure phase-accurate sound reproduction, exceptional transparency, and deep, controlled bass at any volume level.

Built for the road, the tour-ready plywood cabinet offers outstanding durability while remaining easy to transport. Integrated dedicated rigging points allow for fast, secure installation in both portable and fixed sound reinforcement applications.

RCF NXW 44-A Features

• Up to 135 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 50° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver
• 3 x 10" High Power Neodymium Woofers
• 45-20000 Hz linear Frequency Response
• Bass Motion Control and FiRPHASE processing
• 8 x M8 Rigging Points and 8 x Quick Lock
• IP Rated Powercon TRUE1 TOP IN/OUT

RCF NXW 44-A Specification

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 45 Hz - 20000 Hz
• Max SPL @ 1m: 135 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 50°

TRANSDUCERS

• Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
• Woofer: 3 x 10'' neo, 2.5'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 800
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Linear/2 Speakers/High-Pass presets, Volume

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 8 x M8, 8 x quick lock
• Handles: 2 side

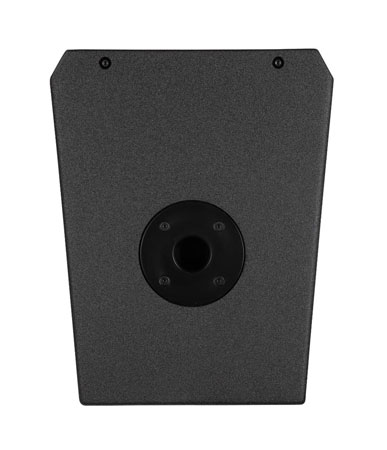

• Pole mount/Cap: 35 mm insert
• Grille: Steel
• Color: Black

SIZE / WEIGHT

• Height: 1080 mm / 42.52 inches
• Width: 297.5 mm / 11.71 inches
• Depth: 373 mm / 14.69 inches
• Weight: 31.55 kg / 69.56 lbs

SHIPPING INFORMATION

• Package Height: 400 mm / 15.75 inches
• Package Width: 1115 mm / 43.9 inches
• Package Depth: 327 mm / 12.87 inches
• Package Weight: 33.65 kg / 74.19 lbs

  How powerful is the NXW 44-A?
A: The speaker is powered by a 2-channel 2,100W Class-D amplifier, delivering up to 135 dB SPL, making it suitable for demanding medium-sized concerts and high-powered DJ systems.

  What drivers does the NXW 44-A use?
A: Its two-way design features three 10" neodymium woofers for deep, punchy low frequencies and a 3" compression driver mounted on a CMD (Constant Matching Design) horn for accurate high-frequency projection.

  What is the coverage pattern?
A: The NXW 44-A provides wide and controlled 100° horizontal x 50° vertical coverage, ensuring consistent sound distribution across the listening area.

  What is the advantage of the CMD horn design?
A: The Constant Matching Design (CMD) horn delivers accurate sound to the audience without tilting the cabinet, allowing for clean installations and consistent coverage.

  Can the NXW 44-A be used without a subwoofer?
A: es. With low-frequency extension down to 45 Hz, the NXW 44-A can operate as a stand-alone full-range speaker. For deeper bass and higher output, pairing with a subwoofer is recommended.

  How can the NXW 44-A be installed?
A: The speaker can be flown, pole-mounted, or used in fixed installations, offering flexible deployment options for various venues and event setups.

  What DSP technologies are included?
A: The NXW 44-A features FiRPHASE and Bass Motion Control DSP technologies from RCF, ensuring phase accuracy, exceptional clarity, and controlled low-frequency performance.
