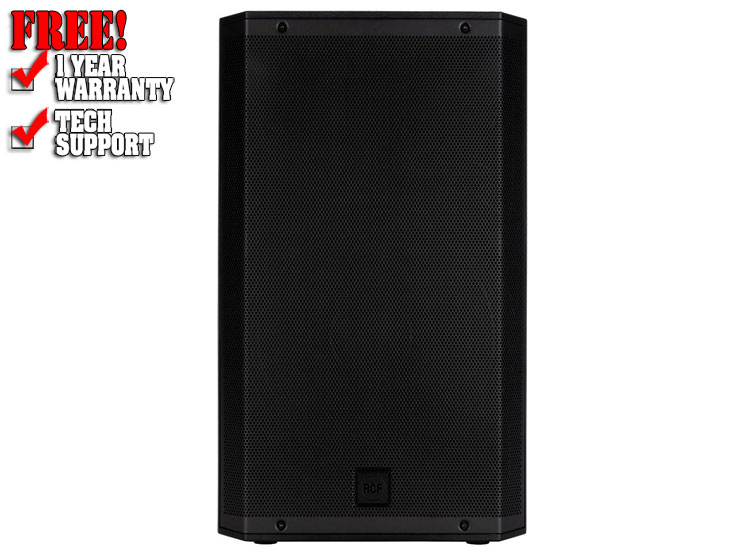

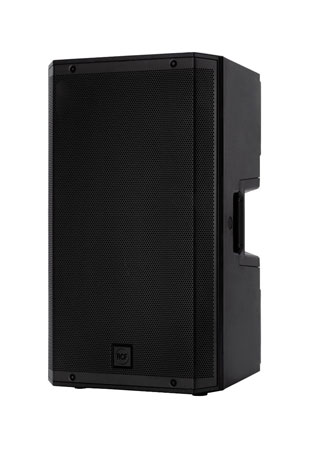

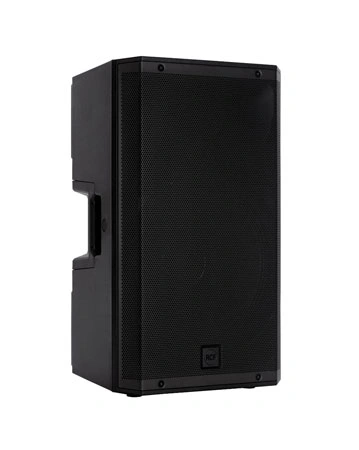

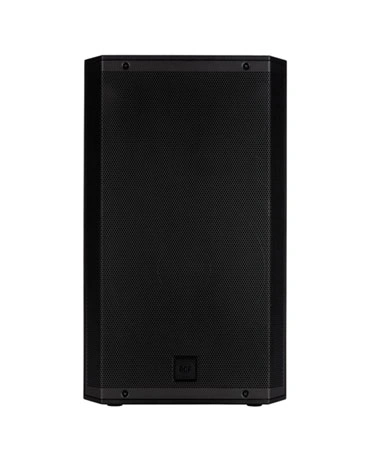

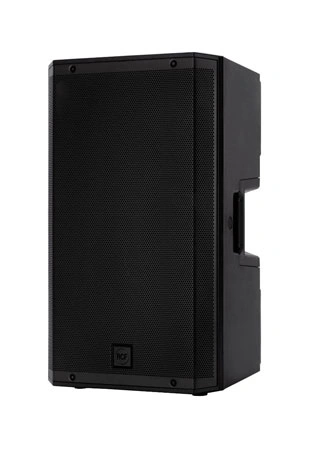

RCF ART 915-AX

PROFESSIONAL ACTIVE BLUETOOTH® SPEAKER

• 2100W Class-D Bi-Amplification
• Bluetooth® stereo audio input, with dual speaker pairing option
• Advanced User Interface w/ touch panel and remote control
• Built-in 6-channel Digital Mixer

ART 915-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 15" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 131 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

RCF ART 915-AX Features

• Built-in 6-channel Digital Mixer
• Advanced User Interface w/ touch panel and remote control

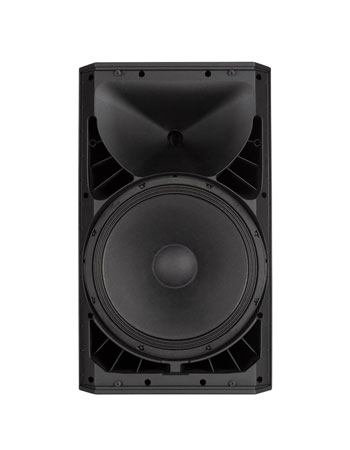

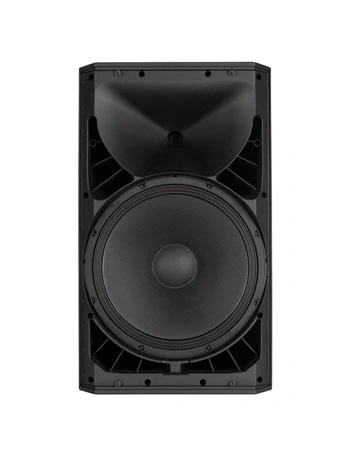

• 1.75" Compression Driver and 15" Woofer
• Up to 131 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• Dual combo preamp with 48V Power and Mini-jack stereo line input
• Bluetooth® stereo audio input, with dual speaker pairing option
• True Resistive Waveguide, FiRPHASE, and Bass Motion Control

RCF ART 915-AX Specification

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 131 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 60°

TRANSDUCERS

• Compression Driver: 1 x 1.0'', 1.75'' v.c
• Woofer: 15'', 2.5'' v.c

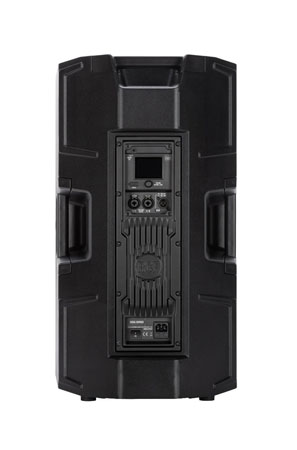

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• connectors: Combo XLR/Jack
• Output connectors: XLR

PROCESSOR SECTION

• Crossover Frequencies: 1600Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: VDE

Electronic specifications

• Frequency Response: 20 Hz - 20 Hz
• THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted

Processing

• Processing Channels: 6
• Signal Processing: 24 Bit
• A/D-D/A conversion: 32 Bit @ 48.0 kHz
• Dynamic range: 110

Inputs

• Mic: 2
• Remote Controlled Storable Gain: Yes
• Gain Range: 0 dB - 42 dB
• Input Noise Level: -114 dBu A-Weighted
• Mic Inputs Impedance: 6 kohm
• Low Cut: 20 Hz - 400 Hz
• Phantom Power +48V: Yes
• Mono Line: 2
• Gain Selection: 0 dB - 22 dB
• Line Input Impedance: 21 kohm
• A/D Dynamic range: 114 dB
• Stereo Line: 1
• Gain Selection: 0 dB - 10 dB
• Stereo Line Input Impedance (kOhm): 13 kohm

Outputs

• Main MIX: 1

Outputs specifications:

• Main Out Impedance: 150 ohm
• Main Out Level: 22 dBu
• D/A Dynamic Range: 114 dB

Compressors:

• RCF Compressors: Compressors on MIC/LINE CH1 & CH2 Inputs

EQ

• Input Channels EQ: 2 Shelving 1
• Description: 3 Band EQ: High and Low band shelving, MID band peak on IN
  5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output,

Internal Effects

• Send Effects: 1

Mastering processors:

• Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.

Standard compliance:

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: PP Composite

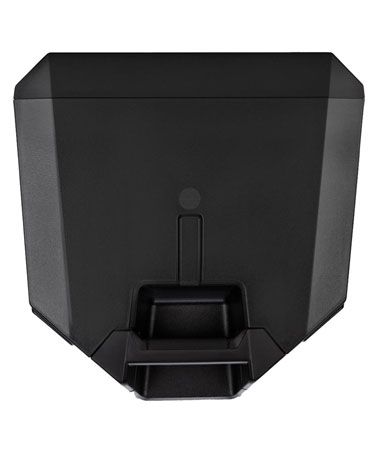

• Hardware: 1 x M10 top, 1 x M10 each side
• Handles: 1 top, 1 each side

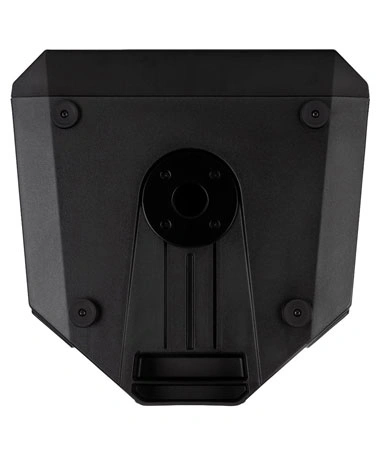

• Pole mount/Cap: 35 mm insert
• Grille: Steel
• Color: Black

SIZE / WEIGHT

• Height: 717 mm / 28.23 inches
• Width: 415 mm / 16.34 inches
• Depth: 410 mm / 16.14 inches
• Weight: 20.4 kg / 44.97 lbs

SHIPPING INFORMATION

• Package Height: 760 mm / 29.92 inches
• Package Width: 470 mm / 18.5 inches
• Package Depth: 475 mm / 18.7 inches
• Package Weight: 24.5 kg / 54.01 lbs

  What is the RCF ART 915-AX?
A: It's a professional active 2-way PA speaker with a built-in 6-channel digital mixer and Bluetooth® audio input, designed for live sound, DJ sets, events, and portable PA use.

  Can two ART 915-AX speakers be used wirelessly in stereo?
A: Yes - the Bluetooth stereo input supports dual-speaker pairing (stereo or dual-mono) with other AX-series speakers.

  Does it have a mixer and onboard effects?
A: Yes - the built-in 6-channel digital mixer includes EQs, compressors, reverb, ducker, and other DSP tools for mic/instrument control.

  Can I control settings from a smartphone?
A: Yes - the RCF LiveRemote app (iOS/Android) lets you adjust mixer, EQ, FX, routing, and Bluetooth settings remotely.

  Can I add a subwoofer?
A: Yes - select CROSSOVER OUT mode and choose an RCF subwoofer preset for proper crossover integration.
