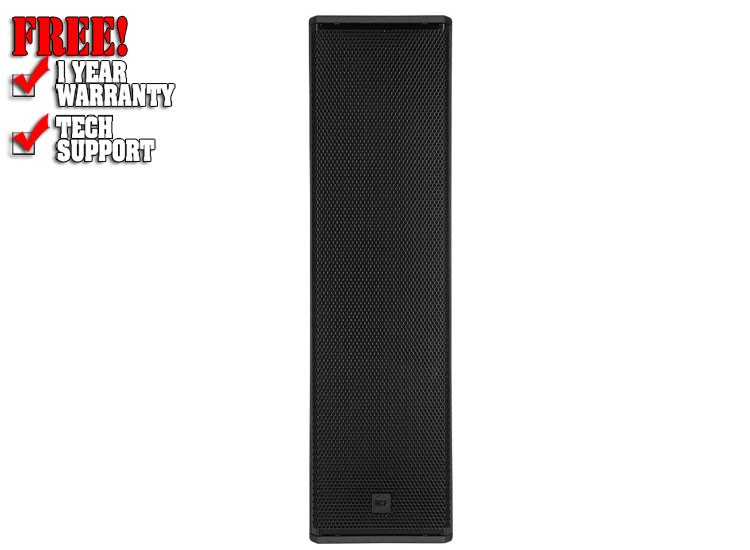

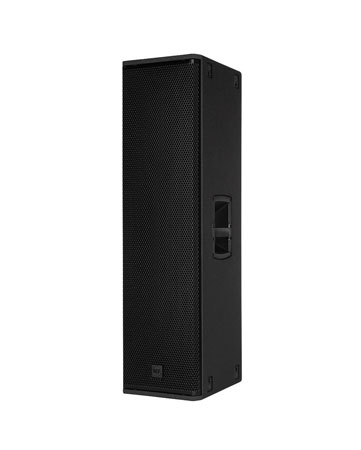

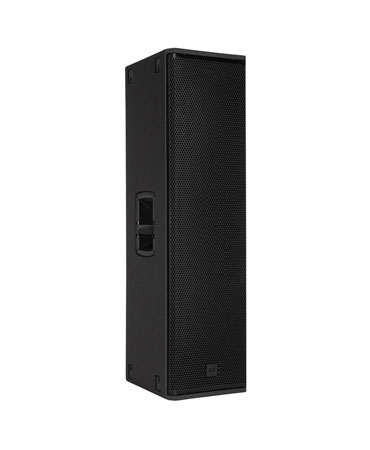

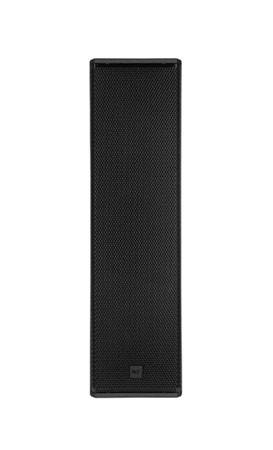

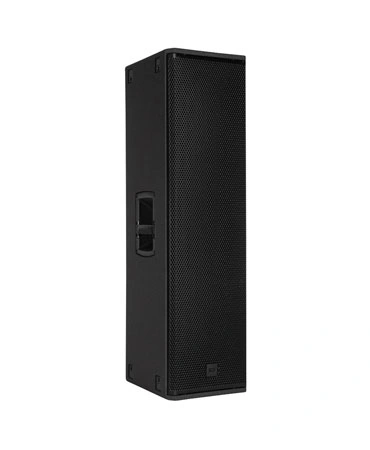

RCF NXL 44-A MK2

ACTIVE TWO-WAY ARRAY

• Up to 135 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 25° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver

The NXL 44-A MK2 is a professional line-array column active loudspeaker, expertly engineered to deliver exceptional audio performance for bands, DJs, clubs, and rental companies. Combining premium transducers with a powerful 2-channel 2,100W Class-D amplifier, it delivers precise 100° x 25° coverage and an impressive maximum SPL of up to 135 dB, ensuring consistent, high-impact sound across the listening area.

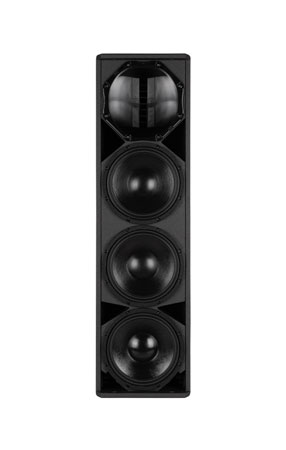

Its advanced two-way design features three 10" neodymium woofers for extended low-frequency performance and a 3" high-frequency compression driver mounted on a precision waveguide, providing outstanding clarity and vocal intelligibility. With a frequency response extending down to 45 Hz, the NXL 44-A MK2 performs confidently as a stand-alone full-range speaker, while pairing it with subwoofers unlocks powerful, full-range output suitable for medium-sized concerts and professional DJ systems.

Designed for flexibility, the NXL 44-A MK2 can be flown, ground-stacked, or coupled with another NXL 44-A MK2 to extend vertical coverage and increase output for larger venues and wider audiences.

Advanced FiRPHASE and Bass Motion Control DSP technologies from RCF ensure phase-accurate sound reproduction, exceptional transparency, and deep, controlled bass at any volume level.

Built for the road, the tour-ready plywood cabinet offers outstanding durability while remaining easy to transport. Integrated dedicated rigging points allow for fast, secure installation in both portable and fixed sound reinforcement applications.

RCF NXL 44-A MK2 Features

• Up to 135 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 25° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver
• 3 x 10" High Power Neodymium Woofers
• 45-20000 Hz linear Frequency Response
• Bass Motion Control and FiRPHASE processing
• 8 x M8 Rigging Points and 8 x Quick Lock
• IP Rated Powercon TRUE1 TOP IN/OUT

RCF NXL 44-A MK2 Specification

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 45 Hz - 20000 Hz
• Max SPL @ 1m: 135 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 25°

TRANSDUCERS

• Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
• Woofer: 3 x 10'' neo, 2.5'' v.c

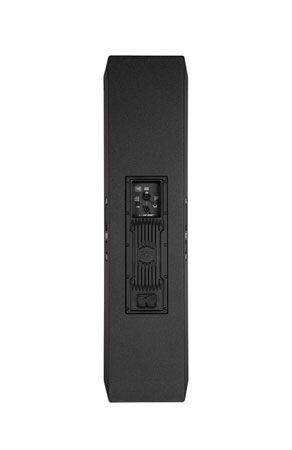

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 800
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Linear/2 Speakers/High-Pass presets, Volume

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 8 x M8, 8 x quick lock

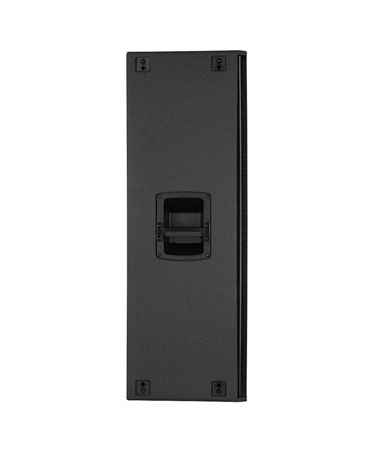

• Handles: 2 side

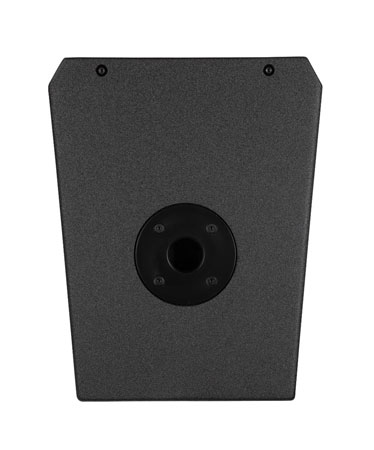

• Pole mount/Cap: 35 mm insert
• Grille: Steel
• Color: Black

SIZE / WEIGHT

• Height: 1080 mm / 42.52 inches
• Width: 297.5 mm / 11.71 inches
• Depth: 373 mm / 14.69 inches
• Weight: 33.4 kg / 73.63 lbs

SHIPPING INFORMATION

• Package Height: 400 mm / 15.75 inches
• Package Width: 1115 mm / 43.9 inches
• Package Depth: 327 mm / 12.87 inches
• Package Weight: 35.5 kg / 78.26 lbs

  What type of speaker is the RCF NXL 44-A MK2?
A: The NXL 44-A MK2 is a high-output active line-array column speaker designed for professional sound reinforcement in live and installed applications.

  Who should use the NXL 44-A MK2?
A: It is ideal for bands, DJs, clubs, houses of worship, venues, and rental companies that require powerful sound with controlled coverage and excellent intelligibility.

  How powerful is the NXL 44-A MK2?
A: The system is powered by a 2-channel 2,100W Class-D amplifier, delivering up to 135 dB SPL, making it suitable for demanding medium-sized events and concerts.

  What speaker components are used?
A: The two-way design includes three 10" neodymium woofers for extended low-frequency performance and a 3" high-frequency compression driver mounted on a precision waveguide for clear, accurate highs.

  Can it be used without a subwoofer?
A: Yes. With a frequency response extending down to 45 Hz, the NXL 44-A MK2 can operate as a stand-alone full-range speaker. For maximum low-end impact, pairing with subwoofers is recommended.

  Can multiple NXL 44-A MK2 speakers be linked together?
A: Yes. Two NXL 44-A MK2 units can be coupled to extend vertical coverage and increase output for larger venues or wider audience areas.

  What applications is the NXL 44-A MK2 best suited for?
A: The NXL 44-A MK2 excels in DJ systems, live bands, club installations, corporate events, houses of worship, and rental applications where high output and premium sound quality are required.
