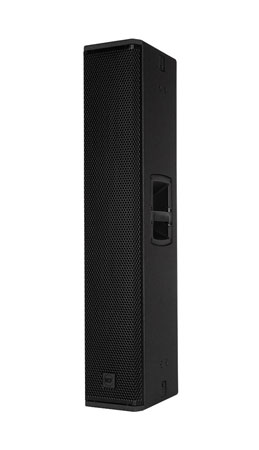

RCF NXL 24-A MK2

ACTIVE TWO-WAY ARRAY

• Up to 132 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 30° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver

The NXL 24-A MK2 is a professional line-array column loudspeaker, engineered from the ground up to deliver exceptional audio performance for bands, DJs, clubs, and rental companies. A best-in-class combination of premium transducers and a 2-channel 2,100W Class-D amplifier delivers powerful, consistent output with up to 132 dB SPL and precise 100° x 30° coverage across the listening area.

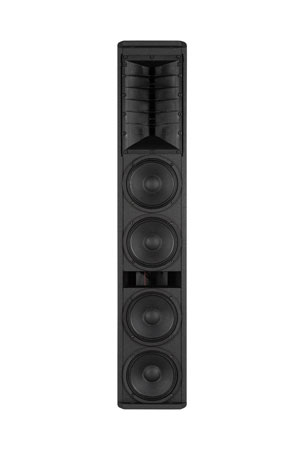

Its advanced two-way design features four 6" neodymium woofers paired with a 3" high-frequency compression driver mounted on an asymmetrical waveguide. This innovative horn design projects sound accurately toward the audience without the need to tilt the enclosure, ensuring even coverage and exceptional clarity.

With an extended low-frequency response down to 60 Hz, the NXL 24-A MK2 performs confidently as a stand-alone speaker, in flown installations, or coupled with a second NXL 24-A MK2 for increased vertical coverage and output. When paired with RCF subwoofers, it delivers full-range performance ideal for medium-sized concerts, DJ systems, and live venues.

Advanced DSP technologies including FiRPHASE and Bass Motion Control ensure phase-accurate reproduction, outstanding vocal intelligibility, and deep, controlled bass at any volume level.

Built for the road, the tour-ready Baltic birch plywood cabinet offers exceptional durability while remaining easy to transport. Integrated dedicated rigging points allow for fast, safe, and secure installation in both portable and fixed applications.

RCF NXL 24-A MK2 Features

• Up to 132 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 100° x 30° Constant Directivity Coverage Angle
• 3" Titanium Neodymium Compression Driver
• 4 x 6" High Power Neodymium Woofers
• 60-20000 Hz linear Frequency Response
• Bass Motion Control and FiRPHASE processing
• 4 x M8 Rigging Points and 4 x Quick Lock

RCF NXL 24-A MK2 Specification

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 60 Hz - 20000 Hz
• Max SPL @ 1m: 132 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 30°

TRANSDUCERS

• Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
• Woofer: 4 x 6.0'' neo, 1.5'' v.c

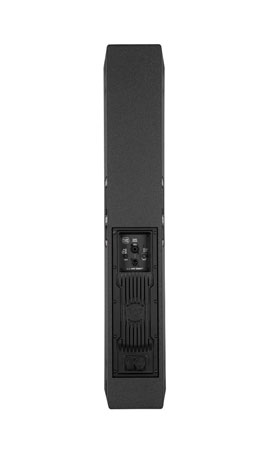

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: +4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 800
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Linear/2 Speakers/High-Pass presets, Volume

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 4 x M8, 4 x quick lock
• Handles: 2 side

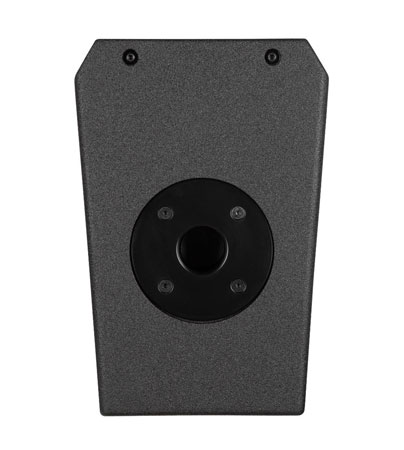

• Pole mount/Cap: 35 mm insert
• Grille: Steel
• Color: Black

SIZE / WEIGHT

• Height: 1051 mm / 41.38 inches
• Width: 198 mm / 7.8 inches
• Depth: 290.4 mm / 11.43 inches
• Weight: 24.4 kg / 53.79 lbs

SHIPPING INFORMATION

• Package Height: 320 mm / 12.6 inches
• Package Width: 1080 mm / 42.52 inches
• Package Depth: 230 mm / 9.06 inches
• Package Weight: 27.5 kg / 60.63 lbs

  What is the RCF NXL 24-A MK2?
A: The NXL 24-A MK2 is a professional line-array column active speaker designed for high-quality live sound reinforcement. It is ideal for bands, DJs, clubs, venues, and rental companies that require powerful output and controlled coverage.

  How powerful is the NXL 24-A MK2?
A: It is powered by a 2-channel 2,100W Class-D amplifier, delivering up to 132 dB SPL for clear, consistent sound in medium-sized live sound applications.

  What drivers are used in the NXL 24-A MK2?
A: The speaker features a two-way design with four 6" neodymium woofers for tight, punchy low-mid response and a 3" high-frequency compression driver for detailed, accurate highs.

  What is the coverage pattern?
A: The NXL 24-A MK2 provides precise 100° horizontal x 30° vertical coverage, ensuring even sound distribution and excellent intelligibility across the audience area.

  Can the NXL 24-A MK2 be used without subwoofers?
A: Yes. With an extended low-frequency response down to 60 Hz, it can be used as a stand-alone full-range speaker for many applications. For higher SPL and deeper bass, pairing with subwoofers is recommended.

  Can multiple NXL 24-A MK2 speakers be combined?
A: Yes. Two NXL 24-A MK2 speakers can be coupled together to extend vertical coverage and increase output for larger venues and wider audience areas.

  Is the NXL 24-A MK2 suitable for touring and installations?
A: Absolutely. It is housed in a rugged Baltic birch plywood cabinet and includes dedicated rigging points for safe flying, stacking, and permanent installations.
