RCF NXL 14-A

COMPACT ACTIVE POINT SOURCE SPEAKER

• 128 dB max SPL
• 2100W Class-D Bi-Amplification
• 70-20000 Hz linear frequency range
• 1.75" PKX / Neodymium Compression Driver

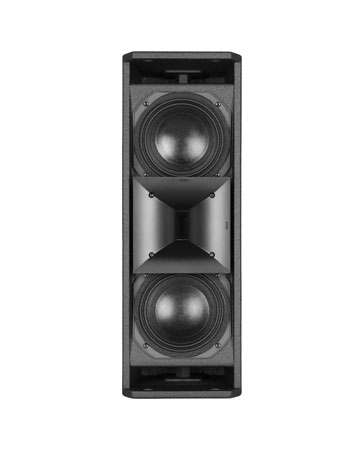

The NXL 14-A is the most compact active loudspeaker in the professional NXL Series, engineered to deliver outstanding clarity, power, and portability. Its advanced design features dual 6" woofers in a symmetrical configuration, paired with a 1.75" Precision Transducers PKX compression driver mounted on a rotatable TRW waveguide for precise and controlled sound dispersion.

Powered by a 2-channel 2,100W Class-D amplifier, the NXL 14-A produces exceptional output and definition while maintaining a slim, easy-to-handle form factor. Available in black or white, it blends seamlessly into any professional environment.

Optimized for clear vocal reproduction, the NXL 14-A excels in compact live sound systems, immersive audio setups, and as a high-performance fill speaker. When paired with RCF SUB Series subwoofers, it delivers a powerful, full-range system suitable for clubs, houses of worship, corporate events, and touring applications.

RCF NXL 14-A Features

• 128 dB max SPL
• 2100W Class-D Bi-Amplification
• 70-20000 Hz linear frequency range
• 1.75" PKX / Neodymium Compression Driver
• 2 x 6" High Power Neodymium Woofers
• Rotatable 100° x 70° TRW Waveguide
• FiRPHASE and Bass Motion Control

RCF NXL 14-A Specification

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 70 Hz - 20000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 70°

TRANSDUCERS

• Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
• Woofer: 2 x 6.0'' neo, 2.0'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 1200
• Protections: Excurs.
• Limiter: Fast Limiter
• Controls: Linear/Boost/Stage Presets, Volume.

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Plywood
• Hardware: 2X M10 TOP AND BOTTOM, 2X PIN D.10
• Handles: 2 TOP AND BOTTOM
• Pole mount/Cap: Quick-fit socket
• Grille: Steel
• Color: Black - RAL 9005, White - RAL 9003

SIZE / WEIGHT

• Height: 567 mm / 22.32 inches
• Width: 197 mm / 7.76 inches
• Depth: 270 mm / 10.63 inches
• Weight: 12.8 kg / 28.22 lbs

SHIPPING INFORMATION

• Package Height: 600 mm / 23.62 inches
• Package Width: 232 mm / 9.13 inches
• Package Depth: 302 mm / 11.89 inches
• Package Weight: 14.6 kg / 32.19 lbs

  What makes the NXL 14-A different from traditional speakers?
A: It features a slim line-array-inspired design with dual 6" woofers in a symmetrical configuration, delivering focused vertical coverage, excellent vocal clarity, and high SPL from a compact enclosure.

  How powerful is the NXL 14-A?
A: The speaker is powered by a 2-channel 2,100W Class-D amplifier, providing strong output and dynamic headroom suitable for demanding live applications.

  What high-frequency driver does it use?
A: The NXL 14-A uses a 1.75" Precision Transducers PKX compression driver, delivering detailed, natural high-frequency reproduction and excellent intelligibility.

  What is the purpose of the rotatable TRW waveguide?
A: The rotatable TRW waveguide allows flexible horizontal or vertical orientation, ensuring optimal sound coverage in different installation or portable setups.

  Is the NXL 14-A good for vocals?
A: Yes. The NXL 14-A is optimized for vocal reproduction, making it ideal for live performances, presentations, houses of worship, and spoken-word applications.

  What applications is the NXL 14-A best suited for?
A: It is ideal for compact live sound systems, immersive audio setups, front-fill or side-fill applications, and as a high-performance fill speaker in larger PA systems.

  Is the NXL 14-A easy to transport?
A: Yes. Its lightweight, slim design makes it easy to carry, mount, and deploy, making it perfect for mobile DJs, rental companies, and touring professionals.
