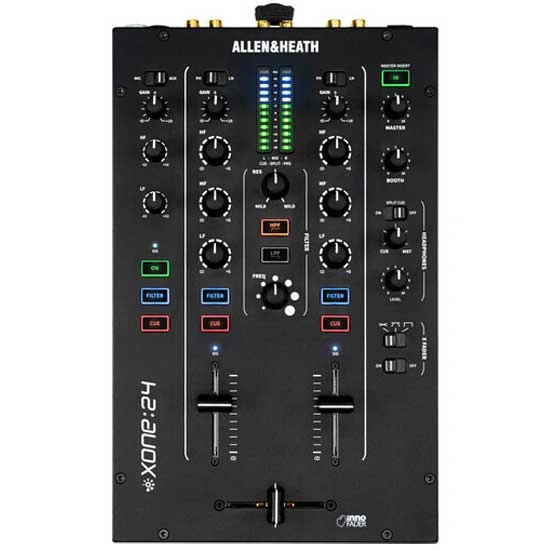

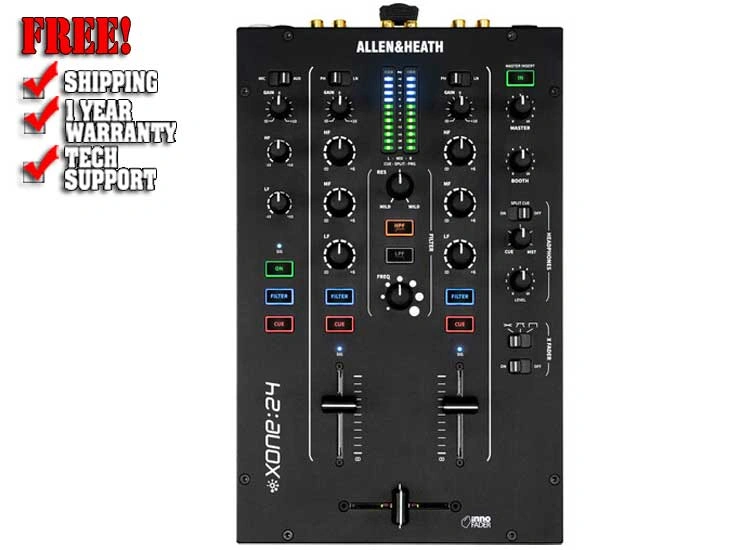

Allen & Heath Xone:24 2+1 Channel DJ Mixer

Description:

The Allen & Heath Xone:24 is a compact 2+1 channel analogue DJ mixer designed for DJs who want professional sound, hands-on control and the legendary Xone analogue signal path in a smaller format. It combines two Phono/Line channels with a dedicated Mic/Line auxiliary channel for flexible DJ setups.

Channels 1 and 2 feature a 3-band isolator EQ with Total Kill, giving DJs precise control over the high, mid and low frequencies. The mixer also features the classic Xone:VCF analogue filter with selectable high-pass and low-pass modes, adjustable frequency and resonance controls, and channel assignment for creative mixing and transitions.

The Mini innoFADER crossfader provides a smooth and responsive performance, with three selectable crossfader curve settings. The crossfader is designed for reliable DJ performance and can be replaced when required.

The Xone:24 also includes a Master Insert FX loop with rear-panel send and return connections, allowing external effects processors and dynamic processing equipment to be integrated into the master signal path.

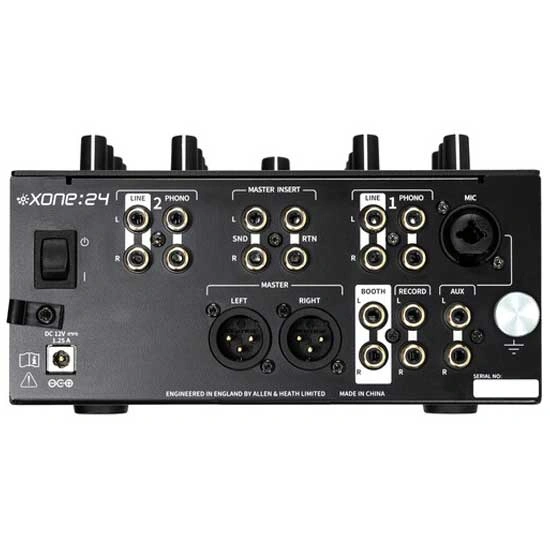

For professional monitoring and connectivity, the Xone:24 provides a balanced XLR master output, RCA booth and record outputs, 1/4-inch and 3.5mm headphone outputs, Split Cue monitoring and a dedicated turntable earth terminal. With its pure analogue architecture and club-inspired layout, the Xone:24 is an excellent choice for vinyl DJs, digital media players and compact professional DJ setups.

Key Features

• 2+1 channel all-analogue DJ mixer
• Two stereo Phono/Line input channels
• Dedicated Mic/Line auxiliary channel
• 3-band isolator EQ with Total Kill
• Classic Xone:VCF analogue filter
• High-pass and low-pass filter modes
• Adjustable filter frequency and resonance
• Mini innoFADER crossfader
• Three crossfader curve settings
• Master Insert FX loop
• Balanced XLR master output
• RCA booth output
• RCA record output
• 1/4-inch and 3.5mm headphone outputs
• Split Cue monitoring
• High-gain, low-noise RIAA phono preamps
• Backlit controls and responsive metering
• Dedicated turntable earth terminal
• Pure analogue signal path

Allen & Heath Xone:24 Specifications

• Product Type: 2+1 Channel Analogue DJ Mixer
• Type: Analogue
• Channels: 2 + 1
• Channel 1 & 2: Phono / Line
• Auxiliary Channel: Mic / Line
• Line Inputs: 3 × RCA
• Phono Inputs: 2 × RCA
• RIAA Gain: +42dB @ 1kHz
• Microphone Input: 1 × Combi XLR / TRS
• Mic Gain: +40dB
• Master Output: 1 × Balanced XLR
• Master Output Level: +4dBu Nominal / +22dBu Maximum
• Booth Output: 1 × RCA Unbalanced
• Booth Output Level: 0dBu Nominal / +18dBu Maximum
• Record Output: 1 × RCA Unbalanced
• Record Output Level: -10dBV Nominal / +8dBV Maximum
• Master Insert: Stereo RCA Send / Return
• Master Insert Level: -2dBu Nominal / +18dBu Maximum
• Headphone Outputs: 1 × 1/4-inch + 1 × 3.5mm
• Headphone Monitoring: Split Cue
• Channel EQ: 3-Band Isolator / Total Kill
• High Frequency EQ: Shelving, >3.5kHz
• Mid Frequency EQ: 1.1kHz
• Low Frequency EQ: Shelving, <500Hz
• Total Kill Attenuation: -75dB
• Auxiliary EQ: 2-Band, ±12dB
• Auxiliary HF Frequency: 4.4kHz
• Auxiliary LF Frequency: 160Hz
• Filter: Xone:VCF Voltage Controlled Filter
• Filter Modes: High-Pass / Low-Pass
• Filter Control: Adjustable Frequency & Resonance
• Filter Assignment: Channels 1, 2 and Aux Channel
• Channel Faders: 45mm VCA
• Crossfader: 45mm VCA Mini innoFADER
• Crossfader Curves: Constant Power / Transition / Fast-Cut
• Headroom: +18dB
• Frequency Response: ±0.5dB, 20Hz–30kHz
• Distortion: Typically 0.01% @ 1kHz, 0dBu
• Crosstalk: <-85dB Inter-Channel @ 1kHz, +10dBu
• Mix Meters: 12 LED, -25dBu to +12dBu
• Channel Meters: Single Tri-Colour LED
• Earth Ground Terminals: 1
• Power Supply: 100–240V AC, 50/60Hz
• Maximum Power Consumption: 35W
• Dimensions: 190 × 314 × 108mm (W × D × H)
• Weight: 2.7kg / 5.95lb

Most Popular Accessories & Related Items

<

Allen & Heath Xone:24C

$699.99

Allen & Heath Xone:PX5

$1799.99

Allen & Heath CQ-20B

$999.99

Allen & Heath CQ-18T

$1199.99

Allen & Heath Qu-7

$3999.99

Allen & Heath Qu-6

$2999.99

>

Allen & Heath Xone:24 FAQs

What is the Allen & Heath Xone:24?

The Allen & Heath Xone:24 is a compact 2+1 channel all-analogue DJ mixer with two Phono/Line channels, a Mic/Line auxiliary channel, Xone:VCF filter, 3-band isolator EQ and Mini innoFADER crossfader.

How many channels does the Allen & Heath Xone:24 have?

The Xone:24 has two stereo Phono/Line channels plus a dedicated Mic/Line auxiliary channel, providing a flexible 2+1 channel configuration for DJ setups.

Does the Allen & Heath Xone:24 have phono inputs?

Yes, the Xone:24 has two stereo RCA phono inputs with high-gain, low-noise RIAA preamps, allowing turntables to be connected directly to Channels 1 and 2.

What filter does the Allen & Heath Xone:24 have?

The Xone:24 features the classic Xone:VCF analogue filter with selectable high-pass and low-pass modes, adjustable frequency and resonance, and assignment to Channels 1, 2 and the Aux channel.

Does the Allen & Heath Xone:24 have an effects loop?

Yes, the Xone:24 features a Master Insert FX loop with stereo RCA send and return connections for integrating external effects processors and other audio equipment.
