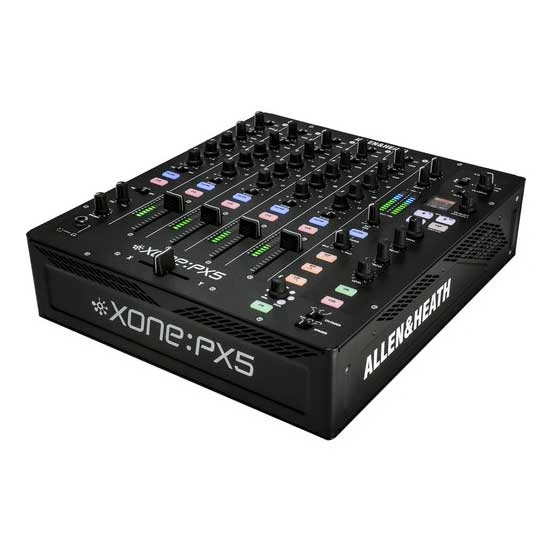

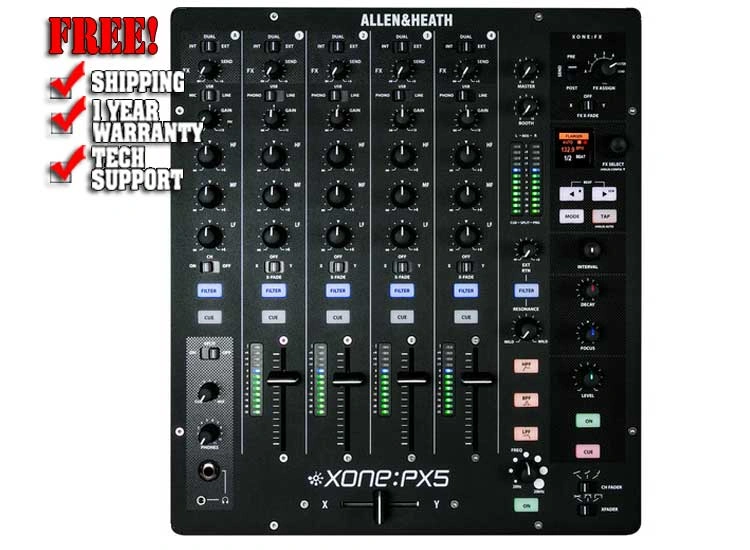

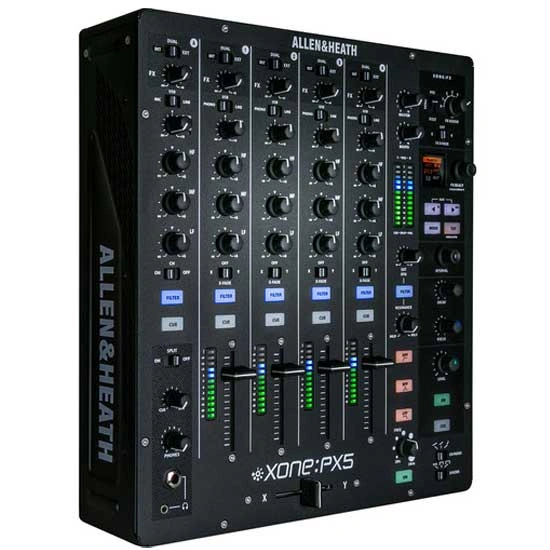

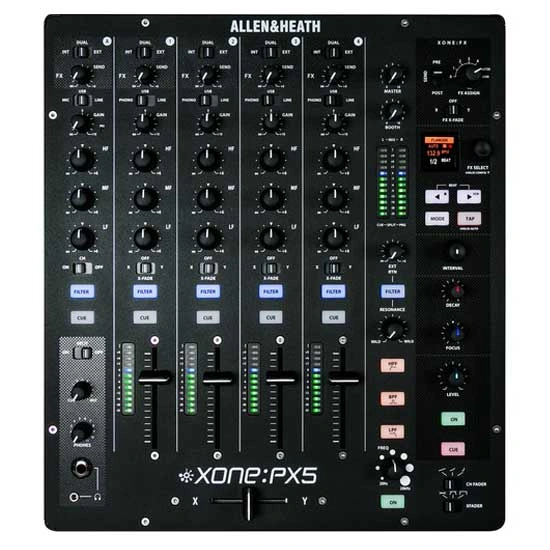

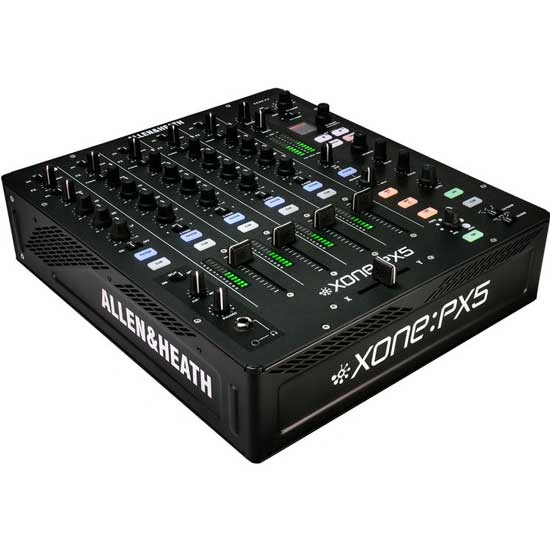

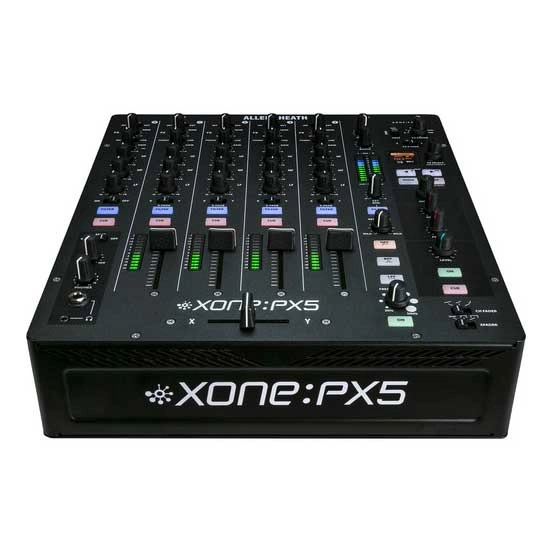

Allen & Heath Xone:PX5 4+1 Channel DJ Mixer with USB & FX

Description:

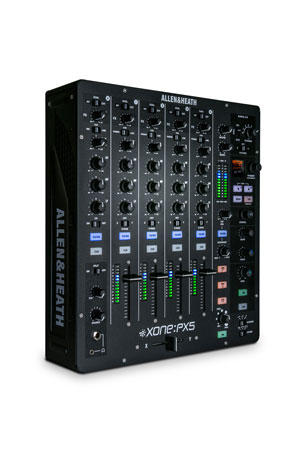

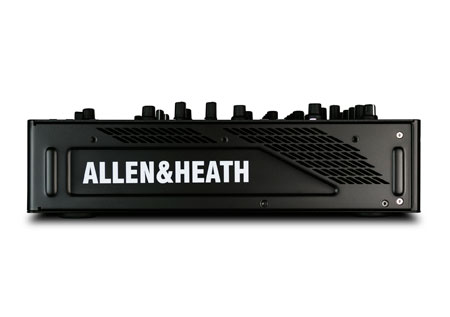

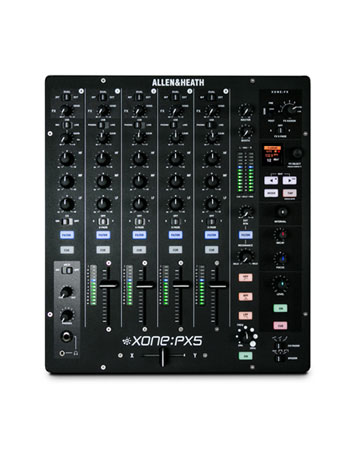

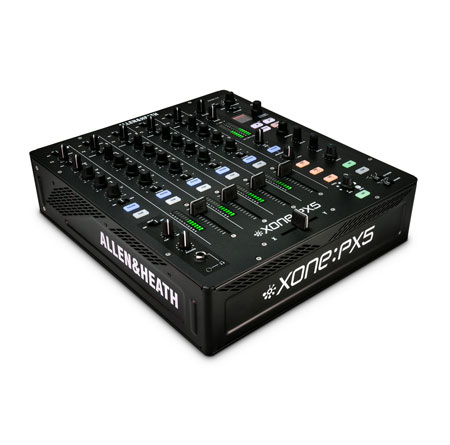

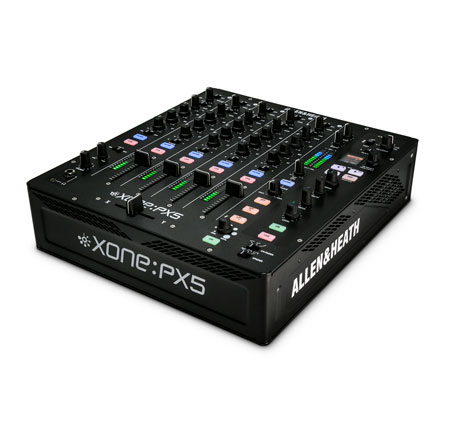

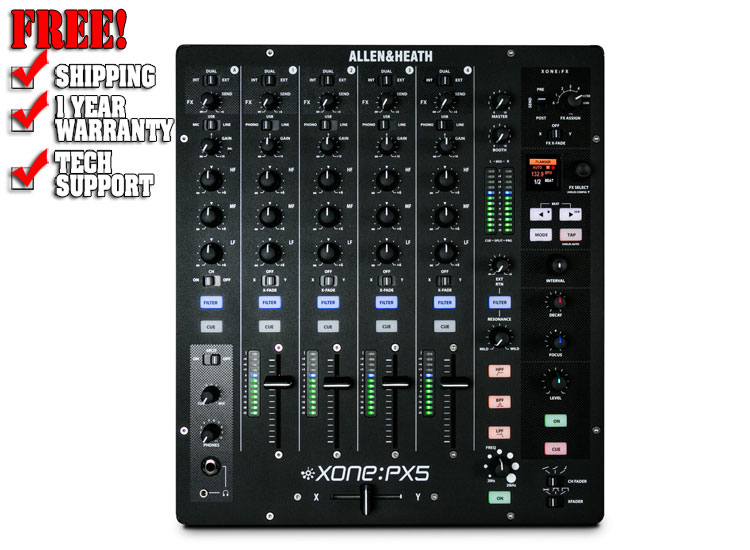

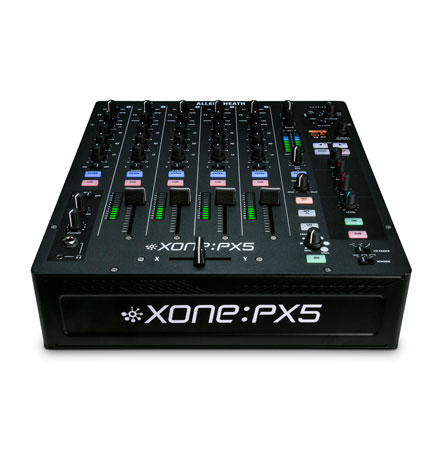

The Allen & Heath Xone:PX5 is a professional 4+1 channel analogue DJ mixer designed for modern hybrid DJ setups. It combines the signature analogue Xone sound with a 20-channel, 24-bit/96kHz USB soundcard, built-in Xone:Xcite digital effects, MIDI connectivity and X:Link integration.

The mixer features four fully featured Phono/Line/USB channels plus a flexible Channel A for Mic, Aux or USB Return sources. Each channel includes a 3-band isolator EQ, while the legendary Xone:VCF filter provides selectable high-pass, band-pass and low-pass modes with adjustable frequency and resonance.

For creative performance, the Xone:PX5 includes the Xone:Xcite FX suite with delays, reverbs, modulators, flangers and distortion effects. Its hybrid FX mode allows internal and external effects to be combined, while dedicated send controls provide flexible routing for external processors.

The built-in USB interface provides 20 channels, with 5 stereo inputs and 5 stereo outputs, at up to 24-bit/96kHz. This makes the PX5 suitable for digital DJing, recording, music production and DVS workflows.

The Xone:PX5 also includes MIDI connectivity and X:Link for integration with compatible controllers and other DJ equipment. With professional connectivity, flexible routing and Allen & Heath's signature analogue sound, the Xone:PX5 is a versatile choice for DJs, producers and hybrid performance setups.

Key Features

• 4+1 channel analogue DJ mixer
• 20-channel, 24-bit/96kHz USB soundcard
• Xone:VCF analogue filter with HPF, BPF and LPF modes
• Xone:Xcite built-in digital FX
• Phono, Line and USB inputs
• DVS support
• 3-band isolator EQ
• MIDI connectivity and MIDI clock
• X:Link connection for compatible controllers
• Replaceable 45mm VCA crossfader
• Innofader Pro 2 compatible
• Dedicated external FX Send/Return
• Master Insert connection
• 1/4-inch and 3.5mm headphone outputs

Allen & Heath Xone:PX5 Specifications

• Product Type: 4+1 Channel Analogue DJ Mixer
• Channels: 4 + 1
• EQ: 3-Band Total Kill EQ
• USB Soundcard: 20-Channel USB Interface
• USB Audio: 24-bit / 96kHz
• USB Channels: 5 Stereo Inputs / 5 Stereo Outputs
• USB Type: USB 2.0, Class Compliant
• DVS Support: Yes

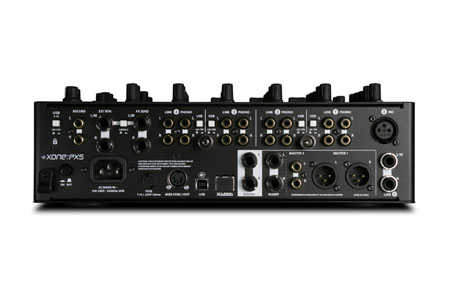

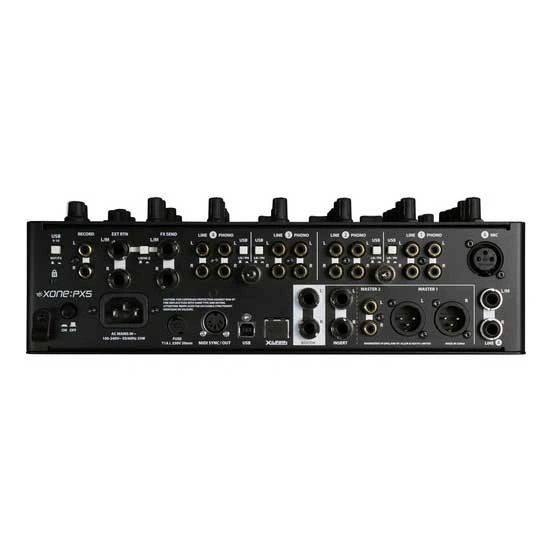

• Phono Inputs: 4 x RCA
• Line Inputs: 4 x RCA + 1 x 1/4-inch TRS
• Microphone Input: 1 x XLR
• Master Output: 1 x Balanced XLR
• Master 2 Output: 1 x RCA
• Booth Output: 1 x 1/4-inch TRS
• Record Output: 1 x RCA
• Master Insert: 1 x 1/4-inch TRS
• FX Send / Return: 1 x 1/4-inch TRS Send + 1 x 1/4-inch TRS Return
• Built-in Effects: Xone:Xcite FX
• Filter: Xone:VCF
• Filter Modes: High-Pass / Band-Pass / Low-Pass
• MIDI: USB MIDI + 5-Pin DIN MIDI
• X:Link: RJ45
• Headphone Outputs: 1 x 1/4-inch + 1 x 3.5mm
• Channel Faders: 60mm VCA, Replaceable
• Crossfader: 45mm VCA, Replaceable
• Crossfader Compatibility: Innofader Pro 2
• Channel Fader Curves: 3
• Crossfader Curves: 3
• Headroom: 20dB
• Power Supply: 100-240V AC, 50/60Hz
• Power Consumption: 35W Maximum
• Dimensions: 320 x 375.6 x 110mm (W x D x H)
• Weight: 5.2kg / 11.5lb

Most Popular Accessories & Related Items

<

Allen & Heath Xone:24C

$699.99

Allen & Heath CQ-20B

$999.99

Allen & Heath CQ-18T

$1199.99

Allen & Heath Qu-7

$3999.99

Allen & Heath Qu-6

$2999.99

>

Allen & Heath CQ-12T FAQs

What is the Allen & Heath Xone:PX5?

The Allen & Heath Xone:PX5 is a professional 4+1 channel analogue DJ mixer with a 20-channel 24-bit/96kHz USB soundcard, Xone:VCF filter, Xone:Xcite digital effects, MIDI connectivity and X:Link.

How many channels does the Allen & Heath Xone:PX5 have?

The Xone:PX5 features four fully featured channels plus a dedicated Channel A, providing a flexible 4+1 channel configuration for analogue and digital DJ setups.

Does the Allen & Heath Xone:PX5 have USB and support DVS?

Yes, the Xone:PX5 features a 20-channel USB 2.0 interface with 24-bit/96kHz audio and supports DVS for compatible digital DJ systems.

What filter and effects does the Allen & Heath Xone:PX5 have?

The Xone:PX5 features the classic Xone:VCF filter with high-pass, band-pass and low-pass modes, plus the built-in Xone:Xcite FX engine with delays, reverbs, modulators, flangers and distortion effects.

Does the Allen & Heath Xone:PX5 support MIDI?

Yes, the Xone:PX5 supports MIDI through USB and a 5-pin DIN connection, providing MIDI clock, MIDI CC and MIDI note functionality for integrating compatible equipment and software.
