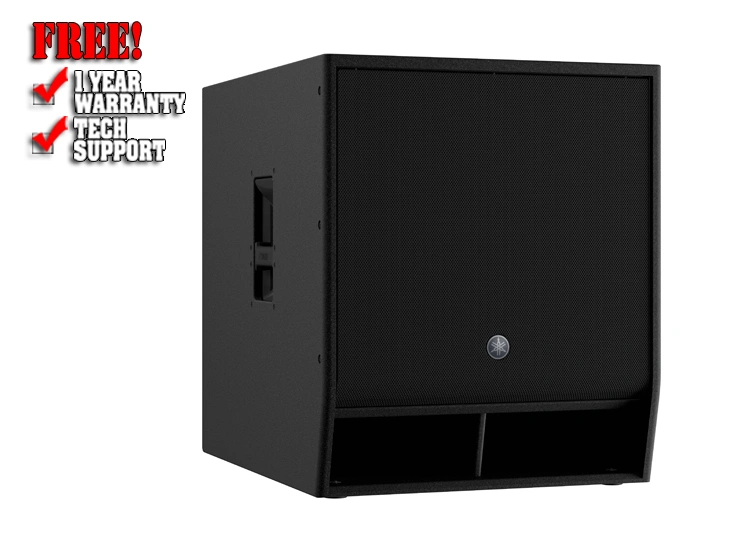

Yamaha CXS18XLF 18-inch 2000W Passive Subwoofer

The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system's low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information).

The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.

Perfectly suited for use with CZR full-range speakers, the CXS18XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 133dB SPL performance.

Yamaha CXS18XLF 18-inch 2000W Passive Subwoofer Features:

• 18" subwoofer with 4" Voice Coil
• High power 1000W (PGM) input
• Cardioid mode capable with processors or DSP onboard power amps
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Dual-pole socket
• Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)

Yamaha CXS18XLF 18-inch 2000W Passive Subwoofer Specifications:

• Speaker type : Subwoofer, Bass-reflex
• Frequency range (-10dB) : Passive: 32 Hz - 3kHz, Normal (*1): 32 Hz - 150 Hz, Extend (*1): 29 Hz - 150 Hz
• Components LF : 18" Cone, 4" Voice Coil, Ferrite magnet
• Power rating
  • NOISE : 500 W (EIA 426-A)
  • PGM : 1000 W (EIA 426-A)
  • PEAK : 2000 W (EIA 426-A)
• Nominal impedance : 8 Ω
• SPL
  • Sensitivity (1W; 1m on axis) : 100dB *2
  • Peak (Calculated) : 133 dB *2
• I/O connectors : SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Handle : Aluminium die-cast, Side x2
• Pole socket : ø35 mm (depth 80mm), M20 Threaded (depth 25mm)
• Dimensions
  • Width : 550 mm (21.6")
  • Height : 657 mm (25.9") (with rubber feet)
  • Depth : 720 mm (28.4")
• Net weight : 43.6kg (96.1 lbs)
• Options : Cover: SPCVR-DXS18X, Caster: SPW-1
• Others : Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black

Most Popular Accessories & Related Items

<

Yamaha CXS15XLF

$919.99

Yamaha DXS18XLF

$1391.99

Yamaha DXS18

$1227.99

Yamaha DXS15XLF

$1311.99

Yamaha DXS15XLF (White)

$1909.99

>

Frequently Asked Questions (FAQ)

What is the power output of the Yamaha CXS18XLF subwoofer?

The Yamaha CXS18XLF delivers 1000W program power and up to 2000W peak power, providing extremely powerful low-end bass for professional audio systems.

Is the Yamaha CXS18XLF an active or passive subwoofer?

The Yamaha CXS18XLF is a passive subwoofer, meaning it requires an external power amplifier to operate.

What size driver does the Yamaha CXS18XLF use?

It features a high-performance 18-inch low-frequency driver with a 4-inch voice coil, designed for deep, clean, and powerful bass output.

Is the Yamaha CXS18XLF suitable for DJs, clubs, and live events?

Yes, it is built for professional DJ setups, nightclubs, concerts, and large live sound events, delivering high SPL and deep bass impact.

What amplifier is recommended for the Yamaha CXS18XLF?

A high-quality amplifier rated around 1000W RMS at 8 ohms per channel is recommended for optimal performance and headroom.

Does the Yamaha CXS18XLF come with a built-in amplifier?

No, this model does not include a built-in amplifier, as it is a passive subwoofer requiring external amplification.

What is the frequency response of the Yamaha CXS18XLF?

It extends down to approximately 32 Hz (and lower in optimized DSP setups), delivering deep sub-bass performance for professional use.
