Yorkville PSA26 Paraline 2x6" Powered Loudspeaker

Yorkville PSA26 Paraline 2x6" Powered Loudspeaker delivers premium line array performance in a compact, powered enclosure designed for touring professionals and fixed installations. Part of Yorkville's next-generation Paraline series, this IP54-rated speaker is built for reliable indoor and outdoor use, offering easy transport, fast setup, and flexible ground stack or flown configurations.

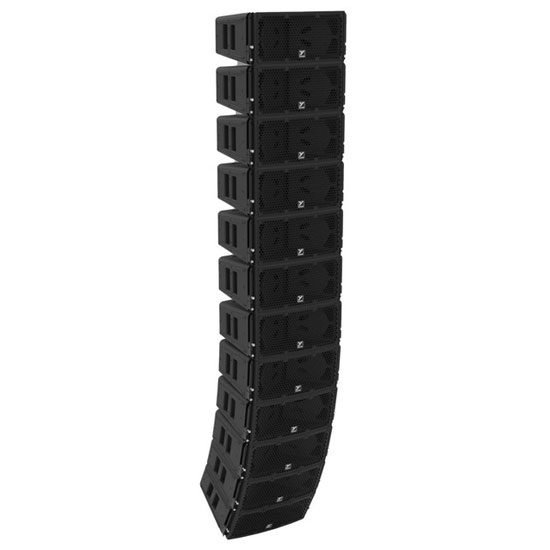

Powered by 850 watts of peak power, the PSA26 features lightweight neodymium drivers and integrated rigging hardware for seamless array deployment. At its core are two advanced technologies developed by Tom Danley: the patented Paraline Lens and Synergy Horn. The precisely engineered Paraline Lens creates a controlled wavefront that perfectly matches the horn's coverage pattern, forming a continuous horn throat between cabinets and virtually eliminating comb filtering in vertical arrays.

A high-output compression driver feeds the Paraline Lens, while the Synergy Horn design couples high and low frequencies through the entire front surface of the cabinet, maximizing efficiency, output, and consistent directivity.

User-friendly onboard controls allow quick system optimization. Features include a switchable high-pass filter for subwoofer integration, high-frequency boost for added clarity, Nearfield mode to balance coverage for front-row audiences, and array EQ compensation to manage bass buildup when multiple cabinets are flown together. Built-in limiting protects the system under demanding conditions.

The PSA26 also includes powerCON® TRUE1 power input and pass-through connectors, a dual-angle 35 mm (1 3/8") pole mount compatible with the Yorkville SW-TUBEHD pole, and flush-mounted hardware to safeguard quick pins and rigging components.

Available now at 123DJ, the Yorkville PSA26 is the ideal solution for DJs, production companies, houses of worship, and venues seeking powerful, controlled line array performance in a compact powered speaker.

Yorkville PSA26 Paraline 2x6" Powered Loudspeaker Features:

• 850 W Peak Power (600 W Program)
• 2x 6" Neodymium LF Drivers
• 1x 1" Exit Neodymium HF Driver
• Incorporates Tom Danley's Patented Paraline Lens and Synergy Horn Technologies
• XLR Input and Output
• Locking powerCON® TRUE1 Connectors
• IP54 Rated for Outdoor Use
• Made in Canada

Yorkville PSA26 Paraline 2x6" Powered Loudspeaker Specifications:

• System Type: Powered Loudspeaker
• Power Rating: 850 W Peak (600 W Program)
• Max SPL: 134 dB
• Frequency Response: 75 Hz - 20 kHz
• Dispersion (H x V): 120° x 10°
• HF Driver(s): 1x 1" Exit Neodymium
• LF Driver(s): 2x 6" Neodymium
• Power Requirements: 120 VAC
• Power Consumption (typ/max): 120V 3A / 5A
• In / Out Connections: powerCON® TRUE1 Locking Connectors
• Inputs: 1x XLR
• Outputs: 1x XLR
• Controls: Gain, High-Pass Filter (w/SUB), HF Boost, Nearfield, Array Size
• LED Indicators: Activity, Limit, Clip
• Bar Handles: 2 (1 each side)

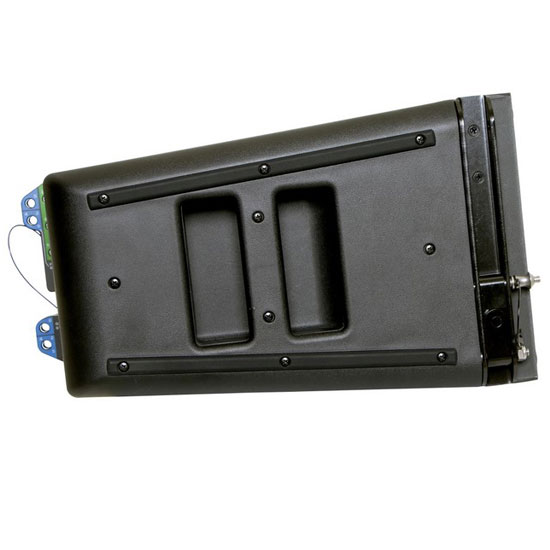

• Flying Hardware: Skeletal Rigging System
• Pole Mount Adapter: 1 (Dual Angle)
• Enclosure Materials: Polypropylene
• Grille: Powder-Coated Perforated Steel
• Other Features: IP54 Rated for Outdoor Use
• Dimensions (D x W x H): 18.3" x 22.4" x 10.1" (46.5 cm x 56.9 cm x 25.7 cm)
• Weight: 40 lbs / 18.1 kg

Most Popular Accessories & Related Items

<

Yorkville PSA28

$1999.99

Yorkville NX8P

$3199.99

Yorkville NX25P-2

$599.99

Yorkville NX55P-2

$999.99

>

---

Frequently Asked Questions (FAQ)

What is the power rating of the Yorkville PSA26?

The Yorkville PSA26 delivers 850 W peak (600 W program) power.

What type of drivers does the Yorkville PSA26 use?

It features 1x 1" neodymium HF driver and 2x 6" neodymium LF drivers.

Can the Yorkville PSA26 be used outdoors?

Yes, it is IP54 rated for outdoor use.

How do I connect the Yorkville PSA26 to power and audio?

It uses powerCON® TRUE1 locking connectors for power and XLR connectors for audio input/output.

Can I use the Yorkville PSA26 with a subwoofer?

Yes, it has a switchable high-pass filter for subwoofer integration.

Does it support flown or stacked configurations?

Yes, the Yorkville PSA26 can be flown or used in ground stack setups with integrated rigging hardware.

What is the maximum SPL of the Yorkville PSA26?

It can reach up to 134 dB.

---
