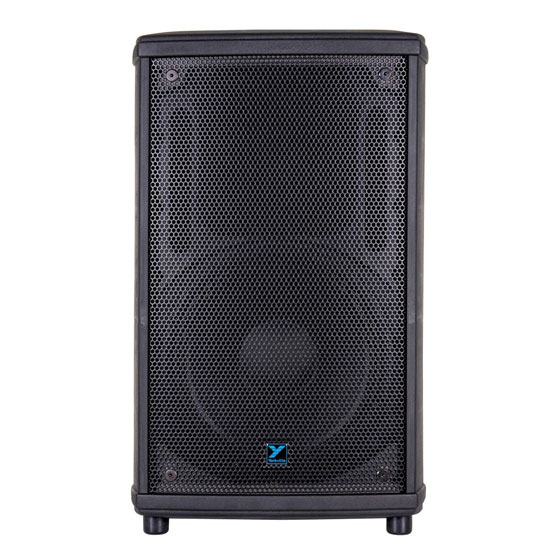

Yorkville NX25P-2 NX 12" Powered Loudspeaker

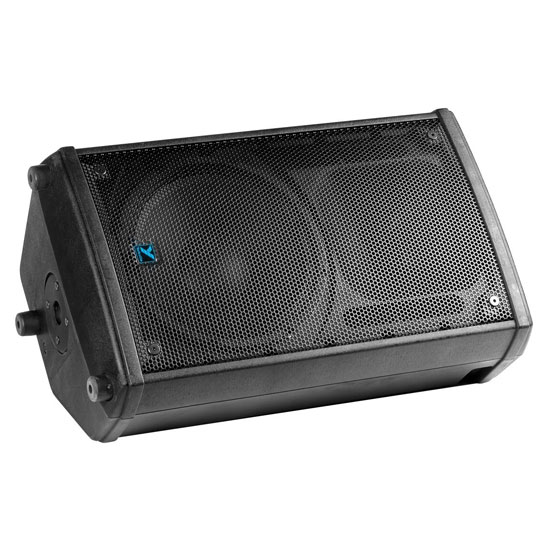

For over twenty years, NX loudspeakers have earned a reputation for proven reliability. The traditional analog design works equally well as a front of house speaker or stage monitor.

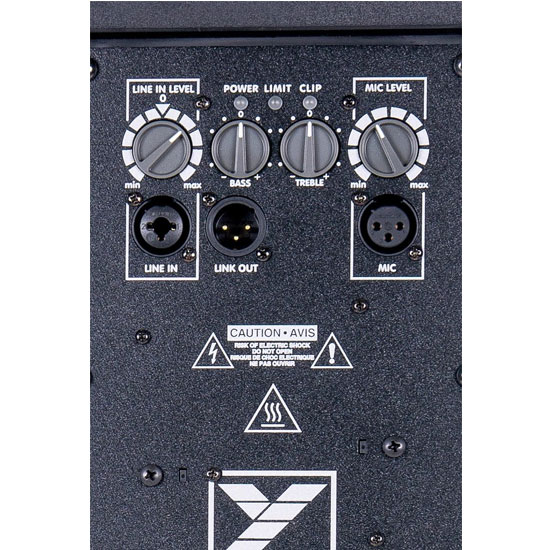

The rear panel features a Combi-Jack line input and XLR mic input with independent level controls, and a balanced XLR output to link multiple speakers in an array or as repeater cabinets around a large room. A two-band master EQ lets you quickly dial in a balanced sound to fit into your system and your space.

The NX25P-2 offers high headroom and loud, clean transients with the combination of a Class A/B amplifier powering the horn and a two-tier, high-efficiency Class H amplifier for low frequencies.

Inputs and controls are well-protected, so the NX25P-2 can be used in any orientation. It was carefully designed for low operating temperatures and reduced heat production, so it can be placed close to walls, floors, and other speakers.

Features

• 600 W Peak Power (300 W Program)
• 12" LF Driver with 3" Voice Coil
• 1" HF Driver
• 1x Combi-Jack Line and 1x XLR Mic Inputs
• 1x XLR Link Output
• 2-Band EQ
• Integrated Flying Hardware

Specifications

• System Type: Powered Loudspeaker
• Power Rating: 600 W Peak (300 W Program)
• Biampable: Self Powered
• Biamp Operation Only: Yes
• Max SPL: 124 dB Peak (120 dB Continuous)
• Frequency Response (Hz ± 3 dB): 55 Hz – 18 kHz
• Crossover Frequency: 3 kHz
• HF Driver(s): 1.4" Coil, 1.4" Exit PETP Driver
• HF Dispersion (°H x °V): 80° x 50°
• HF Protection: Peak Limiter
• LF Driver(s): 12" with 3" Voice Coil
• LF Protection: Thermal / Overcurrent
• HF Amplifier Type: Class A/B
• LF Amplifier Type: 2-Tier Class H
• Power Consumption (typ/max): 120 / 310 VA
• Inputs: 1x Combi-Jack (Line), 1x XLR (Mic)
• Input Sensitivity (Vrms Sine): 1.23 Vrms Sine, +4 dBu
• Mixer Controls: Line Level, Mic Level, Bass, Treble
• Limiter: Yes
• LED Indicators: Power, Activity, Limit
• Flypoints: 4 (2 Top, 2 Bottom), 1 Pullback
• Flying Hardware: 1/4-20
• Optional Flying Hardware: NXF Flyware
• Pole Mount Adapter (1 3/8): 1 (Bottom)
• Enclosure Materials: Molded Polypropylene
• Grille: Perforated Metal
• Dimensions (D x W x H): 12.25" x 16" x 26.5" (31.1 cm x 40.6 cm x 67.3 cm)
• Weight: 39 lbs / 17.6 kg
