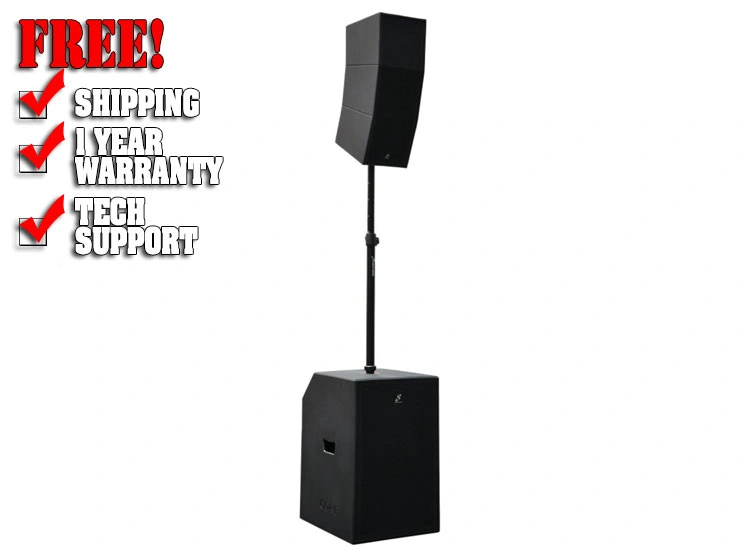

Studiomaster Core 151 15" Active Column Array PA System

The new CORE system from Studiomaster uses a specially designed curved array to provide a controlled and highly effective sound diffusion.

Combining the curved array with a powerful bass reflex subwoofer giving up to 2800W of low end power, the whole system can provide 4400W peak (1100W RMS) in a compact, portable system that will give you the reach and sonic quality expected of an ultra compact array system.

To complete the system, the CORE comes with a built-in 4 channel mixer, with DSP control and Bluetooth® connectivity.

The CORE system is designed to be simple to set-up and use. The air-suspension adjustable speaker pole includes internal wiring, so just lift and place the lightweight curve array on top of the pole. Connect your power and you are good to go! Truly an ALL-IN-ONE system. Perfect for any performance.

• 3 x 8" + 12 x 1" CURVE ARRAY HF/MF
• 15" BASS REFLEX SUB
• 4400W (peak) / 1100W (rms) POWER

SUB SPECIFICATION:

• Speaker – 1x15" low frequency driver
• Rated power (SUB) – 700W (rms)
• Amplifier power – 700W (LF) + 400W (MF/HF) (rms)
• Max SPL – 128dB
• Dimensions – 485mm x 725mm x 585mm
• Net weight – 37.5kg

CURVE ARRAY SPECIFICATION:

• Speaker MF – 3x8" Neodymium full range driver
• Speaker HF – 12x1" dome tweeter
• Rated power – 400W
• Coverage – 100° (h) x 70° (v)
• Dimensions – 255mm x 670mm x 285mm (450mm max)
• Net weight – 11.5kg

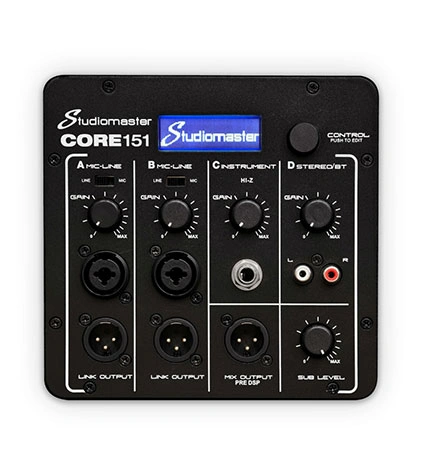

MIXER SPECIFICATION:

• DSP – 24bit module with mode, EQ, limiter, delay and mix level control
• Inputs – 2x mic (XLR) / line (6.35mm jack) balanced, 1x instrument Hi-Z (6.35mm jack), 1x stereo line (RCA phono) / Bluetooth®
• Outputs – 2x balanced line / link output (XLR), 1x balanced line / link MIX output (XLR)

How it Works?

The Core system uses a curved array combined with a powerful bass reflex subwoofer to deliver clear highs and deep bass. The air-suspension speaker pole internally routes audio signals to the curve array, eliminating cables and simplifying setup. DSP presets and controls allow users to tailor sound output easily for different performance needs.

What's Unique?

The system's unique curved array design provides superior sound diffusion and audience coverage compared to traditional straight PA systems. The hidden cable design within the pneumatic speaker pole reduces setup complexity and maintains a clean, professional appearance.

Key Features

The system offers a unique curved array design for controlled sound diffusion, a bass reflex phase inverted subwoofer for powerful low end, a 4 channel mixer with multiple input options including Bluetooth, and a simple DSP interface with presets for DJ, music, and vocal applications. The wooden cabinet is durable with a steel grille and large handles for portability.

Curve Array Specification

The curve array includes 3x 8 inch neodymium full range drivers and 12x 1 inch dome tweeters, rated at 400W power with a coverage pattern of 100° horizontal by 70° vertical. Dimensions are 255mm x 670mm x 285mm (450mm max) and it weighs 11.5kg.

Subwoofer Specification

The subwoofer features a 15 inch low frequency driver with 700W RMS rated power and a 700W LF + 400W MF/HF amplifier module. Dimensions are 485mm x 725mm x 585mm and it weighs 37.5kg.

  Is the Studiomaster Core 151 suitable for DJs?
A: Yes. The Core 151 is ideal for mobile DJs, wedding entertainers, and event professionals who need powerful sound, portability, and quick setup.

  Does the Core 151 support Bluetooth streaming?
A: Yes. Built-in Bluetooth connectivity allows you to stream audio wirelessly from compatible smartphones, tablets, and other Bluetooth-enabled devices.

  Does the system include a built-in mixer?
A: Yes. The Core 151 features an integrated 4-channel mixer, allowing you to connect microphones, instruments, and external audio sources directly.

  What type of events is the Core 151 designed for?
A: The system is perfect for weddings, live performances, corporate events, houses of worship, conferences, parties, and other small to medium-sized venues.

  Does the Core 151 have DSP processing?
A: Yes. It includes advanced 24-bit DSP processing with EQ settings, system protection, and presets to optimize audio performance in different environments.

<
