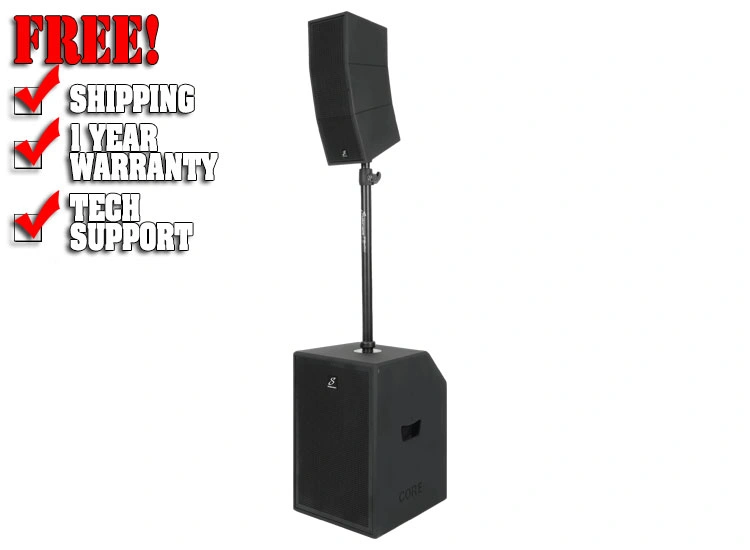

Studiomaster Core121 Portable Column PA System with 12-in Subwoofer

The new CORE system from Studiomaster uses a specially designed curved array to provide a controlled and highly effective sound diffusion.

Combining the curved array with a powerful bass reflex subwoofer giving up to 2800W of low end power, the whole system can provide 4400W peak (1100W RMS) in a compact, portable system that will give you the reach and sonic quality expected of an ultra compact array system.

To complete the system, the CORE comes with a built-in 4 channel mixer, with DSP control and Bluetooth® connectivity.

The CORE system is designed to be simple to set-up and use. The air-suspension adjustable speaker pole includes internal wiring, so just lift and place the lightweight curve array on top of the pole. Connect your power and you are good to go!

Truly an ALL-IN-ONE system. Perfect for any performance.

Features

• 4000W (peak) / 1000W (RMS) POWER
• 12" BASS REFLEX SUB
• INTEGRATED 4CH MIXER with DSP control and Bluetooth®
• CURVE ARRAY HF/M – 3 x 5" + 9 x 1″

Specification

CORE 121 - CURVE ARRAY

• Speaker MF 3x5" Neodymium full range driver
• Speaker HF 9x1" dome tweeter
• Rated power 300W (RMS)
• Coverage 100° (h) x 55° (v)
• Dimension 185 x 495 x 220mm (315mm max)
• Net Weight 8kg
• CORE 121 SUB
• Speaker 1x12" low frequency driver
• Rated power 700W (RMS)
• Amplifier power 700W (LF) + 300W (MF/HF) (RMS)
• Max SPL 124dB
• Frequency response 40Hz-18kHz
• Dimension (W x H x D) 405 x 590 x 470mm
• Net Weight 27kg
• CORE 121 MIXER
• DSP 24bit module with mode, EQ, limiter, delay and mix level control
• Inputs 2 x mic (XLR) / line (6.35mm jack) balanced
• Inputs 1 x instrument Hi-Z (6.35mm jack)
• Inputs 1 x stereo line (RCA phono) / Bluetooth®
• 2 x balanced line / link output (XLR)
• Outputs 1 x balanced line / link MIX output (XLR)

  Is the Studiomaster Core121 suitable for mobile DJs?
A: Yes. Its compact design, powerful output, and easy setup make it an excellent choice for mobile DJs performing at weddings, parties, and corporate events.

  Does the Studiomaster Core121 include Bluetooth connectivity?
A: Yes. The Core121 supports Bluetooth audio streaming, allowing you to play music wirelessly from compatible smartphones, tablets, and other devices.

  Does the Studiomaster Core121 have built-in DSP processing?
A: Yes. The system includes DSP presets and sound optimization features to help deliver clear, balanced audio in various environments.

  Is the Core121 easy to transport?
A: Yes. The column array design breaks down into portable sections, making transportation, storage, and setup quick and convenient.

  Can I connect microphones and instruments directly to the Core121?
A: Yes. The system provides multiple input options for microphones, instruments, mixers, and other audio sources, making it versatile for different applications.

<
