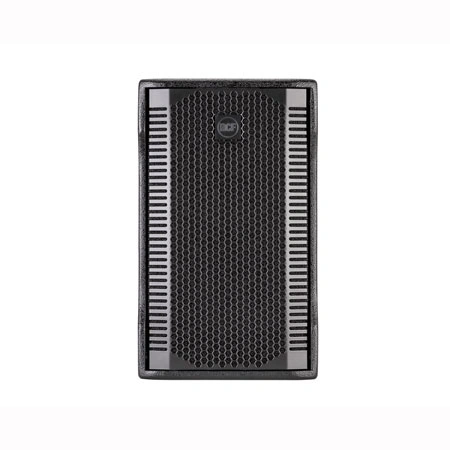

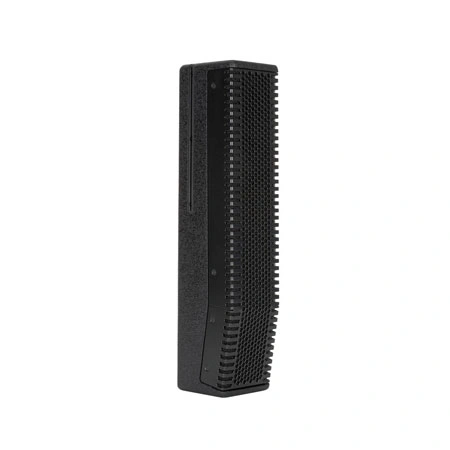

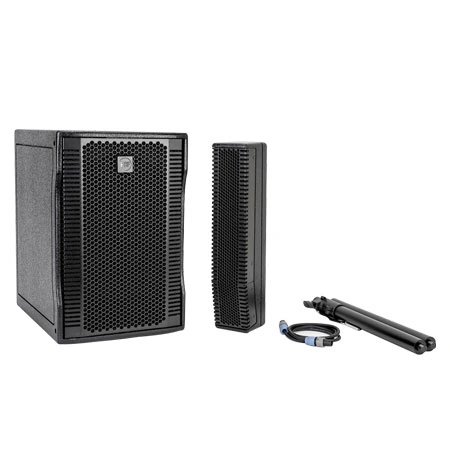

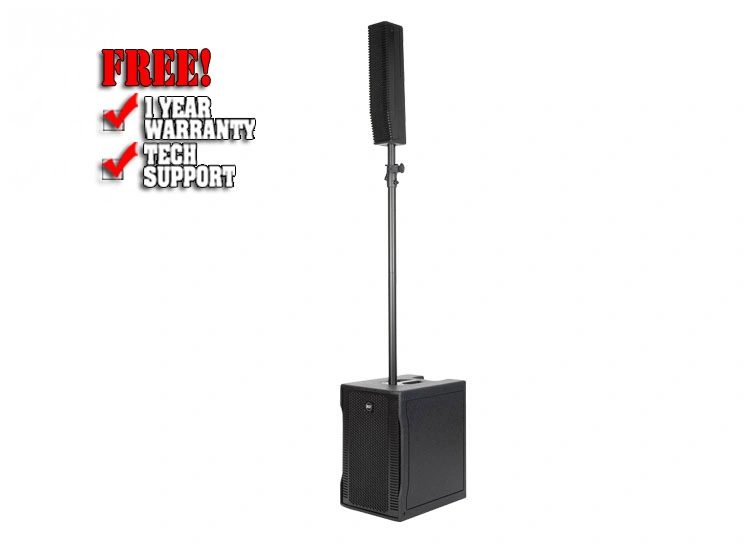

RCF EVOX 8 12-inch 1400W Powered Column PA Speaker System

Description

Evox 8 is a portable compact size sound reinforcement system. Evox 8 combines the quality and reliability of RCF transducers with a very high amplification power. The system features eight 2.0" full range transducers in the line source satellite and a deep sounding 12" woofer in a bass reflex enclosure. The system is designed to be the perfect high output solution for live music and DJs. The unique vocal attitude and SPL make Evox 8 the perfect tool for larger presentations, corporate events and congresses.

EVOX TWO-WAY ARRAYS

EVOX array design features constant horizontal directivity coverage of 120°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array

LIVE SOUND

Extensive testing with instruments and voices during the design process as well as power and reliability testing make the EVOX system the perfect workmates for solo musicians or bands.

DJs

Extremely deep response, precise low frequency control and incredible audio quality, easy to transport and quick to set up. EVOX is without any doubt a smart choice for DJs.

Conferences

Extraordinary clarity and dynamic of vocal reproduction, both at low and very high levels. EVOX is a great tool for conferences and speeches.

RCF EVOX 8 12-inch 1400W Powered Column PA Speaker System Specifications:

• 1400 Watt
• 128 dB max SPL
• 40 Hz 20 kHz frequency response

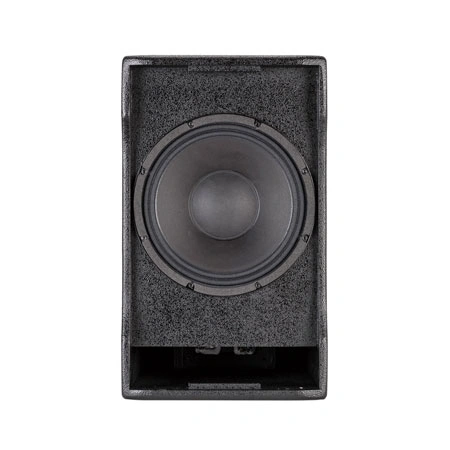

• 12" Woofer, 2.5" v.c.
• 8 x 2" Ultra compact fullrange, 1.0 v.c.
• 120° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation

Acoustical Specifications

• Frequency Response -3 dB: 40 Hz ÷ 20 Hz
• Max SPL: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°
• Fullrange: 8 x 2", 1.0" v.c.
• Woofer: 12", 2.5" v.c.

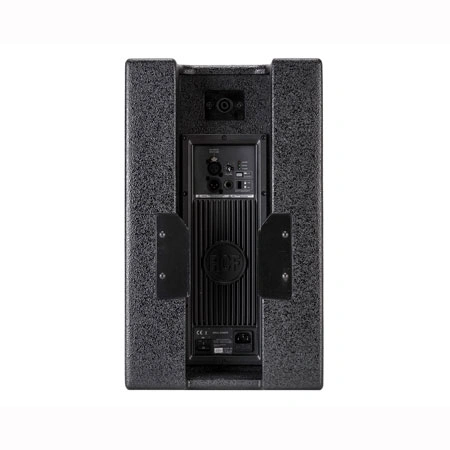

Input/Output Section

• Input connectors: Jack-XLR male
• Output connectors: XLR female
• Input sensitivity: -2 dBu / + 4 dBu

Processor Section

• Crossover frequencies: 220 Hz
• Protections: thermal, rms
• Limiter: Soft limiter
• Controls: Volume, EQ, phase, xover

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: VDE connector

Cabinet

• Cabinet Material: Baltic birch plywood
• Hardware: 2 x M6
• Handles: 1 top
• Pole Mount/Cap: Yes
• Colour: black

Physical Specifications

• Height: 530/20.86 mm/inch
• Width: 346/13.62 mm/inch
• Depth: 459/18.10 mm/inch
• Net Weight: 23.8/50.70 kg/lbs

Most Popular Accessories & Related Items

<

RCF EVOX 12

$2499.99

RCF EVOX J11 Black

$1999.99

RCF EVOX J9 Black

$1499.99

RCF EVOX JMIX9

$1999.99

RCF EVOX JMIX9 White

$1999.99

>

Frequently Asked Questions (FAQ)

What is the power output of the RCF EVOX 8?

The RCF EVOX 8 delivers 1400W of powerful sound with a built-in Class-D amplifier for professional audio performance.

Is the RCF EVOX 8 good for DJs and live events?

Yes, it is ideal for DJs, live bands, weddings, corporate events, and medium to large venues with clear and powerful sound output.

What size subwoofer does the RCF EVOX 8 have?

It features a 12-inch high-performance subwoofer that provides deep, punchy bass and strong low-end response.

Is the RCF EVOX 8 easy to carry and set up?

Yes, its compact column design makes it portable, lightweight, and quick to set up for mobile DJs and event professionals.

Can the RCF EVOX 8 be used for outdoor events?

Yes, it performs well in outdoor environments, offering wide coverage and consistent sound clarity.

Does the RCF EVOX 8 support Bluetooth?

No, it does not have built-in Bluetooth and requires an external mixer or audio source.
