RCF EVOX JMIX9

EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth® streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. A 1.75" compression driver on a 120° x 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3" transducers and a high-power 12" bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.

FEATURES

• 8-Ch True-Stereo Digital Mixer w/ Bluetooth®
• 130 dB Max SPL
• 2100 W Class-D Amplifier - Built-In DSP
• 1.75" Neo Compression Driver - 120° X 40° True Resistive Waveguide
• 6 x 3" Full-Range Neo Transducers
• 12" High-Power Woofer
• Enhanced Coverage And Clarity
• Sleek Composite Cabinet With Aluminum Stand Mount
• Top Speaker Padded Carrying Bag Included

THE ALL-IN-ONE SOLUTION
ANY VENUE, ANY EVENT

Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. It's the ideal solution when a compact, all-in-one sound system is required. Best-in-class sound, power and reliability, with RCF-engineered components, premium materials, and a studio-quality signal chain.

8-Channel Stereo Digital Mixer.

The JMIX9 model integrates a powerful 8-channel stereo digital mixer, delivering a complete, portable solution for performers, DJs, bands, and presenters. A bright 2.4" color touch display with physical encoders provides fast, intuitive access to all functions, while the JMixRemote app for iOS and Android enables wireless mixing and system management.

Studio-Quality Input Section

JMIX9 is equipped with four MIC/LINE inputs with combo connectors, high-performance THAT® preamps, (each with individual phantom power) and digital gain control. Inputs 1-4 can be linked as stereo pairs for keyboards, instruments, or playback sources. Inputs 5-8 include a stereo TRS line input and a stereo 3.5 mm input shared with Bluetooth® connectivity for audio streaming. Each input channel offers a high-pass filter, compression, and a 3-band EQ for precise tonal shaping. Internal stereo reverb with individual send levels adds professional polish to vocals and instruments.

Designed for Practical Use

• Mono/Stereo operation, with dedicated XLR out for stereo pairing with EVOX J9
• High-pass filter and a 3-band EQ on each channel, ch 1-4 add a one-knob compression,
• Flexible Audio Ducker, Stereo Reverb send
• Main Output with stereo 8-band EQ
• AUX Bus with 8-band EQ, pre/post selection, and dedicated XLR output for monitoring, FX or additional output

Quick Workflow

The 2.4" color touch display interface is optimized for clear, efficient control, complemented by high-quality endless encoders and gesture support for accelerated workflow. A dedicated Main Level control ensures straightforward control at all times. EQ Fast Edit provides instant access to EQ curves with automatic zooming for accurate parameter control. A fully assignable MULTI pushbutton gives quick access to essential tasks, including All Mute, Attenuation, FX Mute, Ducker and more. Scene save/load capability allows instant recall of performance setups. A screen-lock function prevents accidental changes during operation.

AUX Send

• Mixer View: Main Mix, FX send, AUX send
• Gesture-based switching between views for fast access
• Full stereo operation when paired with an EVOX J9
• (stereo link-pairing)

Output EQ

• Access: press MAIN LEVEL encoder
• 8-band stereo EQ on Main Mix
• 4 encoders mapped to EQ band parameters

• Programmable MULTI KEY button
• Path: SETTINGS > UTILITIES > MULTI FUN KEY
• Assignable MUTE: All Outputs, AUX Out, FX Return

Input Edit Page

• Access: press/click selected input encoder
• Input channel edit: HPF, 3-band EQ, Compressor, Pan
• Inputs 1-4: MIC/LINE selection, Gain, per-channel +48 V
• 6-encoders row reassigned per function

WIRELESS CONTROL

JMIXRemote App

The JMixRemote App provides complete wireless control of every function from any iOS or Android smartphone via Bluetooth Low Energy (BLE) link. The App is compatible with both JMIX8 and JMIX9, ensuring a unified control experience across the EVOX series. An optional security PIN prevents unauthorized connections (JMIX9 only).

True 3-Way Design

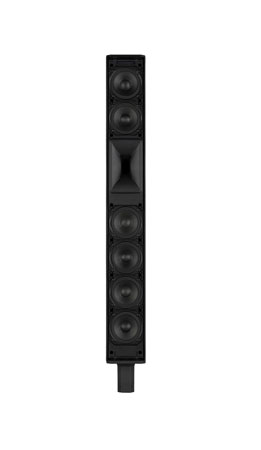

Neodymium compression driver (1.75" voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.

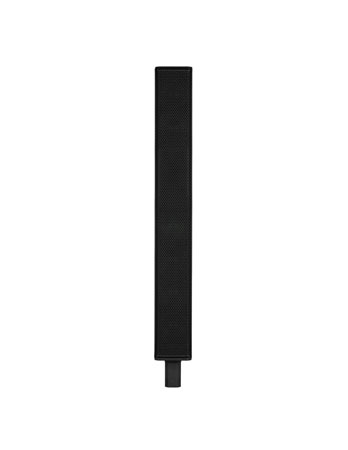

The forward radiation of the array of 6x3" neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.

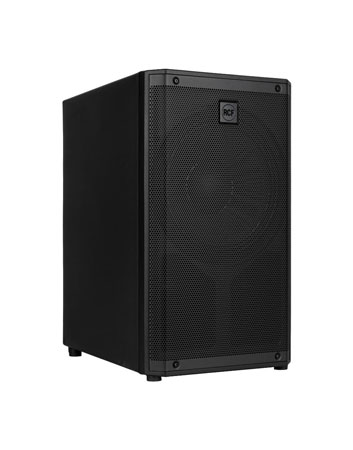

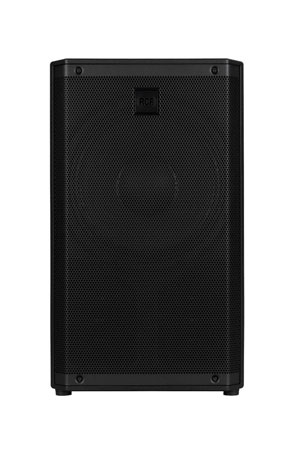

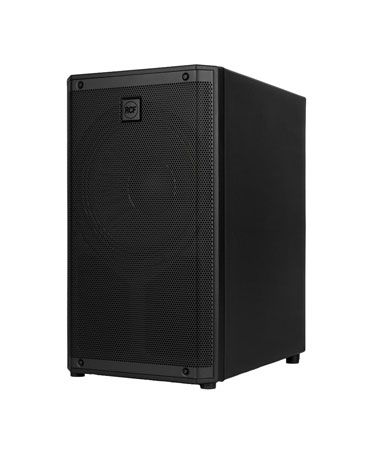

12" RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.

Fast Transients. Zero Compromise.

Powered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.

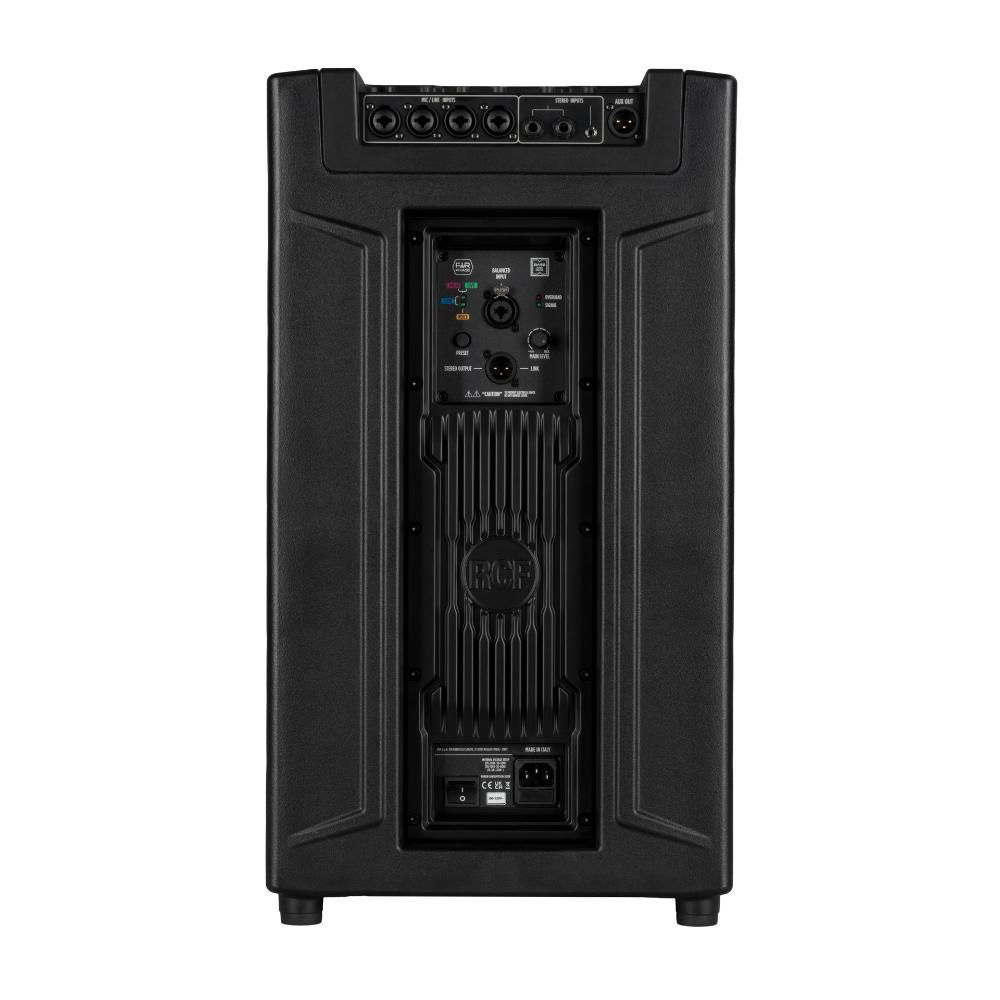

Highly energy-efficient, the JMIX9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.

The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. JMIX9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.

Variable Height Configuration

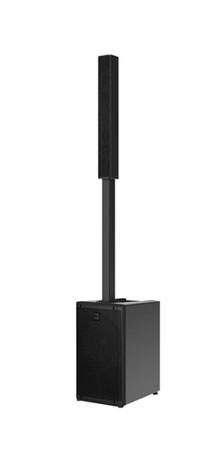

Black or white finishes, refined design, premium-grade materials, and ergonomic details that maximize portability while preserving the EVOX family's sleek, familiar look. An included lightweight aluminum-alloy distance pole with integrated connections separates the top from the subwoofer; an optional half-size pole extension is available. The heights of J9 and JMIX9 are configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles.

Quick Setup. Ready to Play.

Available in black or white, EVOX J9 includes a lightweight aluminum-alloy pole that links the column to the subwoofer and integrates all required connections for fast setup. Height is configurable: mount the column at standard height with the full-length pole, place it at zero offset directly on the bass enclosure, or raise it with full- or half-length pole extensions.

Ready for the Road

Every EVOX system includes a padded column transport bag for essential protection. To complete your setup, add an aluminum pole extension for quick, flexible height adjustments (available in half- and full-height options). For enhanced transport and storage, choose the optional protective subwoofer cover or the trolley-style cover with wheels for easy mobility.

Digital Signal Proficiency

The EVOX J DSP platform is a real-time DSP engine that delivers unparalleled processing density and scalability, propelling RCF speakers to a new level of performance, and incorporates all RCF proprietary algorithms for protection and tuning.

Bass Motion Control®

EVOX J speakers equipped with Bass Motion Control (BMC) deliver the lowest audible frequencies without compromising woofer stability, with extended linearity and improved sound integrity. The BMC method creates a complete map of the woofer's dynamic behavior to generate a custom algorithm that limits overexcursions. Traditional high-pass filters protect the woofer from over-excursion but change the phase/frequency response. In contrast, the new BMC algorithm protects the woofer while enabling full freedom in signal reproduction.

New perspective on linearity

EVOX J loudspeakers are engineered with proprietary FiRPHASE processing to deliver transparent sound, exceptional clarity, and precise imaging. FiRPHASE optimizes phase response across the listening area, helping provide consistent coverage and a natural transient response while maintaining low system latency. The algorithm refines the transducer transfer function and, where needed, corrects amplitude, reducing the effects of cabinet-related resonances and acoustic cancellations.

Specification

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 40 Hz - 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 40°

TRANSDUCERS

• Compression Driver: 1 x 0.75'' neo, 1.75'' v.c
• Fullrange: 6 x 3.0'' neo, 1.0'' v.c
• Woofer: 1 x 12'', 2.5'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 200 Hz/1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Digital mixer controlled by touch screen and encoders

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: VDE

ELECTRONIC SPECIFICATIONS

• Frequency Response: 20 Hz - 20 Hz
• THD+N, 20dB gain, 0dBu out: 0.003% A-Weighted

PROCESSING

• Processing Channels: 8
• Signal Processing: 32 Bit
• A/D-D/A conversion: 24 Bit @ 48.0 kHz
• Dynamic range: 114

INPUTS

• Mic: 4
• Remote Controlled Storable Gain: Yes
• Gain Range: 0 dB - 36 dB
• Input Noise Level: -114 dBu A-Weighted
• Mic Inputs Impedance: 3 kohm
• Low Cut: 20 Hz - 400 Hz
• Phantom Power +48V: Yes
• Mono Line: 4
• Gain Selection: 0 dB - 36 dB
• Line Input Impedance: 10 kohm
• A/D Dynamic range: 120 dB
• Stereo Line: 2
• Gain Selection: 0 dB - 0 dB
• Stereo Line Input Impedance (kOhm): 24 kohm

OUTPUTS

• Main MIX: 1
• FX Send: 1
• AUX Send: 1
• AUX Output: 1
• Phones: 1

OUTPUTS SPECIFICATIONS

• Main Out Impedance: 150 ohm
• Main Out Level: 20 dBu
• Aux Out Impedance (ohm): 150 ohm
• Aux Out Level: 20 dBu
• Phones Out impedance (ohm): 100 ohm
• Phones Out Level: 20 dBm
• D/A Dynamic Range: 118 dB
• COMPRESSORS: RCF Compressors
• Compressors on MIC/LINE CH1 to CH4 Inputs

EQ

• Input Channels EQ: 1 Semi Parametric / 2 Shelving
• Description: 3 Band EQ: High and Low band shelving, MID band peak on INPUT
  8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output.

AUXILIARY SENDS

• AUX: 1 PRE/POST
• FX POST: 1

INTERNAL EFFECTS

• Send Effects: 1

MASTERING PROCESSORS

• Main OUT processors: 1
• Main OUT type: MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.

ELECTRICAL SPECIFICATIONS

• Power supply: Internal

STANDARD COMPLIANCE

• Safety agency : CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: PP Composite
• Handles: 1 Top
• Pole mount/Cap: Quick-fit socket
• Grille: Steel
• Color: Black, White - RAL 9003

SIZE / WEIGHT

• Height: 2080.1 mm / 81.89 inches
• Width: 350 mm / 13.78 inches
• Depth: 460 mm / 18.11 inches
• Weight: 28.8 kg / 63.49 lbs

SHIPPING INFORMATION

• Package Height: 676 mm / 26.61 inches
• Package Width: 451 mm / 17.76 inches
• Package Depth: 581 mm / 22.87 inches
• Package Weight: 32.5 kg / 71.65 lbs
