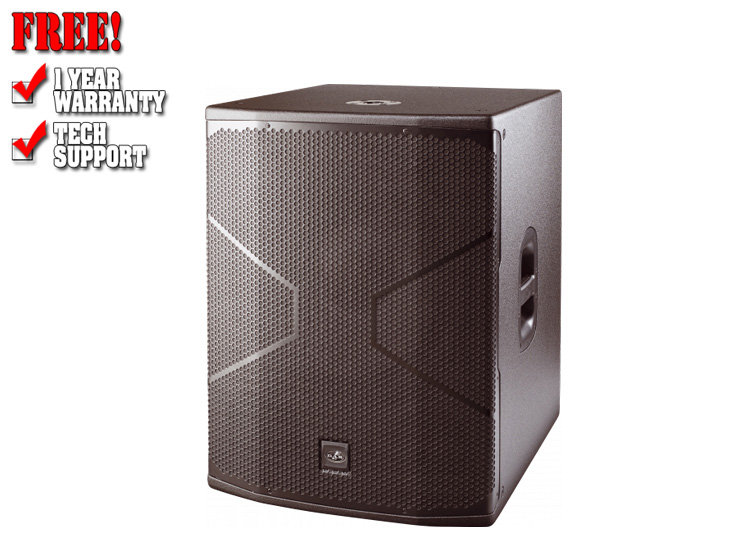

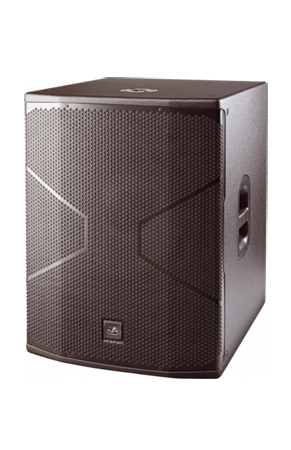

DAS VANTEC-18A

The VANTEC-18A is a powered subwoofer system designed to provide extended bass response for the Vantec-full range cabinets. A 2000 Wpeak advanced Class D amplifier drives a DAS 18LX-long excursion loudspeaker incorporates a 4" voice coil for high power handling and output.

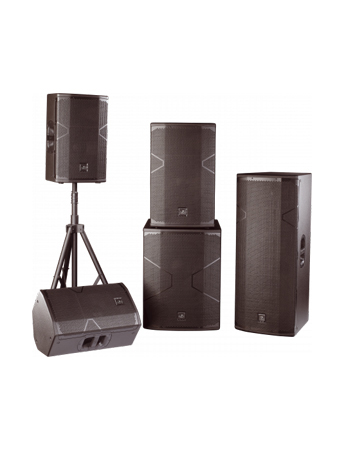

The VANTEC-18A subwoofer system offers two balanced inputs with stereo filtered output connections for Vantec-satellite systems. The variable crossover ranges from 80 Hz 125 Hz and can be defeated to offer stereo "loop thru" connections. A gain control and polarity reverse feature increase user control over the system. A standard 35 mm pole mount socket allows the VANTEC-18A to be used with satellite systems.

Features

• Powered subwoofer system
• High output 18LX loudspeaker
• Polarity switch (0°180°)
• Filtered output defeat switch
• Variable 80-125 Hz lowpass filter
• Gain control
• Rigging points

Performance

• Frequency Range (-10 dB) Loud: 35 Hz - 125 Hz - Deep: 30 Hz - 125 Hz
• Maximum Peak SPL at 1 m 134 dB

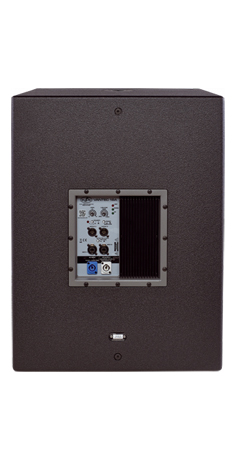

Electronics and Connectors

• Nominal Amplifier Power (continuous) 1000 W
• Nominal Amplifier Power (peak) 2000 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 3 V (+12 dBu)
• Audio Signal Input Connector 2 x Female XLR
• Audio Signal Loop Thru Connector 2 x Male XLR
• AC Output Connector powerCON NAC3FCB
• Current Draw 230 V / 115 V 1.5 A/3.0 A

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Rectangular
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color Black
• Dimensions ( H x W x D ) 720 x 545 x 655 mm
  28,3 x 21,5 x 25,8 in
• Net Weight 40,5 kg ( 89,2 lb )

Components

• LF Driver 18LX

Shipping

• Carton Dimensions ( H x W x D ) 820 x 616 x 726 mm
  32,3 x 24,3 x 28,6 in
• Shipping Weight 44,0 kg ( 97,0 lb )
