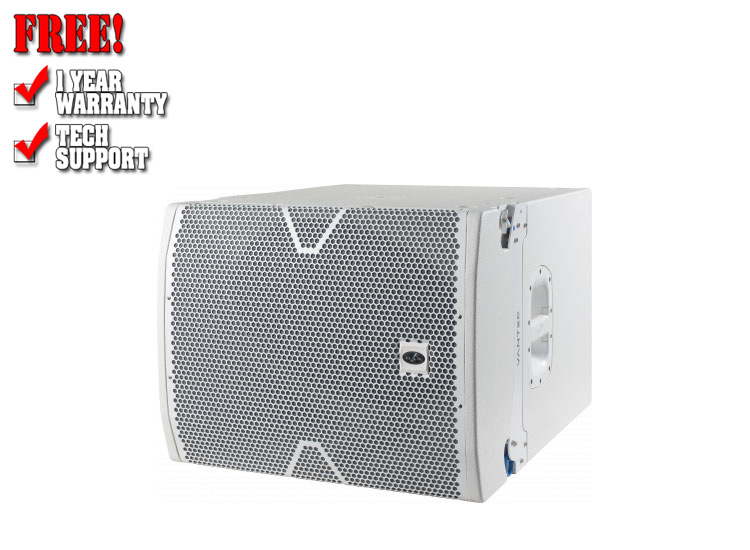

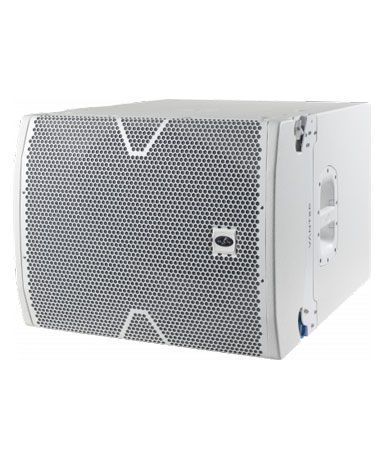

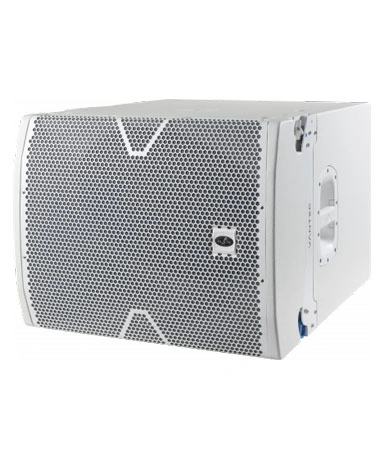

DAS VANTEC-118A-W

The VANTEC-118A-W is an active front loaded bass system which has been designed specifically for use with the VANTEC-20A-W curved source line array. Compact in size, the unit can be flown in arrays or linked together in ground stacks thanks to the DAS Click-Lock™ rigging system which is compatible with the VANTEC-20A-W.

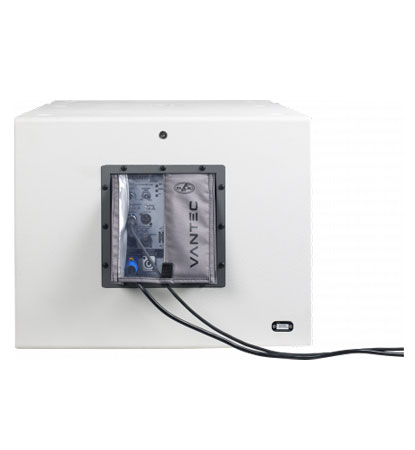

The electronics package includes a 2000 Wpeak Class D amplifier and 24-bit high-end DSP for exceptional audio reproduction. A unique "Deep-Loud" EQ switch allows users to tailor the bass output to provide a low subwoofer type response using the "Deep" setting or a louder hard hitting performance in the "Loud" setting. On the rear panel, controls can be found for gain, polarity and a continually variable low-pass filter which ranges from 80 Hz to 125 Hz. The VANTEC-118A-W is phase response coherent with the other Vantec Series active tops such as the VANTEC-20A-W offering precise alignment without the need of an external DSP.

Features

• Active front-loaded subwoofer system
• 1 x 18" DAS 18FW loudspeaker
• Class D amplifier 2000 Wpeak
• Digital signal processing (DSP)
• Unique "Deep-Loud" bass EQ switch
• Variable low-pass filter 80 Hz-125 Hz
• LED ON/OFF switch on backplate
• Rigging compatible with VANTEC-20A
• Top located pole mount socket

Performance

• Frequency Range (-10 dB) 35 Hz - 125 Hz
• Maximum Peak SPL at 1 m 134 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous) 1000 W
• Nominal Amplifier Power (peak) 2000 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 3 V (+12 dBu)
• Audio Signal Input Connector 2 x Female XLR
• Audio Signal Loop Thru Connector 2 x Male XLR
• AC Output Connector powerCON NAC3FCB
• Current Draw 230 V / 115 V 2.2 A/4.4 A

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Rectangular
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color White
• Dimensions ( H x W x D ) 490 x 615 x 785 mm
• 19,3 x 24,2 x 30,9 in
• Net Weight 45,2 kg ( 99,4 lb )

Components

• LF Driver 18FW

Shipping

• Carton Dimensions ( H x W x D ) 730 x 660 x 880 mm
  28,7 x 26,0 x 34,7 in
• Shipping Weight 48,0 kg ( 105,6 lb )
