DAS EVENT-26A

Description

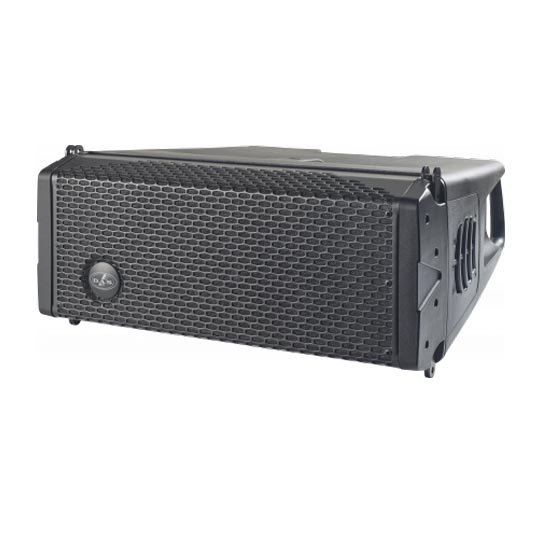

The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.

The EVENT-26A combines two 6.5? transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric "V" shaped configuration of the cone transducers provides consistent 100° of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.

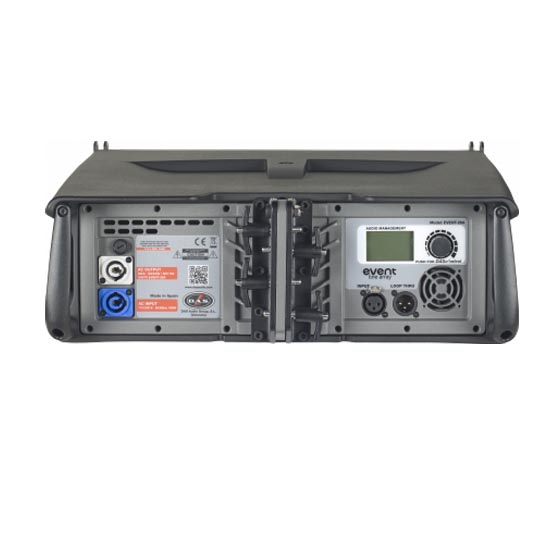

Powered by a two-channel Class D amplifier providing 800 Wpeak power, the amp's rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrolTM interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.

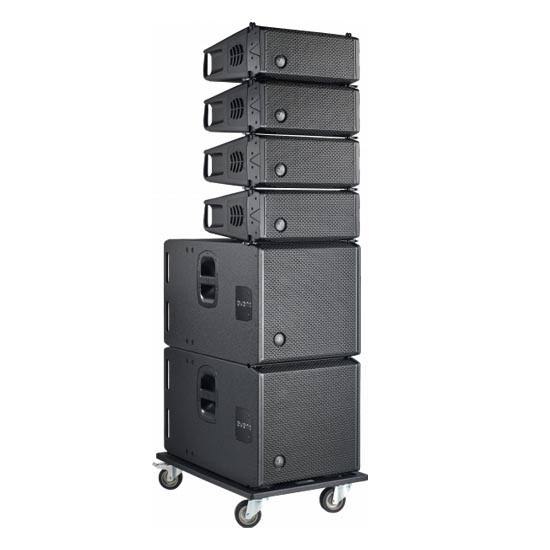

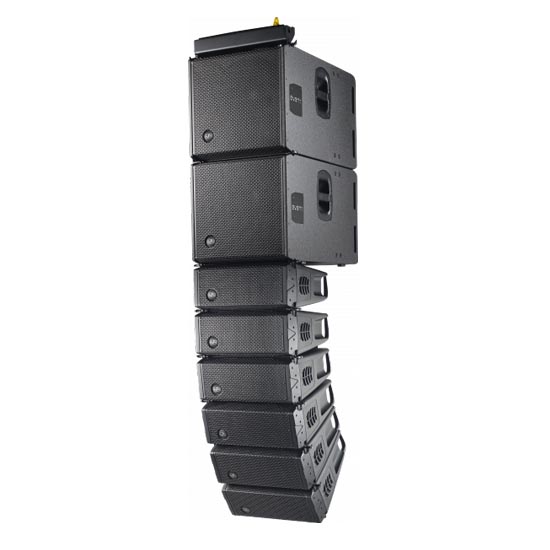

Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1° steps from 0° to 10°.Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.

Features:

• Ultra-compact, lightweight powered line array
• High-efficiency Class D amplifier with SMPS
• Dual voltage mains for use anywhere in the world
• Easy system configuration thanks to DAScontrolTM
• High-end 24-bit DSP with LCD screen
• FIR processing for constant phase response
• FSSTM Fast Set Splay rigging for quick deployment

Applications:

• House of worship
• Theatres, auditoria and performing arts centers
• Live music clubs
• Corporate A/V
• Live sound touring/Rental services

Specifications:

• Performance
  • Frequency Range (-10 dB) : 76 Hz - 19 kHz
  • Horizontal Coverage (-6 dB) : 100°
  • Vertical Coverage : Splay Dependent
  • Maximum Peak SPL at 1 m : 131 dB
• Electronics and Connectors
  • Nominal Amplifier Power (continuous) : 400 W
  • Nominal Amplifier Power (peak) : 800 W
  • Input Type : Balanced
  • Input Impeadance : 20 kohms
  • Input Sensitivity : 6.2 V (+18 dBu)
  • Audio Signal Input Connector : 1 x Female XLR
  • Audio Signal Loop Thru Connector : 1 x Male XLR
  • AC Output Connector : powerCON NAC3MPB
  • Current Draw 230 V / 115 V : 0.8 A/1.6 A
• Enclosure
  • Enclosure Construction : Polypropylene
  • Enclosure Geometry : Trapezoidal
  • Rigging : Captive Rigging System
  • Color : Black
  • Dimensions ( H x W x D ) : 225 x 480 x 500 mm, 8,9 x 18,9 x 19,1 in
  • Net Weight : 16,5 kg ( 36,4 lb )
• Components
  • LF Driver : 6MI
  • HF Driver : M-60
• Shipping
  • Carton Dimensions ( H x W x D ) : 565 x 565 x 290 mm, 22,2 x 22,2 x 11,4 in
