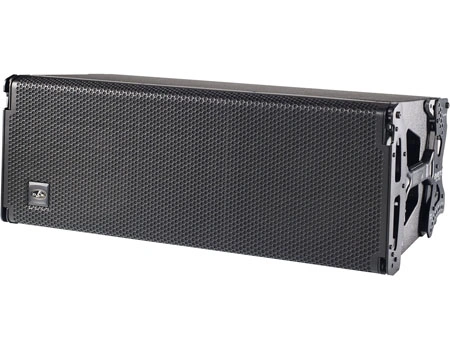

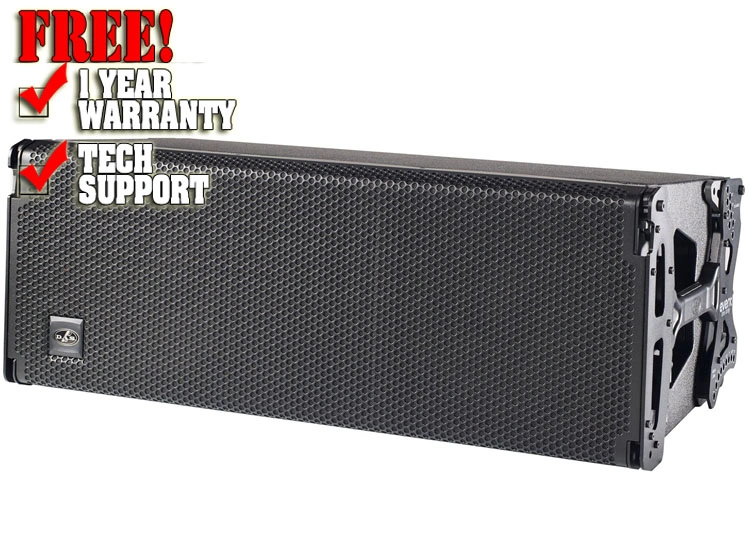

DAS Event 212A Dual 12-Inch Powered Line Array Speaker

The DAS EVENT-212A is a powered, 3-way line array which employs two DAS 12? loudspeakers in a dual band configuration where each speaker operates in a specific frequency range. At low frequencies, the speakers work in tandem for maximum power, each driven by a dedicated amplifier channel providing 1000 Wpeak output power.

The DAS loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide to provide unmatched performance, sensitivity and coverage in both the 90° and 120° formats offered.

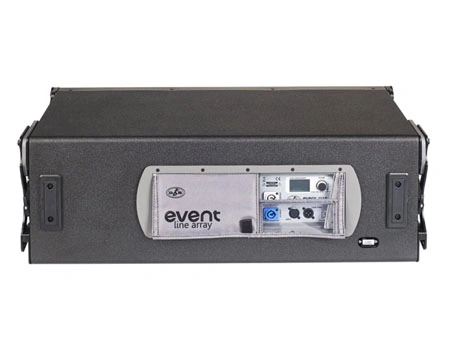

The EVENT-212A line array incorporates the DAScontrol™ interface which offers a quick and hassle-free set-up of the systems in arrays and easy alignment with the EVENT-218A and EVENT-121A subwoofer systems. Presets for the number of units of the array, HF compensation for throw distances, and correction for the splay angle of the array can be selected by way of DAScontrol™ and the LCD screen on the located on the back of the cabinet.

The powerful digital signal processing of the EVENT-212A includes Finite Impulse Response (FIR) filters providing linear phase response and precise impulse response which in terms of performance, results in added clarity, defined attack in percussion and overall, a more natural sound.

Features

• Powered 3-way line array system
• Clase D amplifier 3 x 1000 Wpeak
• DAScontrol™ Interface for fast setup
• High-end DSP chipsets with FIR filters
• 2 x DAS 12" loudspeakers in dual band configuration
• 1 x DAS M-75 compression driver
• EVENT-212A-120 with 120° wide coverage
• Top grade Birch cabinet construction
• Robust quick-rig professional rigging hardware

Specifications

• Nominal LF Amplifier Power: 1000W peak - 500W continuous
• Frequency Range (-10 dB): 60 Hz - 20 kHz
• Rated Peak SPL at 1 m: 135 dB
• Dispersion: 90° Nominal
• Input: 1 x Female XLR
• Loop Thru: 1 x Male XLR
• AC Input: powerCON NAC 3 FCA
• AC Output: powerCON NAC 3
• AC Requirements: 115 V, 3.6 A, 50 Hz/60 Hz, 230 V, 1.8 A, 50 Hz/60 Hz
• Enclosure Material: Birch Plywood
• Color/Finish: Black/ISO-flex
• Dimensions: 12.7" x 34" x 17" (HxWxD)
• Weight: 89 lbs.

  What is the DAS EVENT-212A?
A: The EVENT-212A is a powered 3-way line array speaker using dual 12-inch drivers plus a high-frequency compression driver. It is built for concerts, festivals, houses of worship, and professional rental systems.

  Is it active or passive?
A: It is active/self-powered, meaning the amplifier and DSP are built into the cabinet, so no external amplifier rack is required.

  Does it include DSP?
A: Yes. It includes onboard DSP with presets for array size, HF throw compensation, splay-angle correction, and alignment with EVENT subwoofers.

  What subwoofers pair well with it?
A: Common matching options in the EVENT family are the EVENT-218A and EVENT-121A subwoofers for extended low-frequency performance.

  Is it good for DJs?
A: Yes - but it is aimed at large professional events, touring, and production companies. It is generally more system than a typical mobile DJ needs.

<
