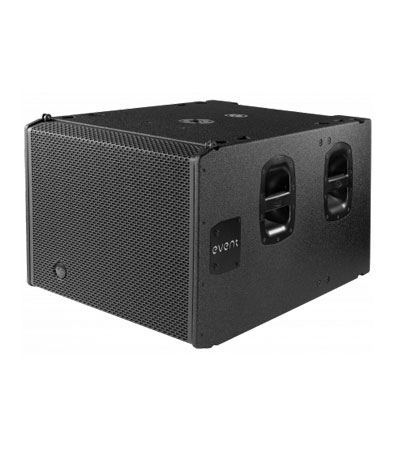

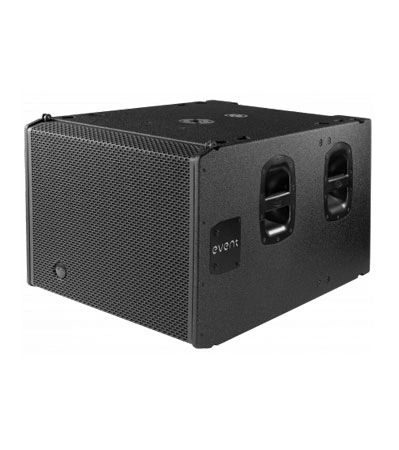

DAS Event 118A Powered 18" Bass-Reflex Subwoofer System

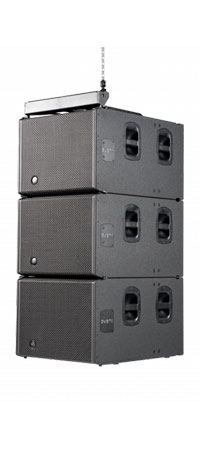

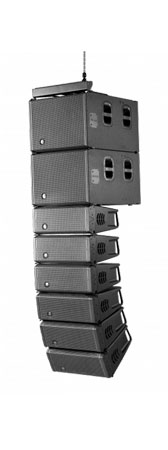

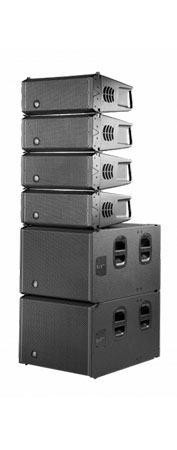

The EVENT-118A is a robust powered subwoofer system that incorporates a front-loaded 18" low-frequency transducer developed by DAS, designed to deliver profound and accurate bass reinforcement. As the companion subwoofer for the EVENT-28A, it shares a compatible rigging system, allowing for seamless integration whether the EVENT-28A is flown from or stacked above the EVENT-118A.

The 18FWN 18" loudspeaker, engineered by DAS, is central to the EVENT-118A's powerful performance. Optimized using Finite Element Analysis (FEA) and equipped with neodymium magnets for reduced weight, the 18FWN offers an extended 3" voice coil for high efficiency and long excursion. This design allows for a power handling capacity of 2000 Wpeak, ensuring the subwoofer delivers deep, impactful bass. Efficient cooling is achieved through the vented pole piece and numerous apertures in the speaker's back plate, which significantly reduce power compression and enable high acoustic output over extended periods.

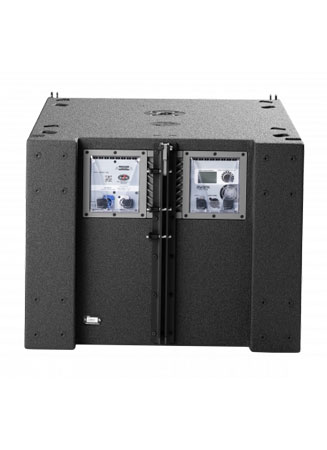

The system is driven by a cutting-edge 2000 Wpeak Class D amplifier, providing ample power for any setting. Quality Neutrik® XLR input connectors and stereo "loop thru" outputs on the rear panel provide signal continuity for the EVENT-28A systems or other components in a larger setup. Digital presets accessible via the DAScontrol™ interface on the rear of the cabinet simplify system configuration, making setup quick and user-friendly. The EVENT-118A also offers a simple selection of cardioid presets when used in pairs or groups of three units, effectively minimizing rearward sound radiation and optimizing bass coverage.

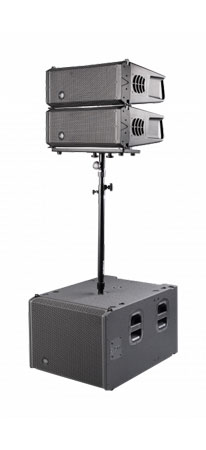

Constructed from Birch plywood, the EVENT-118A's enclosure is robust and designed for longevity. The cabinet is finished with DAS ISO-flex protective coating, enhancing durability and making it suitable for both installation and touring applications. The rigging hardware is fully compatible with the EVENT-28A, allowing various configurations, whether flown or stacked. Additionally, a pole mount socket on the top of the unit supports combo configurations with the EVENT-28A or other compatible full-range systems.

Features

• Active front-loaded subwoofer system
• 1 x 18" DAS 18FW4N loudspeaker
• High-efficiency Class D amplifier with SMPS
• Dual voltage mains for use anywhere in the world
• Easy system configuration thanks to DAScontrolTM
• High-end 24-bit DSP with LCD screen
• EVENT-28A compatible rigging hardware

Applications

• House of worship
• Theatres, auditoria and performing arts centers
• Live music clubs
• Corporate A/V
• Live sound touring/Rental services

Technical Information

Performance

• Frequency Range (-10 dB) 35 Hz - 125 Hz
• Maximum Peak SPL at 1 m 134 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous) 1000 W
• Nominal Amplifier Power (peak) 2000 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 1.95 V (+8 dBu)
• Audio Signal Input Connector 2 x Female XLR
• Audio Signal Loop Thru Connector 2 x Male XLR
• Control DAScontrol™
• AC Output Connector powerCON NAC3MPB
• Current Draw 230 V / 115 V 2.1 A/4.2 A

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Rectangular
• Rigging Captive Rigging System
• Finish ISO-flex Paint
• Color Black
• Dimensions ( H x W x D ) 510 x 635 x 840 mm
• 20,0 x 25,0 x 33,0 in
• Net Weight 43,0 kg ( 94,8 lb )

Shipping

• Carton Dimensions ( H x W x D ) 560 x 690 x 920 mm
• 22,0 x 27,2 x 36,2 in
• Shipping Weight 49,0 kg ( 108,0 lb )

  What is the DAS EVENT-118A?
A: The EVENT-118A is a powered 18-inch bass-reflex subwoofer designed for professional sound reinforcement. It is the matching subwoofer for the DAS EVENT-28A line array system and can be used in flown or stacked setups.

  Is the EVENT-118A active or passive?
A: It is an active / self-powered subwoofer with a built-in Class D amplifier, so no external amplifier is required.

  How much power does it have?
A: The onboard amplifier is rated at 1000 W continuous and 2000 W peak output.

  Which speaker pairs best with it?
A: It is specifically designed to pair with the DAS EVENT-28A line array module, using compatible rigging hardware.

  Does it support cardioid setups?
A: Yes. The EVENT-118A includes cardioid presets when used in pairs or groups of three units, helping reduce rearward bass energy.

<
