DAS Audio Action-S18A

ACTION-S18A is a high-power active subwoofer system that incorporates a 1500 Wpeak amplifier and single 18FW4 speaker with a 3" coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that that works to reduce the effects of voice coil heating.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.

Features

• Active subwoofer system
• 1500 Wpeak Class D amplifier
• Birch plywood enclosure
• Durable ISO-flex paint

Technical Data

Performance

• Frequency Range (-10 dB) 35 Hz -125 Hz (variable LPF)
• Maximum Peak SPL at 1 m 134 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous) 750 W
• Nominal Amplifier Power (peak) 1500 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 1.95 V (+8 dBu)

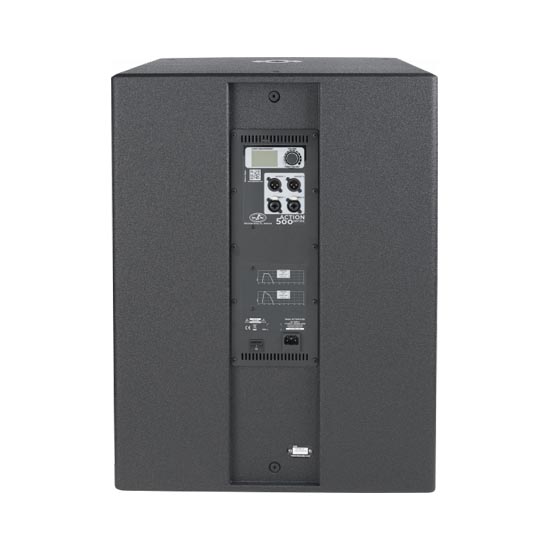

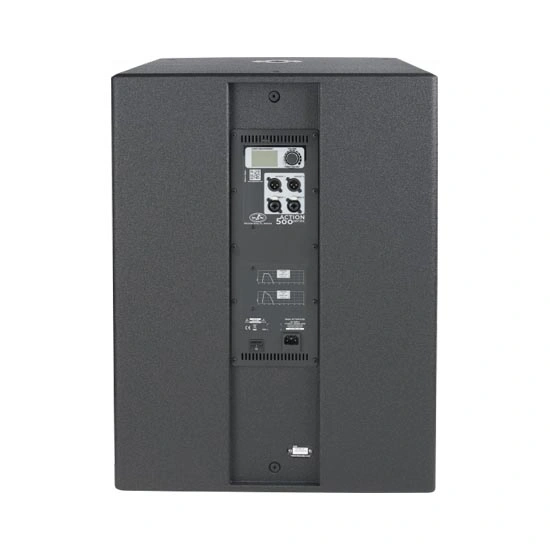

• Audio Signal Input Connector 2 x Female XLR
• Audio Signal Loop Thru Connector 1 x Male XLR
• Control DAScontrol™
• Current Draw 230 V 1.4 A

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Rectangular
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color Black
• Dimensions ( H x W x D ) 720 x 545 x 660 mm
• 28,3 x 21,5 x 26,0 in
• Net Weight 42,5 kg ( 93,7 lb )

Components

• LF Driver 18FW4

Shipping

• Carton Dimensions ( H x W x D ) 795 x 595 x 690 mm
• 31,3 x 23,4 x 27,2 in
• Shipping Weight 45,5 kg ( 100,3 lb )
