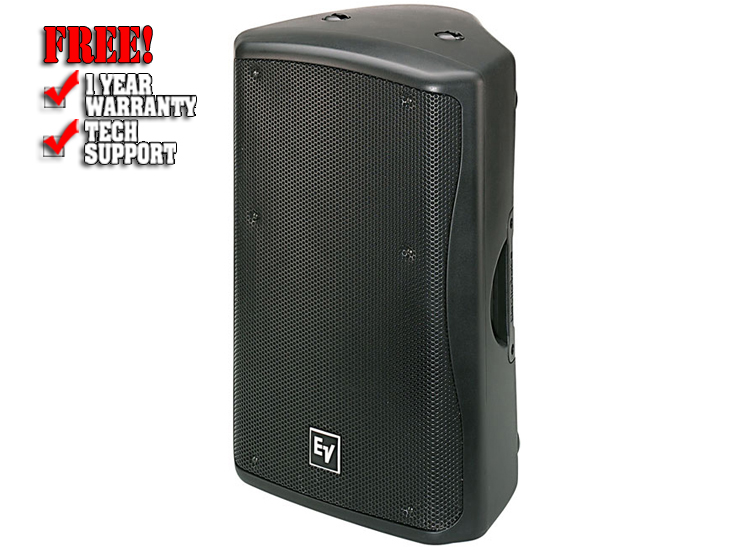

Electro Voice ZX5

Description

The Electro-Voice® Zx5 is a 15-inch, two-way cabinet with the most elegant, high-impact, composite enclosure, featuring the newest generation of EV components: the all-new DXV3150 500-watt, 15-inch woofer and the all-new, two-inch neodymium ND2 compression driver.

The Zx5 is rated for 600-watt, long-term power handling and is able to produce high SPLs while providing a very smooth frequency response. With two available coverage patterns (60 degree x 60 degree or 90 degree x 50 degree), two adjustable monitor angles (45 degrees or 55 degrees) and ten built-in rigging and suspension points allow for a variety of mounting accessories, the Zx5 fits a variety of applications such as installations of individual speakers or clusters in entertainment, houses-of-worship, as well as on stage with bands, musicians, and PA rental companies.

• Frequency Response (-3dB) 58 - 18000 Hz
• Frequency Response (-10dB) 39 - 20000 Hz
• Recommended High-Pass Frequency 36 Hz
• Sensitivity 1W/1m 98 dB
• Max. SPL / 1m (calc) 132 dB
• Coverage (nominal -6dB) H° 60 °
• Coverage (nominal -6dB) V° 60 °
• System Power Handling (continuous/program/peak) 600/1200/2400 Watts
• Low Frequency Power Handling (continuous/program/peak) 500/1000/2000 Watts
• High Frequency Power Handling (continuous/program/peak) 40/80/160 Watts
• LF Transducer DVX3150
• HF Transducer ND2
• Crossover Frequency 1500 Hz
• Nominal Impedance (Passive) 8 Ohms
• LF Nominal Impedance 8 Ohms
• HF Nominal Impedance 8 Ohms
• Minimum Impedance 6.5 Ohms
• Color Black
• Color White
• Flying Yes
• Input Connections Parallel Neutrik® NL4
• Outdoor Yes
• Chassis Size 15 inches
• Internal Crossover Selectable
• Speaker Type Fullrange, Mid-High, Two-Way, Wedges
• Weight Net 49.6 lbs
• Dimensions (HxWxD) 27.24" x 17.56" x 16.18"
