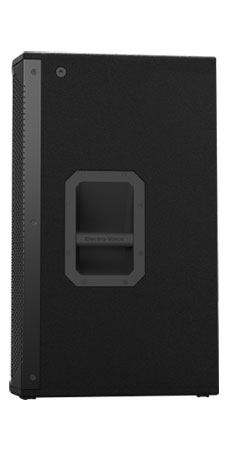

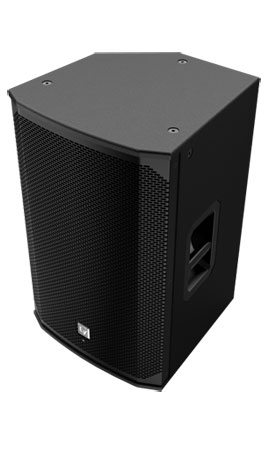

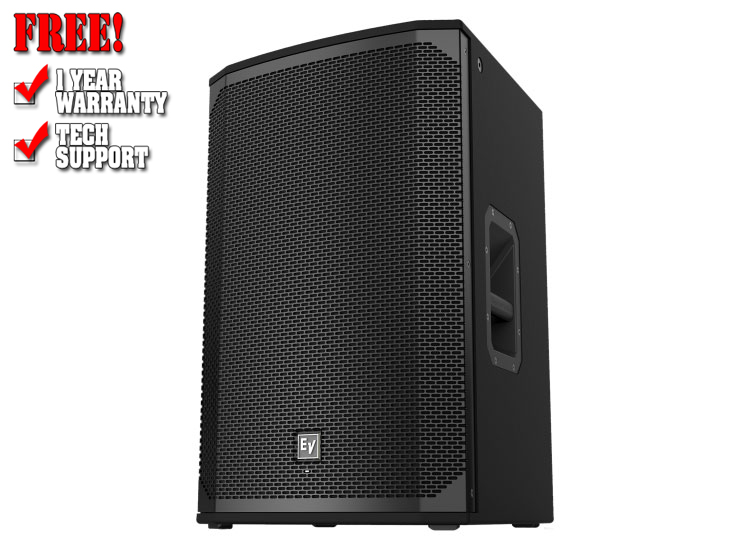

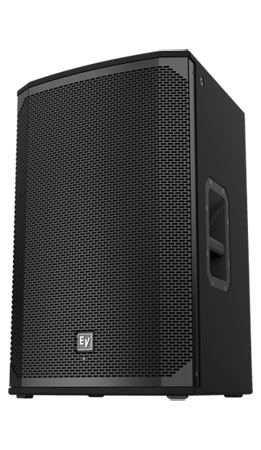

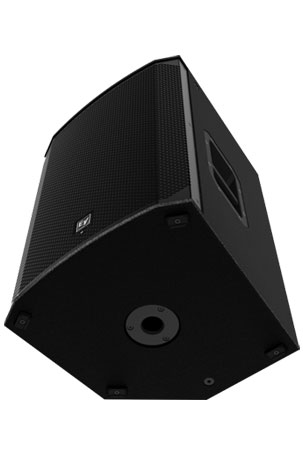

Electro-Voice EKX-15

Electro-Voice's EKX Series: maximum performance and best-in-class features

Electro-Voice's EKX Series combines first-rate sound quality with state-of-the-art technology. Great for portable and installed applications alike, these speakers cover a wide range of sound reinforcement needs. Top-quality components and EV's patented Signal Synchronized Transducer (SST) waveguide design combine to deliver precise coverage and first-class sound. And industrial-strength wood enclosures with durable EVCoat finish ensure that your speakers can endure the rigors of live use. We've found that these speakers are optimal for any application. Whether you mount them on a tripod, suspend them, or place them onstage for monitoring, you can expect top performance from the EKX Series.

Electro-Voice EKX-15 Features:

• 1600W power rating with 15-inch woofer and 1-inch high-frequency titanium compression driver
• 50Hz–20kHz frequency range and 132dB maximum SPL deliver immersive sound and room-shaking volume
• Signal Synchronized Transducer (SST) waveguide design ensures that your audience experiences precise and consistent coverage
• Mount it on a tripod, stack it on a subwoofer, suspend it, or position it onstage for monitoring
• Lightweight; built-in handles for easy transportation
• Rugged, road-ready construction

Tech Specs

• Powered: No
• LF Driver Size: 1 x 15"
• HF Driver Size: 1" HF titanium compression driver
• Impedance: 8 ohms
• Total Power: 1600W Peak
• Inputs: 2 x NL4 SpeakON
• Frequency Range: 50Hz-20kHz (-10 dB)
• Frequency Response: 75Hz-18kHz (±3 dB, full space)
• Crossover Frequency: 1600Hz
• Maximum Peak SPL: 132 dB SPL @ 1m
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 60°
• Enclosure Material: 15mm Plywood with EVCoat
• Mounting Options: Pole, Floor Wedge, Fly, Suspension points
• Height: 26.97"
• Width: 17.01"
• Depth: 16.89"
• Weight: 62.17 lbs.

  Is the Electro-Voice EKX-15 powered or passive?
A: The EKX-15 is a passive speaker, meaning it requires an external amplifier to operate.

  What amplifier is best for EKX-15?
A:

• 400W RMS @ 8Ω (minimum)
• Recommended: 600–1000W per channel @ 8Ω

This matches its 400W continuous / 1600W peak rating.

  What is the maximum SPL?
A: 132 dB peak SPL — suitable for medium to large venues.

  What type of events is it best for?
A:

• DJs (especially bass-heavy music)
• Live bands
• Corporate events
• Outdoor shows
• Installations (churches, halls)

  Can it be used as a stage monitor?
A: Yes, Designed with a 40° monitor angle for wedge use.
