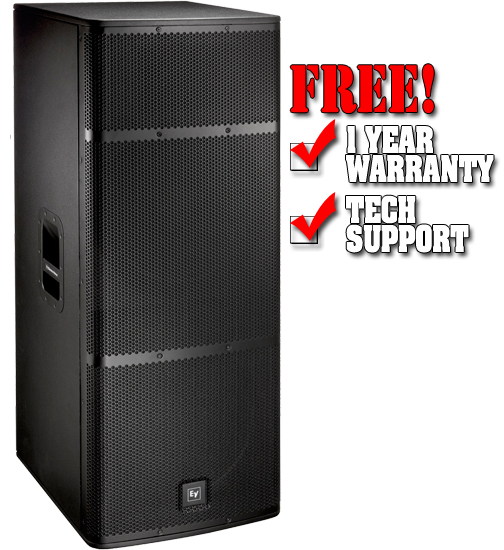

Electro Voice ELX215

Description

This twin woofer configuration delivers real low-end punch — ideal for applications that demand high-volume output and an ultra-wide frequency response from a single cabinet.

• Designed for House of Worship, Pro Music, and other applications.
• Dual 15” woofers and a 1.5” high-frequency titanium compression driver
• 38 Hz – 20 kHz frequency range
• 96 dB SPL sensitivity; 137 dB max SPL
• 600 W continuous and 2400 W peak power handling
• Rugged wood cabinet creates serious stage presence
• Axial Sensitivity 96 dB

• Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Frequency Response: (-3 dB) 62 Hz - 18 k Hz
• Frequency Response: (-10 dB) 38 Hz - 20 k Hz
• Recommended High-Pass Frequency 35 Hz
• Max. SPL/1m (calc) 137 dB
• Coverage: (Nominal -6 dB) H° 90 °
• Coverage: (Nominal -6 dB) V° 50 °
• LF Transducer (2) EVS-15K, 381mm (15”) Woofers
• HF Transducer DH-1K, 39mm (1.5”) Titanium Diaphragm Compression DriverCrossover Frequency 1.7 k Hz

• Nominal Impedance (Passive) 4 Ω
• Minimum Impedance 3.7 Ω
• Connector Type Dual NL4
• Grill 18GA Steel with Black Powdercoat
• Height: 45.43"
• Width: 17.01"
• Depth: 19.72"
• Weight: 97.22 lbs
