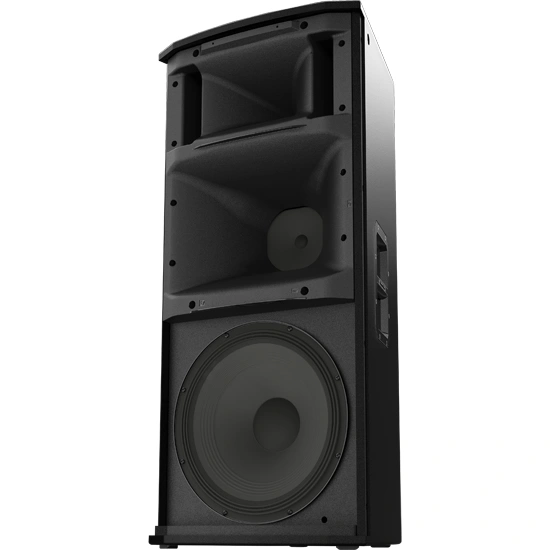

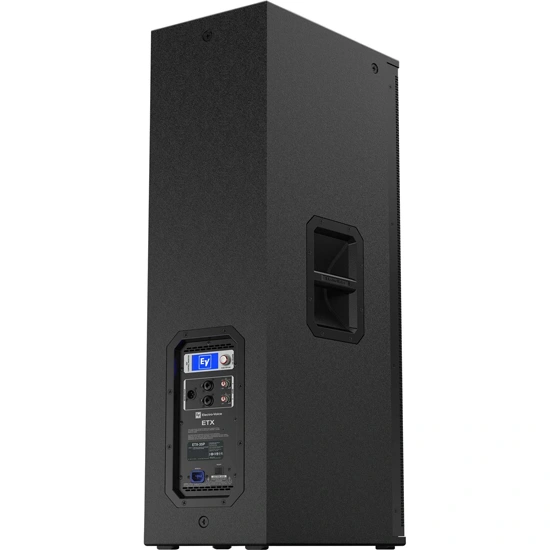

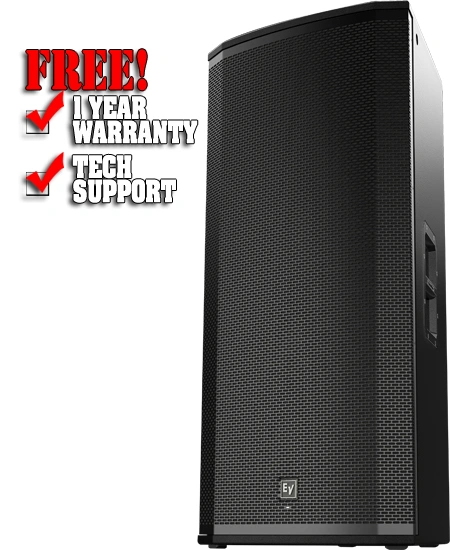

Electro Voice ETX35P

15" 3-Way Powered Loudspeaker

• Signal Synchronized Transducers (SST) Waveguide Design
• High Sensitivity, Low-Distortion Transducer Design
• Professional-Grade Components and Testing
• Best-in-Class Processing and Control
• 15-inch LF SMX woofer
• 6.5-inch MF driver
• 1.25-inch HF titanium compression driver
• 2000 W Class-D power amplifier with integrated FIR-Drive DSP
• 136 dB peak SPL
• Frequency Range: 38 Hz – 20 kHz
• Maximum SPL: 136 peak dB
• Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
• Power Rating: 2000 W
• Frequency Response: 48 Hz – 20 kHz
• Coverage (Nominal -6 dB) H: 60 °

• Coverage (Nominal -6 dB) V: 40 °
• LF Transducer: SMX2151 380 mm (15 in)
• MF Transducer: EVS-6C 6.5-in midbass driver
• HF Transducer: DH3-B 1.25-in titanium compression driver
• Crossover Frequency: 700 Hz, 2900 Hz
• Connector Type: (2) XLR/TRS combo jack and (1) XLR link output
• Enclosure Material: 18-mm, 13-ply birch plywood with EVCoat
• Grill: 16AWG steel with powdercoat
• Suspension: (8) M10 suspension points
• Height: 1023 mm (40.28")
• Width: 469 mm (18.46")
• Depth: 426 mm (16.77")
• Weight: 41.7 kg (91.93 lbs)

The new ETX family builds upon the industry-leading innovation and 85-year heritage of Electro-Voice audio engineering to offer the most advanced professional portable powered loudspeakers available today. Inside each low-profile, tour-grade wood enclosure are a host of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.

Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
