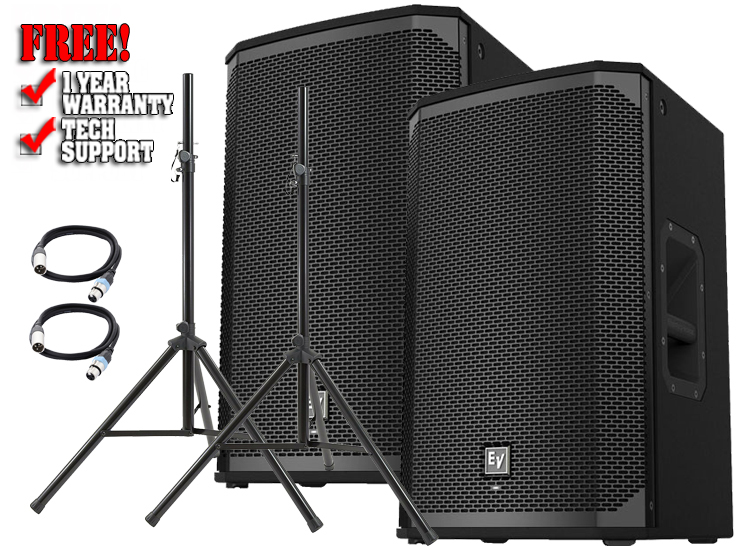

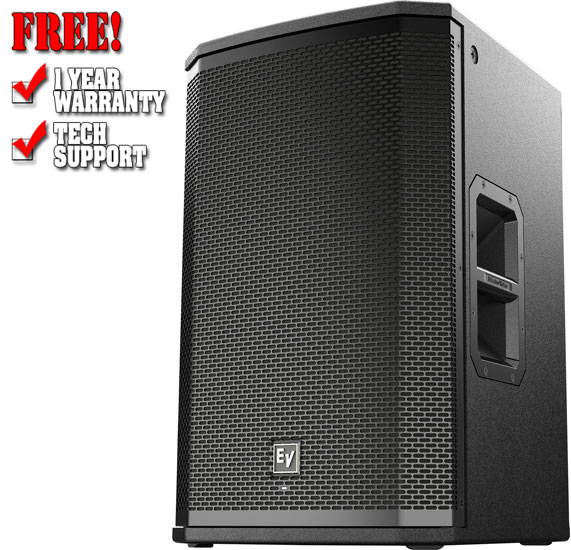

Electro Voice ETX12P 12-inch 2000 Watt Powered Speaker

Description

• Signal Synchronized Transducers (SST) Waveguide Design
• High Sensitivity, Low-Distortion Transducer Design
• Professional-Grade Components and Testing
• Best-in-Class Processing and Control
• 12-inch LF SMX woofer
• 1.25-inch HF titanium compression driver
• 2000 W Class-D power amplifier with integrated FIR-Drive DSP
• 135 dB peak SPL
• Frequency Range: 43 Hz – 20 kHz
• Maximum SPL: 135 peak dB
• Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
• Power Rating: 2000 W
• Frequency Response: 55 Hz – 20 kHz
• Coverage (Nominal -6 dB): H 90 °
• Coverage (Nominal -6 dB): V 60 °
• LF Transducer: SMX2120 300 mm (12 in)
• HF Transducer: DH3-B 1.25-in titanium compression driver
• Crossover Frequency: 1600 Hz

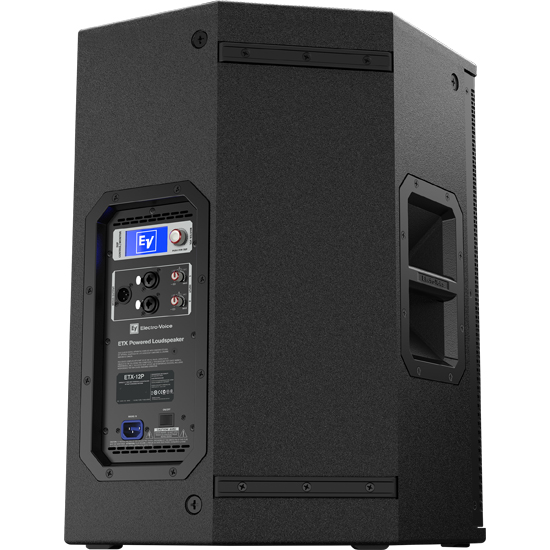

• Connector Type: (2) XLR/TRS combo jack and (1) XLR link output
• Enclosure Material: 18-mm, 13-ply birch plywood with EVCoat
• Grill: 16AWG steel with powdercoat
• Suspension: (8) M10 suspension points
• Height: 613 mm (24.13")
• Width: 381 mm (15")
• Depth: 400 mm (15.75")
• Weight: 23.6 kg (52.03 lbs)

The new ETX family builds upon the industry-leading innovation and 85-year heritage of Electro-Voice audio engineering to offer the most advanced professional portable powered loudspeakers available today. Inside each low-profile, tour-grade wood enclosure are a host of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.

Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
