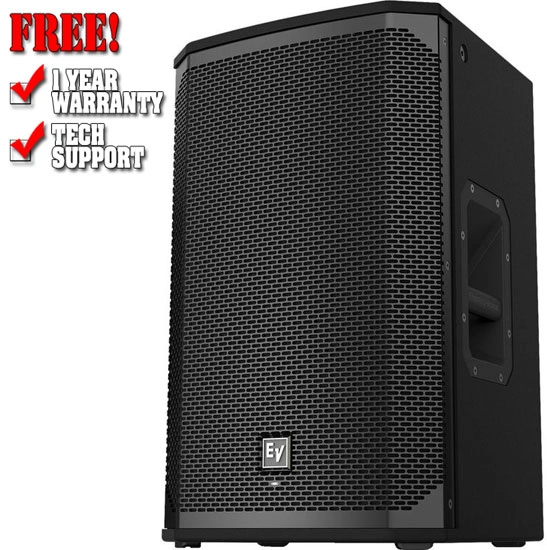

Electro Voice EKX12P 12-inch 2-way Powered Loudspeaker

• 12-Inch Two-Way Powered Loudspeaker
• QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
• High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
• EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

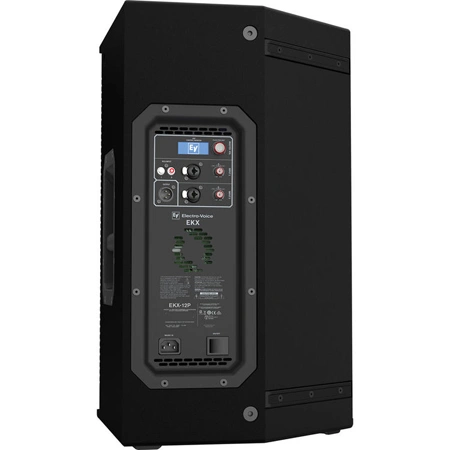

• Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
• Coverage (Nominal -6 dB) H 90°
• Coverage (Nominal -6 dB) V 60°
• Crossover Frequency 1.7 k Hz
• Enclosure Material 15 mm, plywood with EVCoat
• Frequency Response (-10 dB) 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset.
• Frequency Response (-3 dB) 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset.
• Grill 18 AWG steel with powdercoat
• HF Transducer DH-1M 1-inch titanium compression driver
• LF Transducer EVS-12M 300 mm (12 in)
• Maximum SPL 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
• Power Consumption 1.8 A Current rating is 1/8 power
• Power Rating 1500 W
• Shipping Weight 22.9 kg (50.49 lbs)
• Suspension (8) M10 threaded mounting points
• Height 14RU 607 mm (23.9")
• 375 mm (14.76")
• Depth 356 mm (14.02")
• Weight Net 18.8 kg (41.45 lbs)
