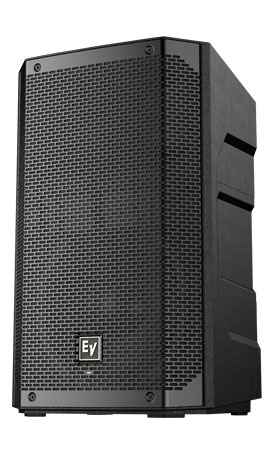

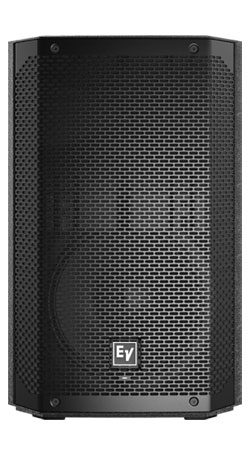

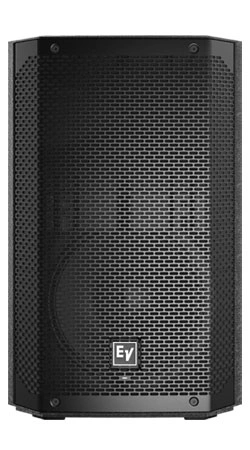

Electro Voice ELX200-10P

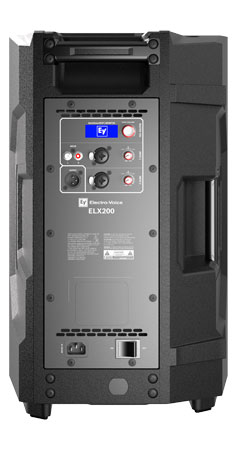

ELX200-10P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (10-inch EVS-10M woofer coupled with a DH-1C 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

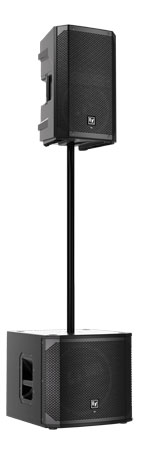

ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.

SPECIFICATIONS

• Available Color Black
• Connector Type (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
• Coverage (Nominal -6 dB) H 90 °
• Coverage (Nominal -6 dB) V 60 °
• Crossover Frequency 1800 Hz
• Depth 319 mm
• Enclosure Material Polypropylene Composite
• Family ELX200
• Frequency Range (-10 dB) 53 Hz - 20 kHz
• Frequency Response (-3 dB) 59 Hz -18 kHz Hz
• Grill 18 AWG steel with powdercoat
• Height 531 mm
• HF Transducer DH-1C 1-inch titanium compression driver
• LF Transducer EVS-10M 254 mm (10 in)
• . SPL/1m (calc) 130 dB
• Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.8A
• Power Rating 1200 W
• Powered or Passive Powered
• Shipping Weight 15.6 kg
• Speaker Type Full-Range
• Suspension (3) M10 suspension points
• Weight Net 13.5 kg
• Width 330 mm
• Woofer Size 10 inch

  What is the power output of the ELX200-10P?
A: The Electro-Voice ELX200-10P delivers 1200W Class-D power, providing high efficiency and strong output for professional applications.

  What is the maximum SPL?
A: It can reach up to 130 dB SPL, which is very loud for a compact 10-inch speaker.

  What size drivers does it use?
A:

• 10-inch EVS-10M woofer
• 1-inch titanium compression driver (DH-1L)

  Does it have Bluetooth?
A:

• It supports Bluetooth control via QuickSmart Mobile app (availability may vary by region).
• Note: Bluetooth is mainly for control/monitoring, not always audio streaming.

  Does it have a built-in mixer?
A: It includes basic DSP controls (not a full mixer):

• 3-band EQ
• Gain control
• Presets
• Limiter monitoring
