Marantz PMD-750

Wireless Camera-Mount System

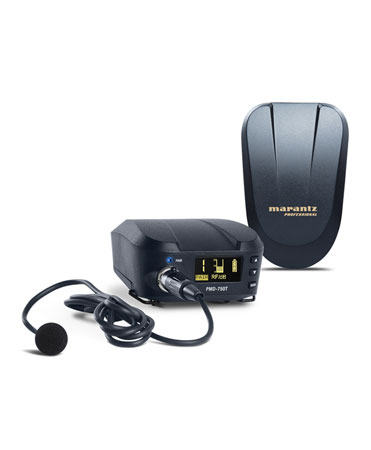

Designed for professional DSLR filmmakers, the PMD-750 Series Camera Mount Wireless System is compact and simple to operate. The lightweight build is perfect for camera and rig-mounting, but rugged enough for daily field use. The PMD-750 system includes everything needed to get up and running PMD-750T beltpack transmitter, PMD-750R camera-mount receiver, omnidirectional lavalier microphone with two styles of windscreens, and receiver output cable. The system also features locking 4-pin mini-XLR input and output jacks for secure connectivity, robust beltclip on the transmitter, and secure hot shoe mount on the receiver. The user interface is simple to use, and the OLED screens on the components are easily readable outdoors in sunlight. The apex of the feature list is the ability of the PMD-750R receiver to pair with two separate transmitters. The PMD-750TA plug-on transmitter for dynamic or battery-operated condenser wired microphones is available separately. The PMD-750T beltpack transmitter is also available as a separate item, ready to expand the PMD-750's versatility. The system is perfect for any type of DSLR shooting requiring remote microphones, such as interviews, special events, ENG, and corporate trainings.

The PMD-750 comes standard with file encryption ability to keep recordings safe from unauthorized access - offering the maximum security for sensitive information. This works by encrypting WAV files to WAS files. These encrypted files utilize a 4-digit password protection feature so that only those with the 4-digit key can open and play the files. To play encrypted files on a computer, use the DMP Mark Editor v2.0.0 software - available in the Downloads section.

Features

• Complete 2.4GHz portable wireless system
• Compact, innovative design
• PMD-750R receiver mounts to DSLR camera hot shoe
• PMD-750T beltpack transmitter with robust belt clip
• Receiver can pair to two transmitters for expandability
• System includes lavalier mic, foam & fuzzy windscreens, and receiver output cable
• Simple, easy to use user interface
• Locking 4-pin mini-XLR input and output jacks
• (2) AA battery operation
• PMD-750TA plug-on transmitter available separately
• Additional PMD-750T beltpack transmitter available separately

Specifications

Audio Performance

• Frequency Spectrum: 2.401 - 2.483 GHz
• Dynamic Range: > 100 dB
• THD: < 0.2 %, typical
• Latency: 4.5 m
• Operating Range: Up to 100' (31m)

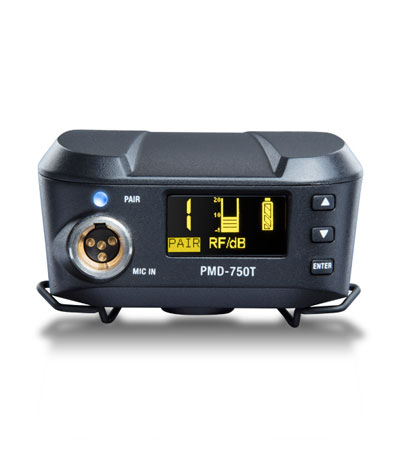

Beltpack Transmitter

• Frequency Response: 50 Hz - 18 kHz
• Maximum Input Level: -20 dB
• Bias Voltage: 5V (for condenser mics)
• Input Impedance: 10 kΩ
• Power: (2) AA alkaline batteries
• Dimensions (width x depth x height): 2.6" x 4.0" x 1.6" (65 x 102 x 40mm)
• Weight: 82g

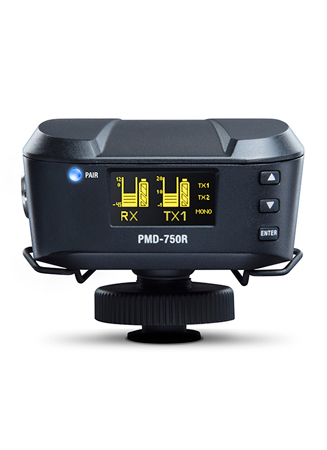

Receiver

• Frequency Response: 50 Hz - 18 kHz
• Pairing Bands: 16 channels
• Audio Quality: Uncompressed 96 kHz/24-bit
• Operating Temperature: 14° to 131° F (-10° to 55° C)
• Maximum Output Level: -12 dB
• Output Impedance: 300 Ω
• Power: (2) AA alkaline batteries
• Dimensions (width x depth x height): 2.6" x 4.0" x 2.2" (65 x 102 x 55mm)
• Weight: 90

Lavalier Microphone

• Frequency Response: 20 Hz - 20 kHz
• Output Impedance: 3 kΩ
• Pattern: Omnidirectional
• : Electret Condenser
• Sensitivity: -38 dB, ± 3 dB
• Equivalent Noise: 25 dBA
• Maximum SPL Level: 130 dB
• Dimensions: Cable length 41.3" (1050mm)
• Weight: 16g
