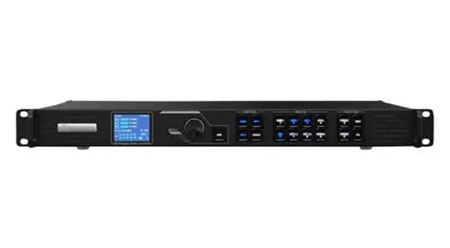

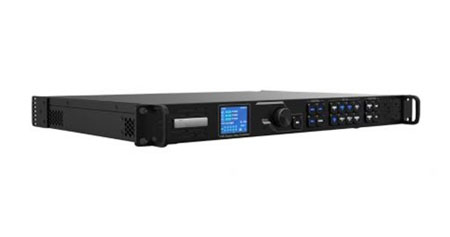

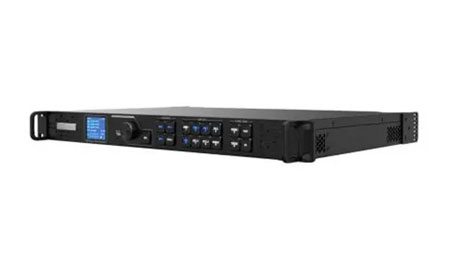

Chauvet Pro VIPDRIVE105NOVA

NovaStar Video Wall Protocol Switcher/Scaler/Driver

The VIP Drive 10-5 Nova is an all-in-one video processor that offers a streamlined solution for outputting signals to any NovaStar video panel. This integrated device features a 3-layer Scaler, supporting various scaling options, including full-screen, pixel-to-pixel, and custom scaling.

One of its standout features is the automatic scaling capability, which detects the video wall and connected panels and strips within the Smart-LCT mapping software. This eliminates the need for manual input of panel/strip resolutions. Additionally, the powerful standalone mapping functionality allows for the configuration of most video walls without requiring a computer. The custom mapping function is user-friendly and provides on-screen visual feedback for added convenience.

With 10 Ethernet video outputs, the VIP Drive 10-5 Nova can deliver support for 4K resolution at an impressive 6.55 million LED resolution, making it a versatile and high-performance video processing solution.

Chauvet Pro VIPDRIVE105NOVA Features:

• Video wall processor that outputs video signal to any NovaStar video panel
• Integrated 3-layer Scaler supports full screen, pixel to pixel, and custom scaling options
• Automatically scales to the wall detected
• Automatically detect connected video panels/strips in the Smart-LCT mapping software without the need to manually input panel/strip resolution
• Powerful standalone mapping configures most video walls without a computer
• Custom MAPPING function makes setting up your wall fast and easy with on-screen visual feedback
• Specialized on-screen mapping overlay makes mapping fast and easy by identifying the port and order of each video panel live, while video continue to play in the background.

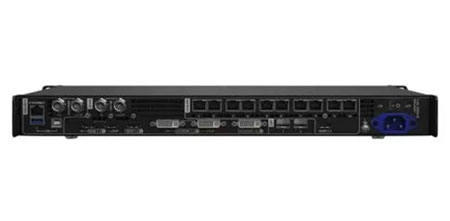

• 10 Ethernet video outputs support 4K at 6.55 million LED resolution
• Works with NovaLCT and Smart-LCT software for complex configurations and panel calibration
• Works with NovaLCT and Smart-LCT software for complex configurations and panel calibration
• Fiber SFP output for all 10 ports of the processor (primary and backup)
• 1 of the fiber SFP ports may be used as a direct video input
• Mode selection in menu allows the processor to function as a regular video controller to screen, a fiber converter to input fiber and output to your screen from another video controller, or in Bypass mode for automatic fault detection and backup from another primary video controller
• Genlock input and loop supports synchronizing multiple VIP processors and with your video source (switcher) to eliminate scan lines on camera.
• Mosaic function allows you to use multiple video inputs on the screen at the same time (2x DVI or 2x HDMI)
• Video backup settings allow you to designate backup video inputs for increased stability
• HDMI Video output enables previewing video sources and monitoring screen output locally
• Image Mosaic function supports synchronizing multiple VIP Drive 10-5 Nova processors, up to 32,768 x 32,768 total resolution
• Supports output LED screen refresh rate 23.98 - 120 Hz
• Low latency, 3D features supported in the drive
