American DJ AV4IP Video Panel System (12 Panels)

Overview

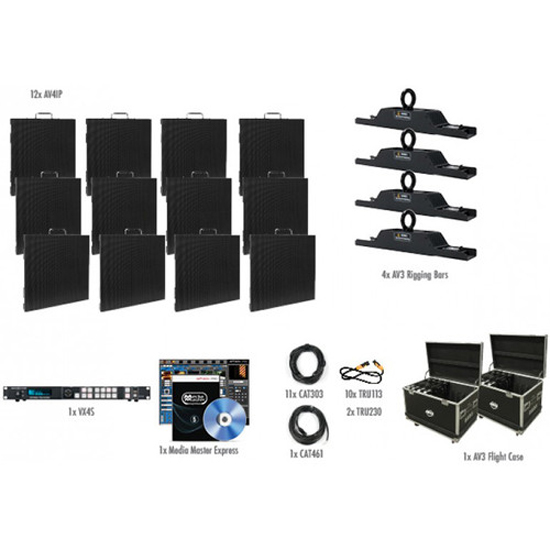

The AV4IP Video Panel System from American DJ is a kit which includes 12 AV4IP video panels, four AV3 rigging bars, 11 3' data cables, ten 3' IP65 Seetronic True 1 cables, one 50' processor to first panel standard connector cable, two 25' IP65 main power cables, one Novastar LED display controller and front end processor, two AV3 flight cases, and one copy of Media Master Express software.

The AV4IP video panel display is a high resolution, flexible video panel that features 4.81mm pixel pitch with a configuration of a 3-in-1 RGB SMD1921 LED. It also features two LED modules per panel and a 4000 cd/m² brightness. This kit includes the accessories that you need for indoor or outdoor use of the panels for stages, installation, or events.

American DJ AV4IP Outdoor Video Panel

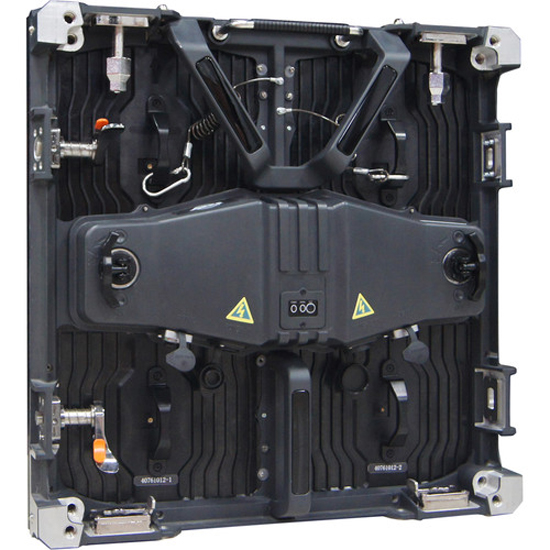

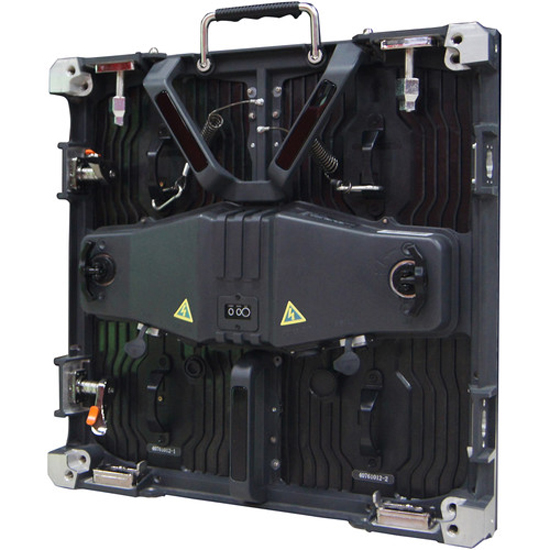

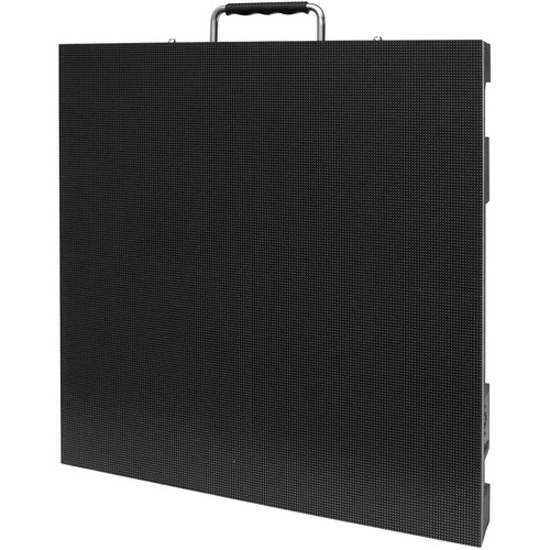

The AV4IP Outdoor Video Panel from American DJ offers a pixel pitch of 4.81mm with a configuration of 3-in-1 RGB LEDs. The panel features 4000 cd/m2 brightness and is IP65 outdoor rated. There are 2 LED modules per panel. Furthermore, the panel also features a Novastar receiving card. It includes True 1 powerCon input/output and etherCON input/output water-resistant connections.

American DJ AV4IP Outdoor Video Panel Features:

• 4.81mm pixel pitch high-resolution video panel
• IP65 rated
• SMD1921 3-in-1 RGB LEDs

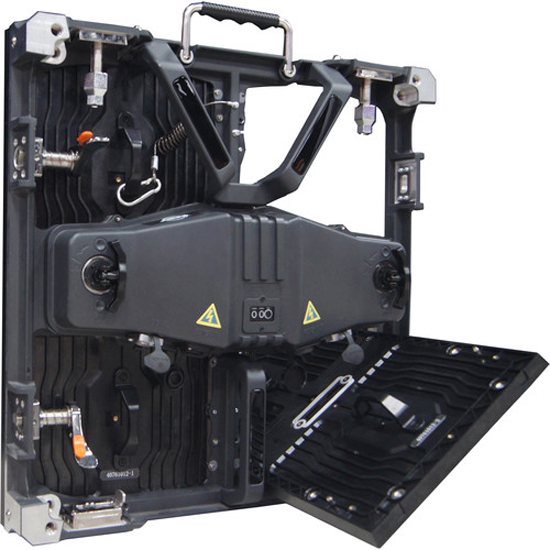

• Quick release power supply and receiving card module
• Includes True1 powerCON input & output and EtherCON input & output connections

Elation Professional NOVASTAR VX4S LED Display Video Controller & Front-End Processor (1 RU)

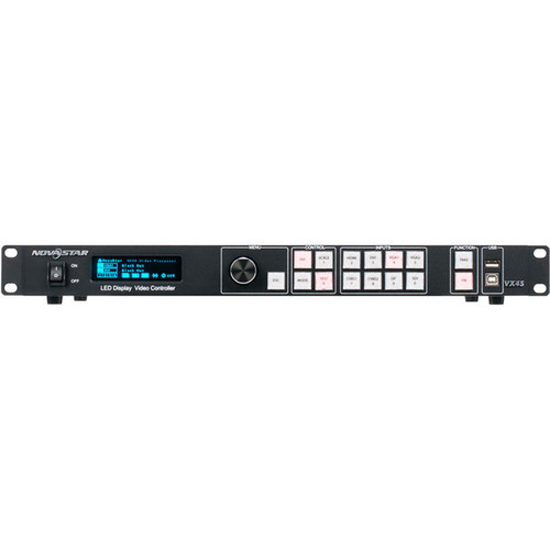

The 1 RU NOVASTAR VX4S from Elation Professional is an LED display controller and a powerful front-end processor that supports multiple signal formats including DisplayPort, HDMI, VGA, DVI, CVBS, SDI, and up to 1920 x 1200p resolution. This controller features four RJ45 outputs for up to 2.6 million pixels of LED control, and it supports Nova's new generation point-by-point correction technology. NOVASTAR VX4S is compatible with all of Elation's current video products.

• User friendly LED display controller
• Powerful front-end processor
• Multiple video signal format support
• New generation point-by-point correction technology
• Cascade multiple units together via USB
• Rack mountable aluminum enclosure (screws sold separately)

American DJ AV4IP Outdoor Video Panel Specfications:

• Display
  • Resolution : 52 x 104
  • Supported Display Resolutions Maximum : 1920 x 1280, Minimum: 1024 x 768
  • Brightness : 4000 cd/m2
  • Viewing Angle (H x V) : 140 x 140°
  • Dot Pitch : 4.8 x 4.8 mm
• Connectivity
  • Input Ports
    • 1 x RCA Composite Video
    • 1 x S-Video Video
    • 1 x RCA Component Video
    • 1 x 15-Pin VGA Video
    • 1 x DVI-I Video
    • 1 x HDMI Audio, Video
    • 1 x SDI Video
• General
  • Lighting Lifespan 50,000 Hours
• Electrical
  • Power Consumption : Maximum: 180.0 W, Typical: 60.0 W
  • AC Input Power : 100 to 240 VAC, 50 / 60 Hz
• Environmental
  • Operating Temperature : 14 to 122°F / -10 to 50°C
  • Operating Humidity : 10 to 90%
• Physical
  • IP Rating : IP65
  • Dimensions : 19.7 x 19.7 x 4.0" / 50.0 x 50.0 x 10.2 cm (Panel), 9.8 x 19.7" / 25.0 x 50.0 cm (Module)
  • Weight : 20 lb / 9.1 kg

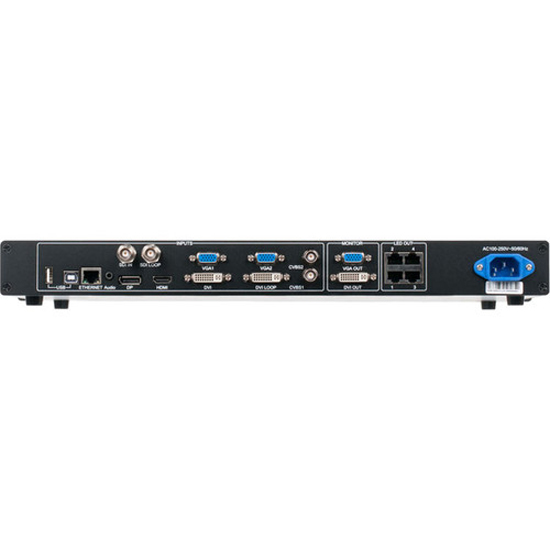

Elation Professional NOVASTAR VX4S LED Display Video Controller & Front-End Processor (1 RU) Specifications

• Material : Aluminum
• Ethernet
  • 1 x RJ45 LAN for IP based control
  • 4 x RJ45 outputs for up to 2.6 million pixels of LED control
• USB
  • 2 x USB Type-A ports
  • 2 x USB Type-B ports (one set on each side)
• Audio : 1 x 1/8" (3.5 mm) input
• Video Inputs
  • 1 x DisplayPort
  • 1 x HDMI port
  • 2 x VGA ports
  • 1 x DVI port
  • 2 x CVBS port
  • 1 x SDI port
• Video Outputs
  • 1 x DVI loop
  • 1 x DVI port
  • 1 x VGA port
  • 1 x SDI loop
• Power Connector : 1 x Locking IEC power input
• Power : 100-240 VAC, 50/60 Hz, 0.65 A
• Max Power Consumption : 16 W
• Dimensions : 19.0 x 10.8 x 1.8" / 48.3 x 27.5 x 4.5 cm
• Weight : 5.6 lb / 2.55 kg
