ADJ AV3 7X4-Touring Indoor 15 LED Panel Video System

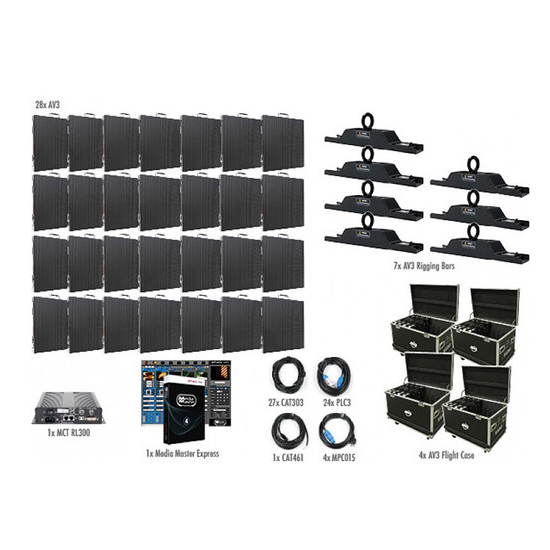

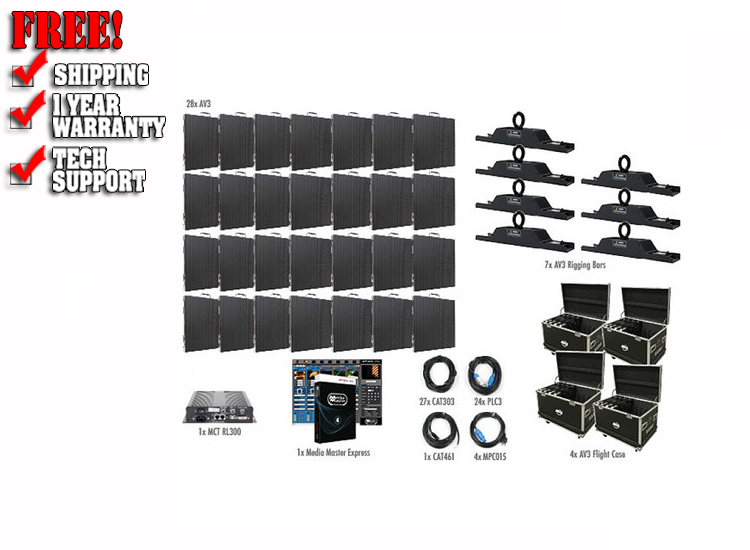

Includes:

• 28 x AV3 (8.2' x 4.92')
• 7 x AV3 Rigging Bar
• 27 x CAT303
• 24 x PLC3
• 1 x CAT461
• 2 x MPC015
• 1 x MCT RL300
• 2 x AV3 Flight Case
• 1 x Media Master Express

Specifications:

• Pixel Pitch: 3.91mm (0.25")
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128X128; 65536 per square meter
• Size :19.75" x 19.75" x 4" / 500 x 500 x 100mm
• Outer Dimensions: 6.56' x 3.28'
• Module Quantity: 2
• Weight: 20 lbs. / 9kg.

MECHANICAL RATINGS::

• Surface Flatness: Gaps<0.5mm

OPITCAL RATINGS:

• Brightness: 1000 NITS
• View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)
• Gray Scale / Display Color: 14-bit
• Brightness Adjustment: 0~100% 100 Levels
• Processing: 14-bit

POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 70W/per panel
• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/16
• Refresh Rate: 1920Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:

• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: ETL, CE, FCC Class A

OPTIONAL ACCESSORIES:

• AV3FC (AV3095): Flight Case-fits 8 AV6 Video Walls
• AV3RB1 (AV3070): Rigging Bar-Connect up to 15 AV3 Video Panels
• AV3FWA (AV3111): Rear Support Bracket
• Novastar VX4S: Video Processor
• Novastar MCTRL-300: Video Processor
• Media Master Express 4: Video Software
• GrandVJ 2.0: Video Software

CABLES:

• Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors)
• MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors)
• VX4S Processor to Cabinet (NEUTRIK Ethercon Connectors)
• NOVA PRO HD Processor to Cabinet (NEUTRIK Ethercon Connectors)
• NEUTRIK powerCON Link Cables
• NEUTRIK powerCON Main Power Cables
• ETL Approved
