Reloop AMS-TURN-5 Direct Drive Hi-Fi Turntable

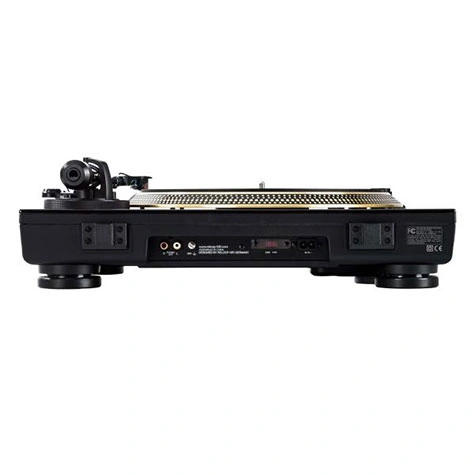

The universal locking mechanism (SME) on the tonearm allows for a quick and easy headshell exchange. Also, with the supplied counterweight a whole range of cartridges can be used as this also supports heavier pick-ups. On the rear panel of the TURN5 is a gold-plated phono output pair (RCA) with a separate earth connection to prevent any potential interference. The terminal for all cable connections has been recessed to protect them as much as possible. For a simple exchange, the power cable and the RCA cable can be removed.

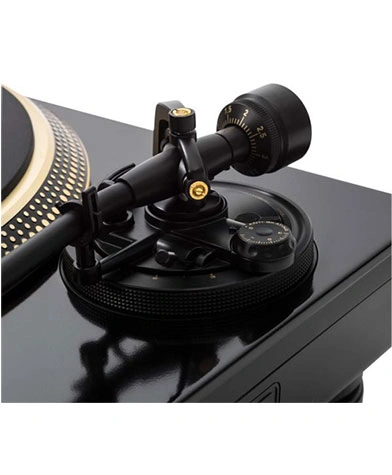

The TURN5 uses a statically balanced S-shape tone arm. This is supplied, along with the hydraulic lift and an anti-skating setting, with a convenient tone arm height adjustment with locking VTA. This guarantees optimum performance of the cartridge and an accurate reproduction of the recording medium. The supplied Ortofon 2M Red cartridge is already pre-mounted on a headshell and stands out thanks to its elliptical cut with phenomenal sound quality. The housing is built on a heavy-duty metal construction with shock-absorbing feet in order to isolate unwanted vibrations as much as possible and reduce ambient noise. The combination of several materials provides additional stiffness to the housing. With its deep black piano finish, visually the TURN5 is elegant and timeless. The gold-plated turntable hovers harmoniously above the cover plate and focuses the view on the important thing - the record.

Reloop AMS-TURN-5 Features:

• Quartz-Controlled HiFi turntable with high torque.
• Brushless Direct Drive DC Motor.
• Precision machined Die-Cast Aluminum Turntable Platter for a perfectly balanced rotation.
• Deadening Rubber covering rear platter surface & special 5mm rubber mat for optimized resonance control and damping.
• Static-balanced S shaped tonearm with VTA adjustment.
• Adjustable anti-skating dial for improved cartridge tracking.

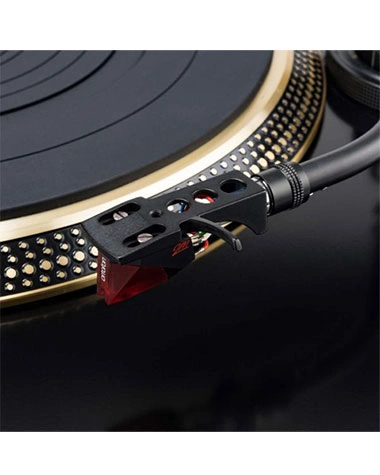

• Pre-installed Ortofon 2M Red cartridge.
• Integrated motor control selector for conveniently selecting three different speeds (33, 45 and 78 RPM.)
• Universal headshell connector (SME) provides added flexibility.
• High Quality Phono outputs (with separate grounding connection.)
• Gold-plated, corrosion resistant audio outputs (power and RCA cables detachable.)
• Sunk-in terminal cavity for protected connection.
• Especially heavy metal construction, rigid cabinet design and Shock-resistant feet for effective decoupling.
• Supplied counterweight supports a wide variety of cartridges.
• Elegant design with deep black Piano Finish and a fully gold anodised Platter.

Reloop AMS-TURN-5 Product Specifications:

Turntable Section:

• Type: Direct Drive Manual Turntable System
• Drive: Quartz driven upper-torque direct drive
• Motor: 16 pole, 3 phase, brushless DC motor
• Turntable Speeds: 3 speeds, fully manual (33 1/3, 45, 78 rpm)
• Starting Torque: 4500 g/cm
• Start-up time / rpm change: less than 0.2 sec.
• Wow and flutter: 0.01% WRMS
• S/N Ratio: More than 55 dB (DIN-B)
• Brake system: electronic brake
• Record weight: recommended 800g

Turntable Platter:

• Material: aluminium die-cast
• Diameter: 332 mm
• Weight: About 1.8 kg (including rubber mat)

Tonearm Section:

• Type: Universal Static Balanced S-Shaped
• Effective Length: 230 mm
• Overhang: 15 mm
• Tracking Error Angle: Less than 3 degree
• Offset Angle: 22°
• Stylus Pressure: 0 - 4 g
• Adjustable Tonearm Base (VTA): 0-6 mm
• Applicable Cartridge Weight: 3.5~8.5 g (including headshell is 13~18 g)
• Anti-Skating Range: 0 - 3 g
• Effective tonearm mass: 20 g (including headshell)

Terminals:

• 1x PHONO Out (gold-plated), 1x GND Earth Terminal

General:

• Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
• Power Consumption: 9 W
• Dimensions: 458 (W) x 368.3 (D) x 162.4 (H) mm
• Weight: approx. 12.8 kg

What's In The Box

Each AMS-TURN-5 Retail Box Includes:

• (1) Reloop AMS-TURN-5 Direct Drive Hi-Fi Turntable System
• (1) Turntable Platter
• (1) Dust Cover
• (2) Dustcover hinges
• (1) Balance Counter Weight
• (1) PHONO RCA Cable with earth lead
• (1) AC power supply cord
• (1) Rubber Mat
• (1) Instruction Manual
• (1) Ortofon 2M Red cartridge
• (1) Headshell

1. What type of drive system does the Reloop AMS-TURN-5 use?
The Reloop AMS-TURN-5 features a quartz-controlled direct-drive motor with a 16-pole, 3-phase brushless DC motor, delivering exceptional speed accuracy, low wow and flutter, and reliable long-term performance.

2. Does the Reloop AMS-TURN-5 include a cartridge?
Yes. The turntable comes pre-installed with the Ortofon 2M Red moving magnet (MM) cartridge, allowing you to enjoy high-quality vinyl playback right out of the box.

3. What record speeds are supported?
The TURN-5 supports 33⅓ RPM, 45 RPM, and 78 RPM, making it compatible with LPs, singles, and compatible shellac records when using an appropriate stylus.

4. Does the TURN-5 have a built-in phono preamp?
No. The Reloop AMS-TURN-5 provides gold-plated PHONO outputs and a ground terminal, so it requires an external phono preamp or an amplifier/receiver with a dedicated phono input.

5. Can the cartridge be upgraded?
Yes. The universal SME-compatible removable headshell allows you to easily swap or upgrade cartridges to suit your listening preferences.

6. Is the tonearm adjustable?
Yes. The static-balanced S-shaped tonearm includes adjustable Vertical Tracking Angle (VTA), anti-skating, and tracking force, allowing precise cartridge alignment and optimized playback.

<
