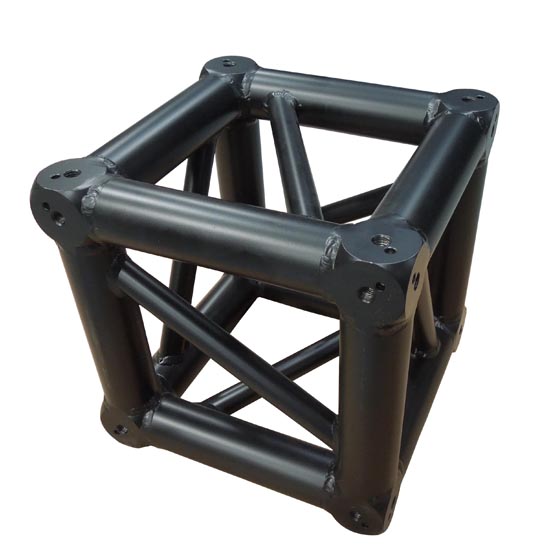

ProX XT-JB6W-4W-BLK 6 Way F34 Corner Block W/16 4 Way Half-Conical Couplers Black Powder Coated | 3mm Wall

The ProX XT-JB6W-4W-BLK 6 Way Square Truss Junction Box | 3mm Wall is a universal connecting point for F34 trusses, and it's equipped with connecting hardware for use with ProX XT F34 square truss components. It features 2" outer diameter tubing and 3/4" diagonal bracing. It has XT Series 3mm thick tube walls, this truss junction block is strong and can be used for many applications. It is built to the highest standards of safety and performance. Finished in Powder Coated Black

Powder coating provides a stronger finish that is more resistant to damage than paint! Using a black powder coat truss is an effective way to add character to your truss designs. Powder-coated black aluminum ProX truss products provide an extra element that will help to personalize your truss display. Powder-coated finishes provide durability that reduces the risk of scratches, chipping, abrasions, corrosion, fading, and other wear issues.

The ProX Conical Coupling System allows for genderless trusses, providing a more precise line up of chords and fastening points, while the conical shape of the couplers helps maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly/disassembly quick and easy, all you need is a small brass or aluminum hammer.

Features:

• SKU : XT-JB6W-4W-BLK
• Material: EN-AWT6 6082 Aluminum
• TUV Certified Aluminium Welding
• Black Powder Coated
• Tolerance Free Conical Connector System
• Main tube wall thickness of .08in (2mm)
• ProX Heavy Duty Connector Sockets

XT-SQ SERIES DIMENSIONS:

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9,5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness:  .11in / 3mm
• Braces: .75in / 20mm

Specification

• Exterior Dimensions & Weight : Box 1 of 1: 12.50"H x 12.50"W x 12.50"L - Shipping Weight: 18.00 lbs
