ProX XT-BT12PVTBLK

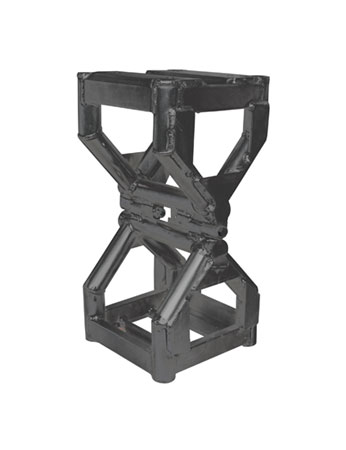

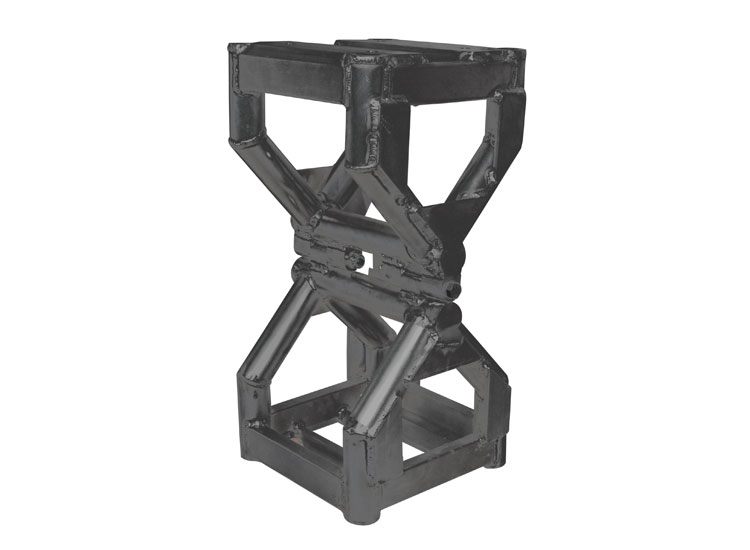

ProX Center Pivot Hinge Bolted Truss variable corner Articulating Block

The ProX XT-BT12PVT BLK Center Pivot Hinge horizontal variable corner Articulating Block from the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

It adjusts from 0° to 180° and fits ProX 12" BoltX™ Bolted Truss Segments. Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup! This product can provide a universal solution for truss angles. There is a built-in adjustable arm to lock the desired angle between sections of truss for unique builds. The superior construction quality of ProX trussing products guarantees many years of trouble-free use.

*ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.

Features

ProX Live Performance Gear® recommends that you engage the services of a licensed engineering professional for complex loading configurations and/or conditions.

• 12" H x 12" W Professional Box Truss W/Bolt Connection.
• Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
• Load Tested & Inspected During Manufacturing and Quality Control
• Includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
• Compatible with most other 12" Professional Box Truss Manufacturers
• Outer Tube Diameter of 2", Wall Thickness 3mm (1/8"), Diagonal 1", Wall of 3mm (1/8"),
• Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
• Black Powder Coated Finish

Specification

• Shipping Dimensions & Weight: Box 1 of 1: 13.00"H x 15.00"W x 26.00"L - Shipping Weight: 32.00 lbs
