ProX XT-BT1206BLK

ProX XT-BT1206BLK 6Ft. BoltX Black Bolted 12 Inch Professional Box Truss Segment | 3mm Wall - Black Finish

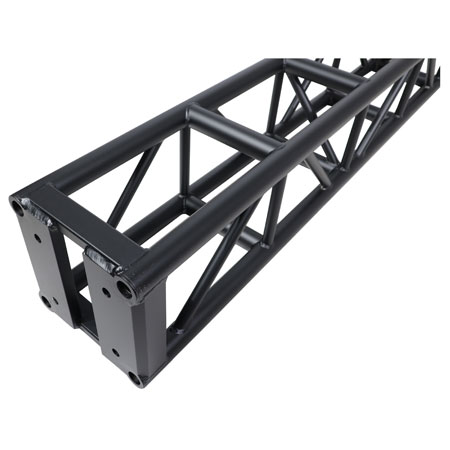

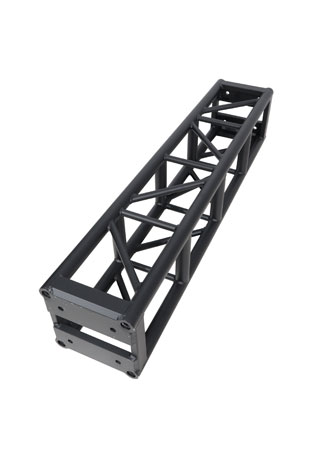

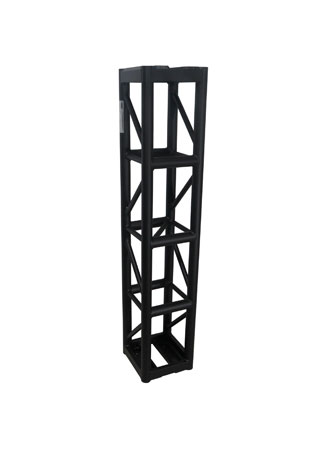

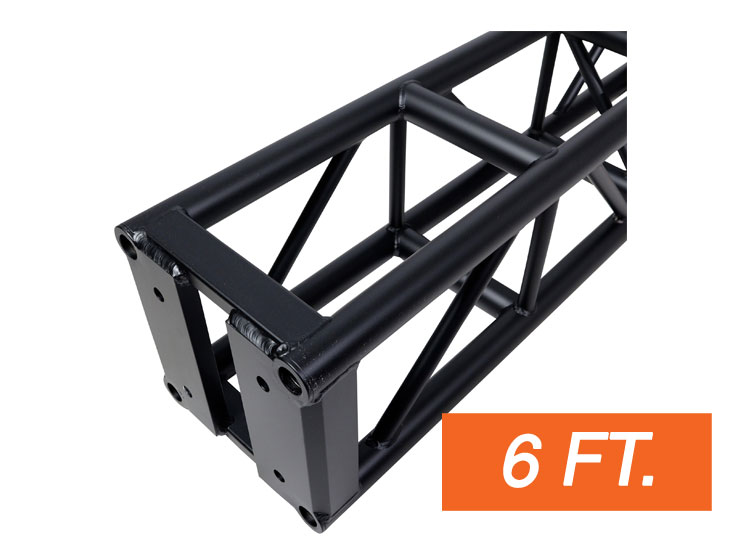

ProX XT-BT1206 BLK BoltX™ Professional Box Truss is designed and engineered for high quality and for many applications like stage lighting, concerts, Ninja Obstacle Course type construction, and similar uses. Setting ourselves apart from other box truss manufacturers BoltX™ has an innovative end plate designed and manufactured with heavy-duty aluminum material, welded on both sides, and our exclusive circular rings at each corner of the truss to reduce or eliminate damage to the main chord ends. Since box trussing is often dropped or is dragged along concrete floors, this design will substantially lessen the need for expensive repairs to the tubes from the mishandling of the truss sections. Our outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups.

Compatible with most other 12" Professional Box Truss Manufacturers utilizing 6.75" bolt center pattern.

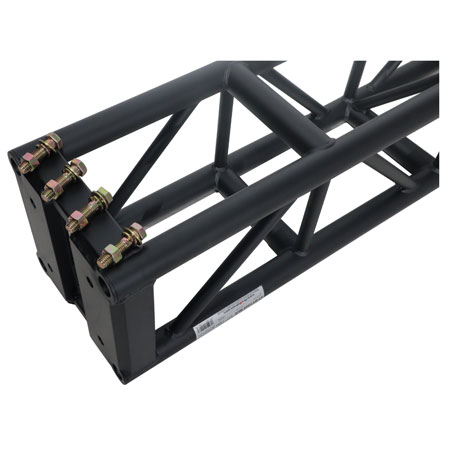

Each section of truss includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.

Features

ProX Live Performance Gear® recommends that you engage the services of a licensed engineering professional for complex loading configurations and/or conditions.

• 12" H x 12" W Professional Box Truss W/Bolt Connection.
• Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
• Load Tested & Inspected During Manufacturing and Quality Control
• Includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
• Compatible with most other 12" Professional Box Truss Manufacturers
• Outer Tube Diameter of 2", Wall Thickness 3mm (1/8"), Diagonal 1", Wall of 3mm (1/8"),
• Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
• Weight: 62 Lbs.
• Finish: Black Coated aluminum

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX BoltX™ Truss products utilize industry standard dimensions to be compatible to connect to/ and work with many other manufacturers 12 In. Bolted Box trussing products.

Specification

• Exterior Dimensions & Weight: 12.00"H x 12.00"W x 72.00"L - Weight: 49.00 lbs
• Shipping Dimensions & Weight: Box 1 of 1: 13.00"H x 13.00"W x 73.00"L - Shipping Weight: 55.00 lbs
