ProX XT-BT12-6WBLK

ProX XT-BT12-6WBLK BoltX 6-Way Block Bolted Professional Box Truss - Black Finish

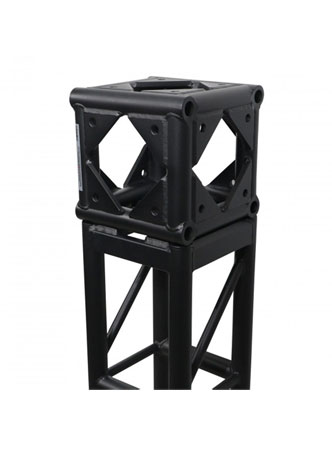

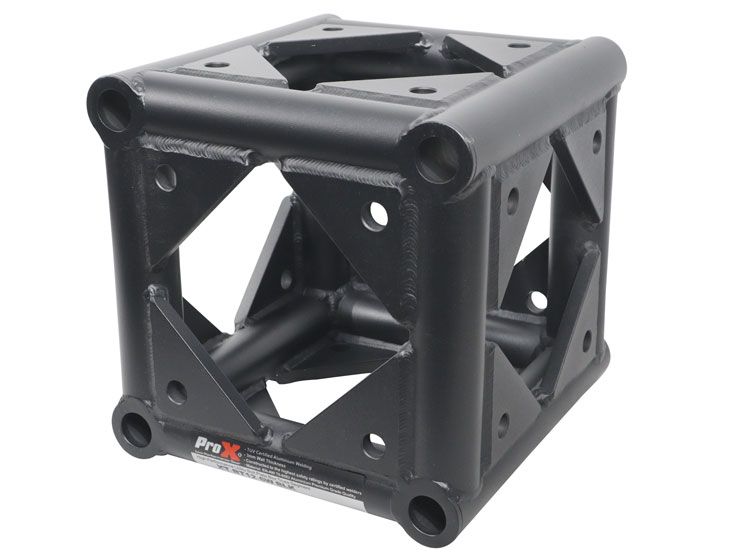

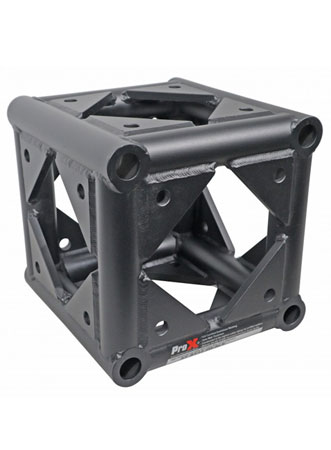

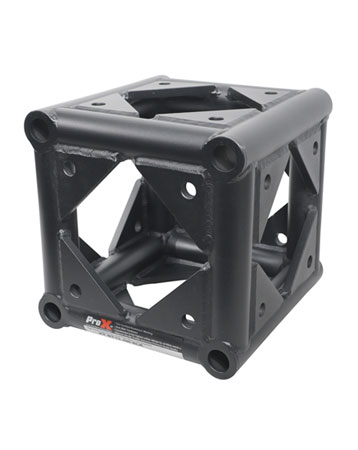

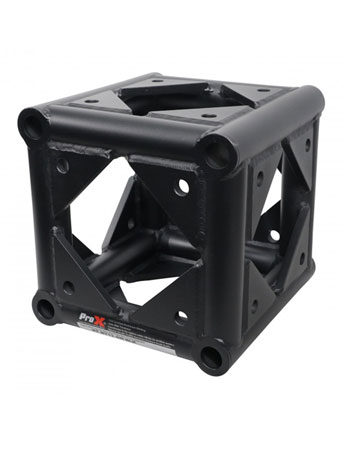

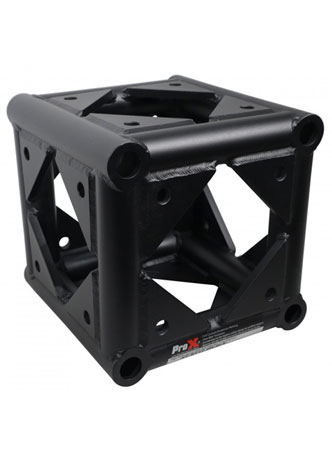

ProX XT-BT12-6W BLK BoltX™ 6-Way Block, Professional Box Truss is designed and engineered for many applications like stage lighting, concerts, Ninja Obstacle Course type construction, and similar uses. Setting ourselves apart from other box truss manufacturers BoltX™ has an innovative end plate designed and manufactured with heavy-duty aluminum material, welded on both sides, and our exclusive circular rings at each corner of the truss to reduce or eliminate damage to the main chord ends. Our outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups. This segment has a stealth black powder-coated finish for hiding cables and lighting, it also has a flat anti-glare look.

Compatible with most other 12" Professional Box Truss Manufacturers utilizing a 6.75" bolt center pattern.

Each 6 Way Block includes Four sets of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers. (Total of 16 Bolts nuts and washers)

Features

ProX Live Performance Gear® recommends that you engage the services of a licensed engineering professional for complex loading configurations and/or conditions.

• Welded Plates
• Black Powder Coated Finish
• 12" x 12" x 12" Professional 6 Way Block W/Bolt Connection.
• Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
• Load Tested & Inspected During Manufacturing and Quality Control
• Includes Four sets of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
• Compatible with most other 12" Professional Box Truss Manufacturers
• Outer Tube Diameter of 2", Wall Thickness 3mm (1/8"), Diagonal 1", Wall of 3mm (1/8"),
• Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX BoltX™ Truss products utilize industry standard dimensions to be compatible to connect to/ and work with many other manufacturers 12 In. Bolted Box trussing products.

Specification

• Exterior Dimensions & Weight: 12.00"H x 12.00"W x 12.00"L - Weight: 21.00 lbs
• Shipping Dimensions & Weight: Box 1 of 1: 13.00"H x 13.00"W x 13.00"L - Shipping Weight: 22.00 lbs
