ProX XT-TOPCM

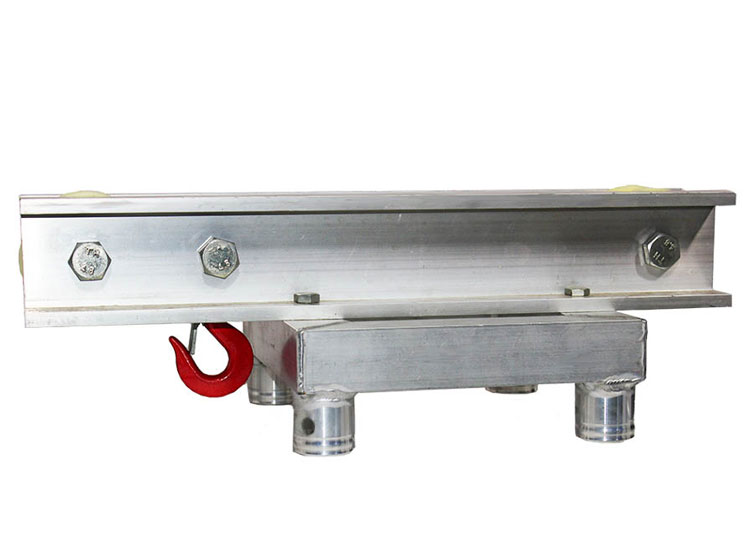

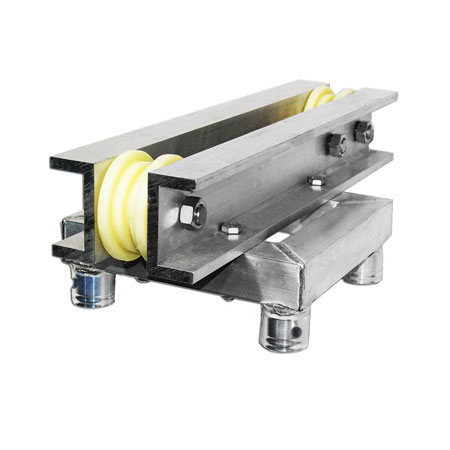

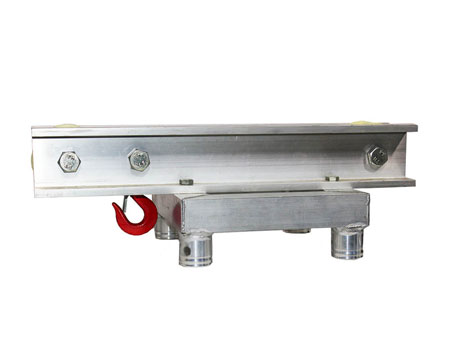

ProX XT-TOPCM Top Truss Section for Electric Motor or Manual Chain Hoist

The ProX XT-TOPCM Top Section fits F34 Series 12" and is designed for Electric Motor or Manual Chain Hoist up to 1 tons.

ProX Truss has the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm

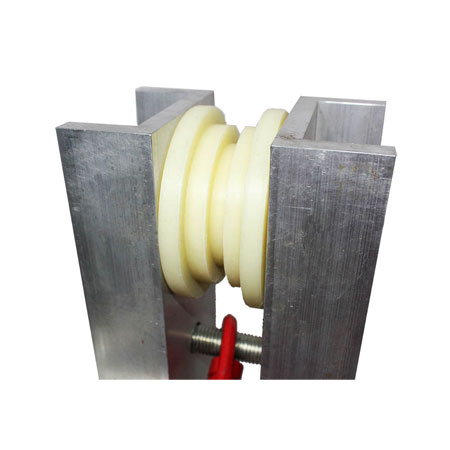

Pulley Wiring Width: 0.25"
Hook Size: 1.5"

Includes connecting hardware set.

ProX Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers trussing.

COUPLER'S AND PINS ARE NOT INCLUDED W/ XT-TOPCM

Features

Manufactured in our Own Factory!
Material: 10mm EN-AWT6 6082 Aluminum
Includes padded fabric storage and carrying bag
TUV Certified Manufacturing
Fits most manufacturers with F34 Conical Couplers

TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

Specification

Exterior Dimensions & Weight: 11.50"H x 9.50"W x 24.00"L - Weight: 26.40 lbs
Shipping Dimensions & Weight: Box 1 of 1: 12.00"H x 10.00"W x 25.00"L - Shipping Weight: 28.00 lbs
