ProX XT-BLOCK-BLK

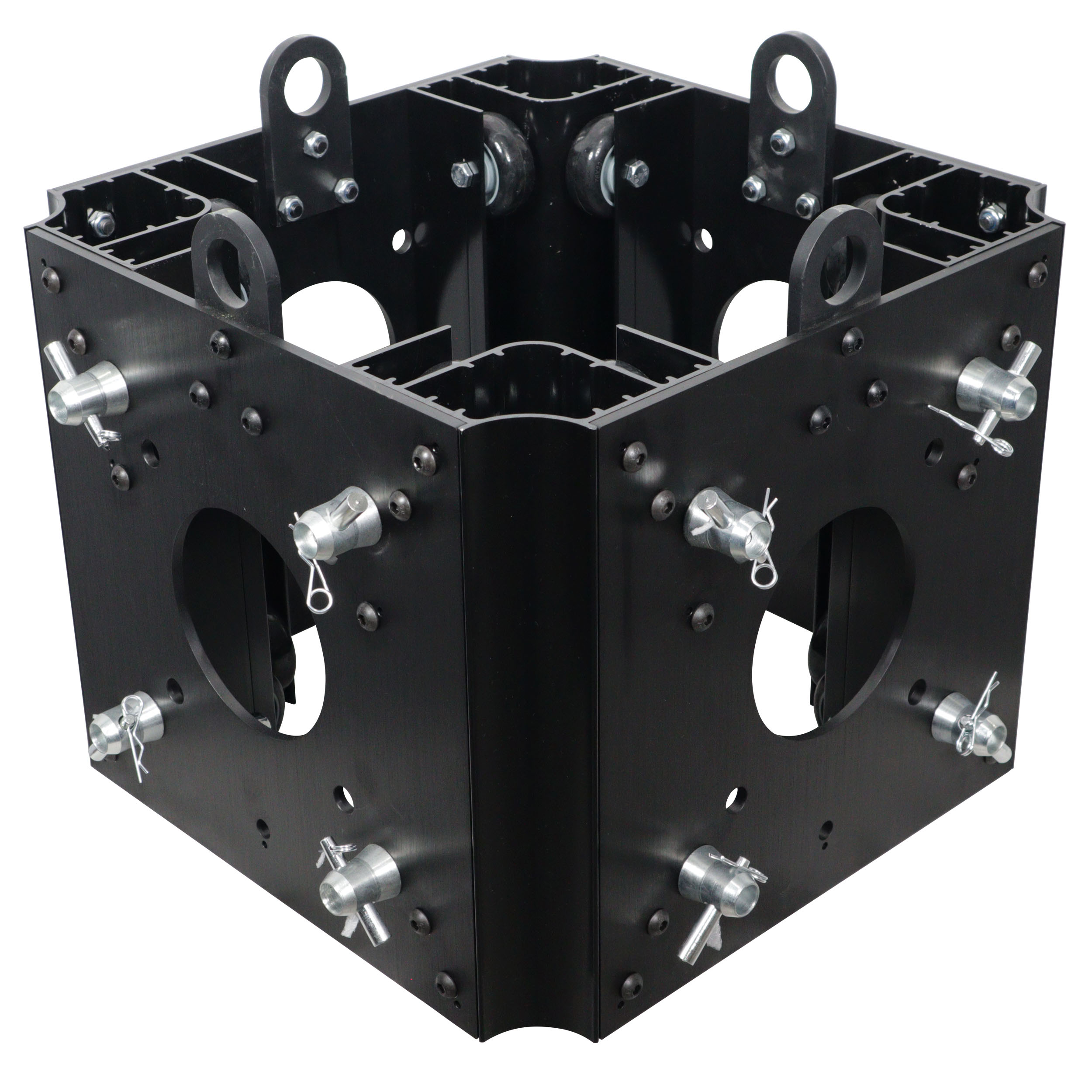

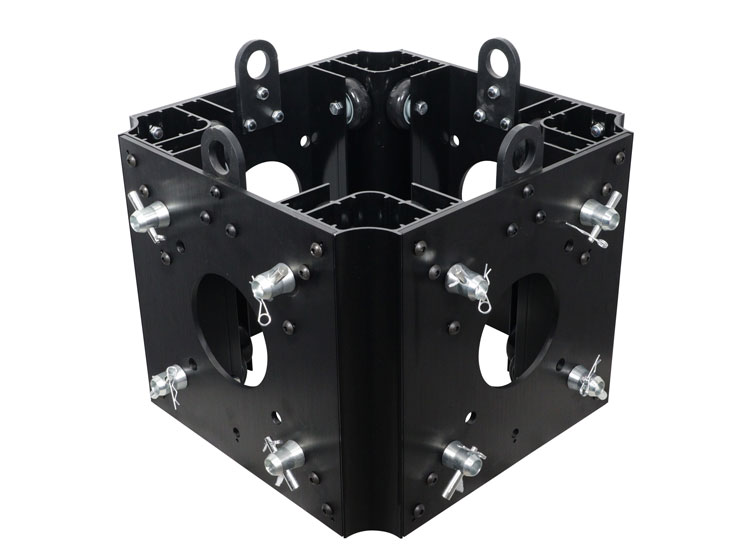

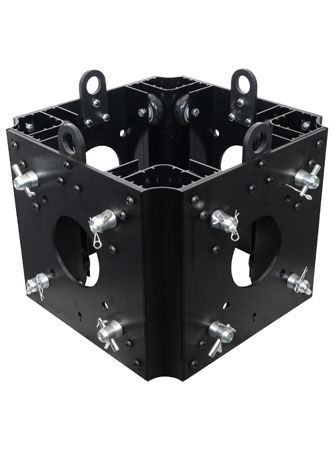

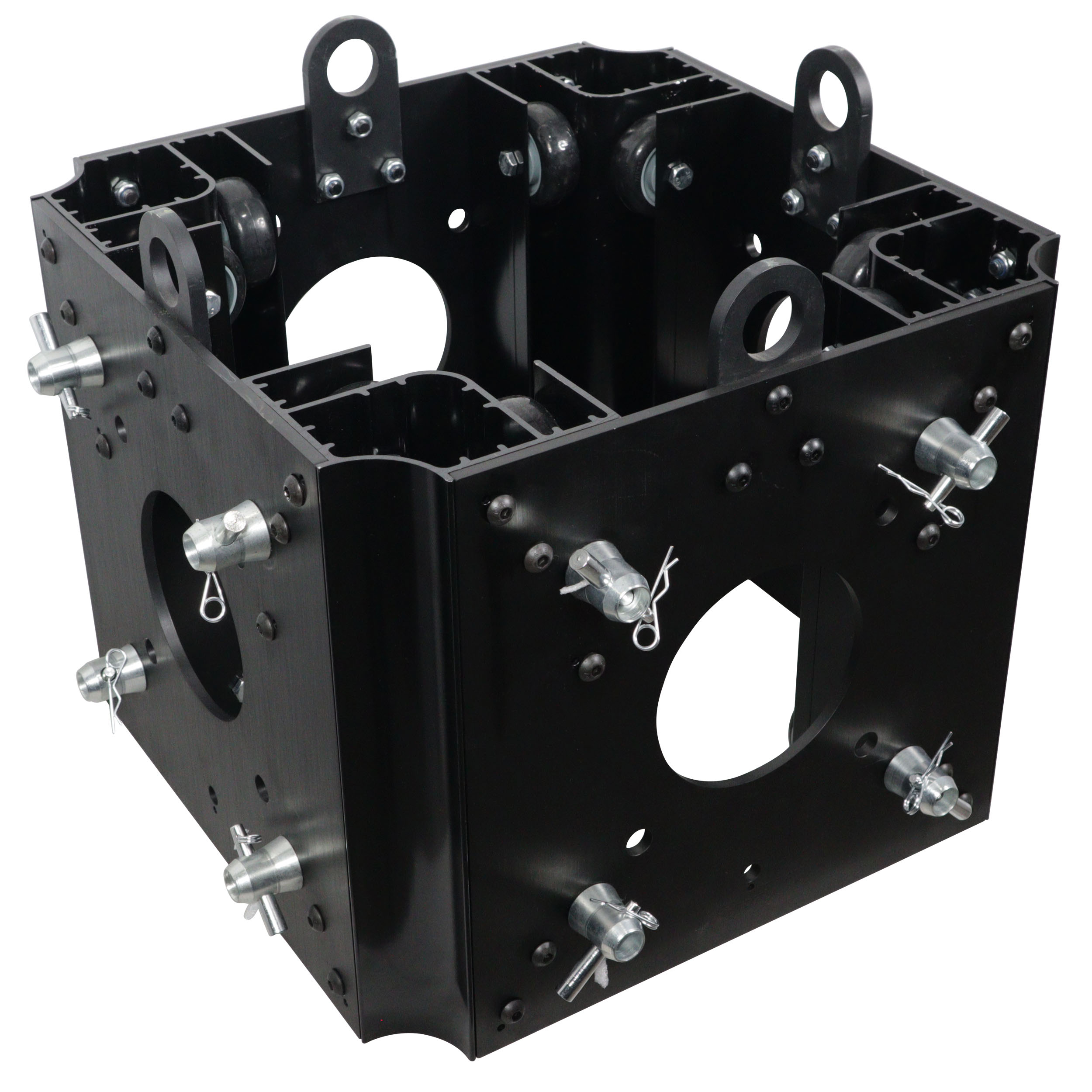

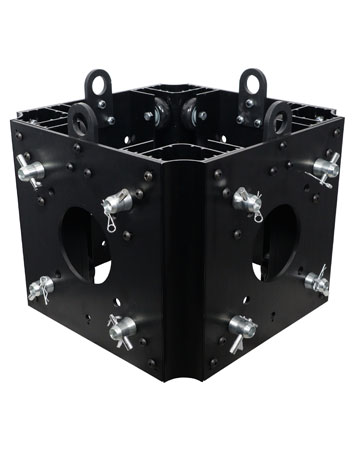

ProX XT-BLOCK-BLK Ground Support Sleeve Block for F34 Truss Systems Black Finish

The ProX XT-BLOCK BLK Truss Ground Support Sleeve Block is designed for F34 Series 12" Trussing and it includes 4 connecting sides and is one the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations. ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength. Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs -- while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors and accessories that add stability while expanding on limitless design configurations.

Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.

• Tolerance Free Standard Conical connector
• Main tube wall thickness of .08in

XT-SQ SERIES DIMENSIONS:

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9,5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness: .08in / 2mm
• Braces: .75in / 20mm
• Top Loop Size: 1.75"

Features

• Manufactured in our Own Factory!
• Material: EN-AWT6 6082 Aluminum
• TUV Certified Aluminium Welding
• Built to exacting specifications
• Includes tapered shear pins with clips

TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

Specification

• Exterior Dimensions & Weight: 18.00"H x 23.00"W x 23.00"L - Weight: 74.00 lbs
• Shipping Dimensions & Weight: Box 1 of 1: 20.00"H x 24.50"W x 24.50"L - Shipping Weight: 82.00 lbs
• Suggested Shipping Method: Parcel
